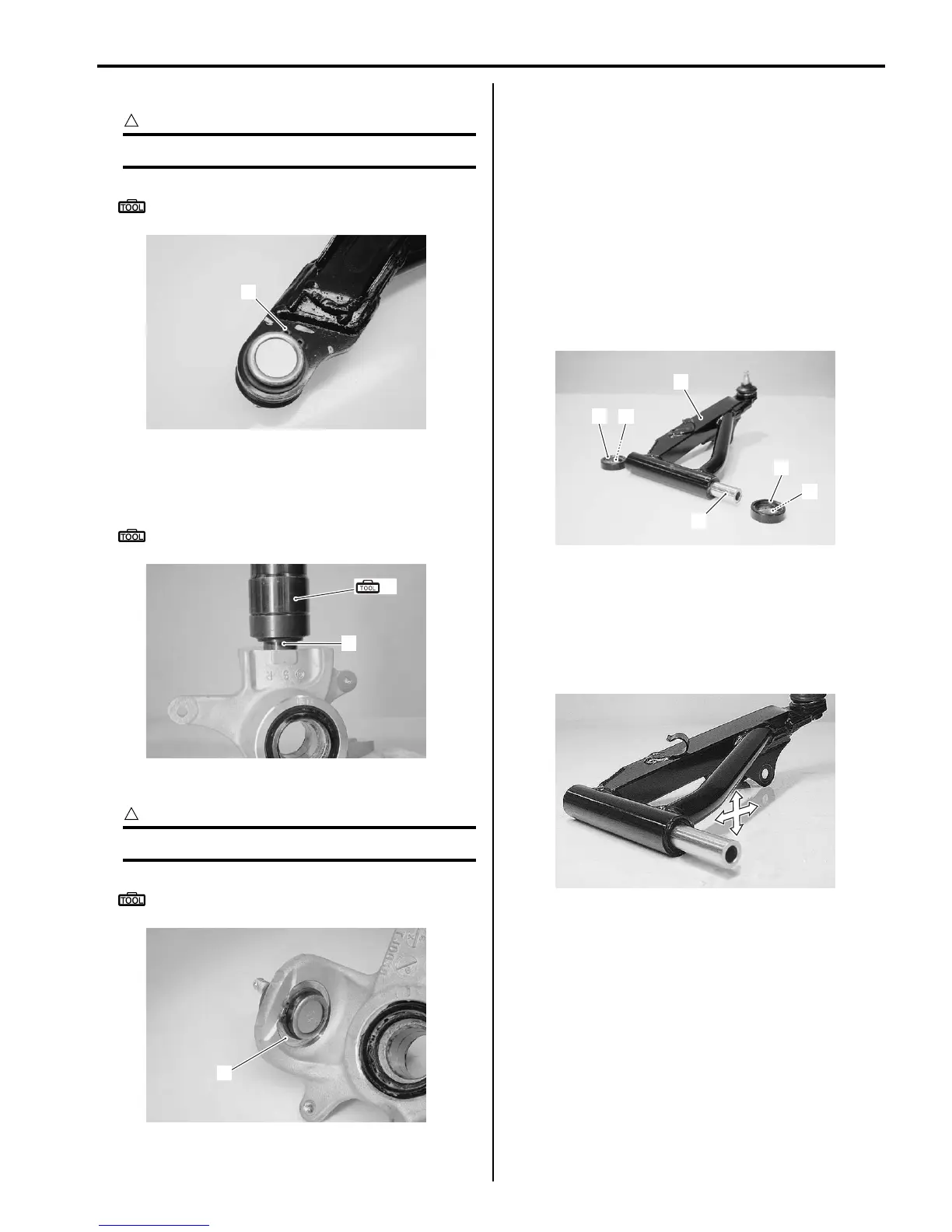

Front Suspension: 2B-12
• Install the snap ring (2) with the special tool.
CAUTION
!
Replace the snap ring (2) with a new one.
Special tool
: 09900–06107 (Snap ring pliers)
Lower
• Install the knuckle end (1) with the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
• Install the snap ring (2) with the special tool.
CAUTION
!
Replace the snap ring (2) with a new one.
Special tool
: 09900–06107 (Snap ring pliers)
Front Suspension Arm Related Parts Inspection
B831G22206013
Refer to “Front Suspension Upper / Lower Arm Removal
and Installation (Page 2B-9)”.
Upper arm
1) Inspect the following parts for wear or damage. If any
defects are found, replace defective parts with new
ones.
• Upper arm (1)
• Dust seal (2)
• Washer (3)
• Spacer (4)
2) Insert the spacer into bushings.
3) Check the play by moving the spacer up and down. If
excessive play is noted, replace the bushing with a
new one. Refer to “Front Suspension Upper Arm
Bushing and Inner Dust Seal Removal and
Installation (Page 2B-13)”.
2
I831G1220047-01
(A)
1
I831G1220046-01
2
I831G1220048-01
2
2
3
4
3
1
I831G1220049-02
I831G1220050-02
To Next Page
