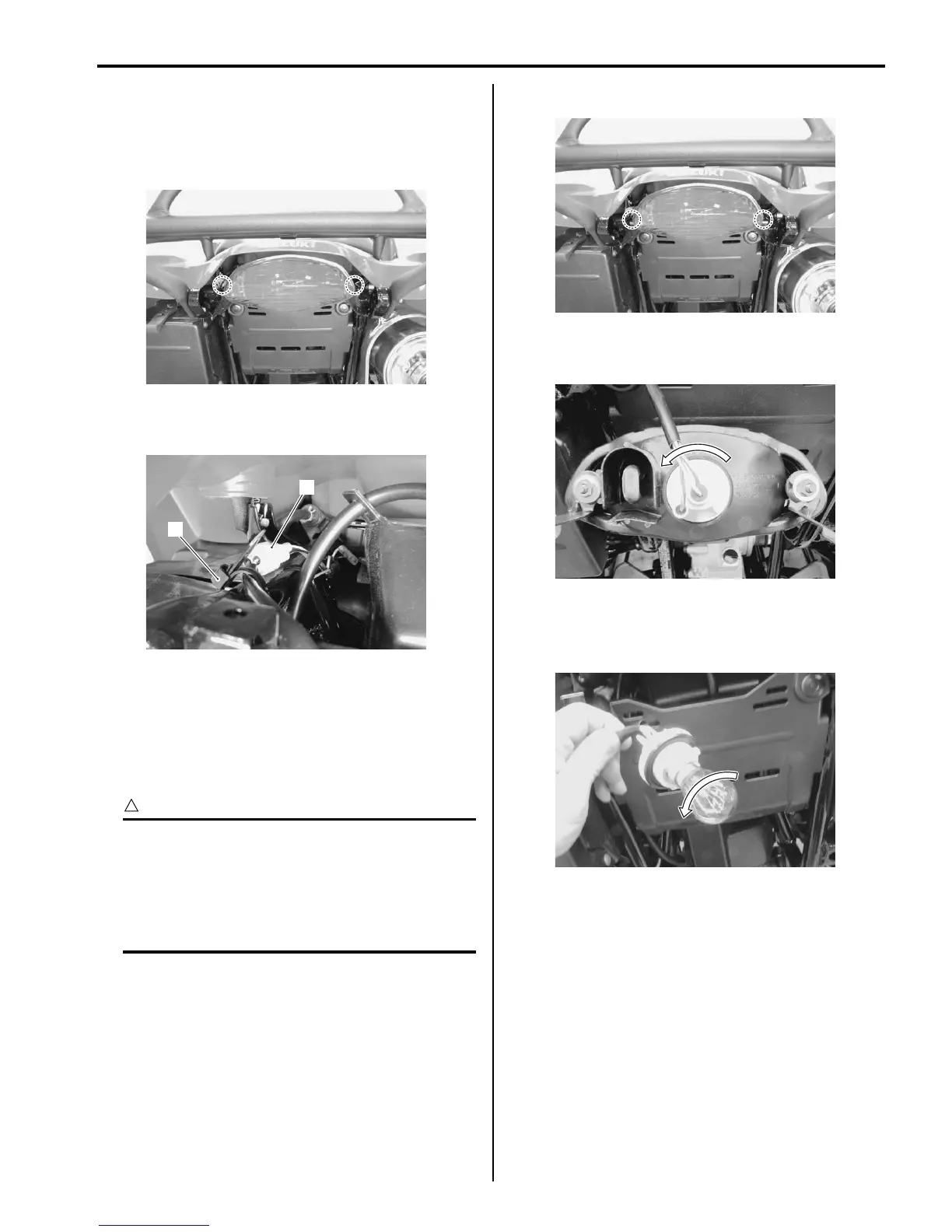

Lighting Systems: 9B-6
Rear Combination Light Removal and
Installation
B831G29206010
Removal
1) Remove the rear combination light mounting bolts.
2) Remove the rear combination light assembly by
disconnecting the clamp (1) and coupler (2).
Installation
Install the rear combination light in the reverse order of
removal.
Rear Combination Light Bulb Replacement
B831G29206011
CAUTION
!
• If you touch the bulb with your bare hands,
clean the bulb with a cloth moistened with
alcohol or soapy water to prevent
premature bulb failure.
• Do not use bulb other than those with
predetermined wattage.
1) Remove the rear combination light.
2) Remove the bulb socket by turning it
counterclockwise.
3) Push in on the bulb, turn it counterclockwise, and
pull it out.
4) Replace the bulb.
5) Reinstall the removed parts.
I831G1920020-01
1
2
I831G1920021-01
I831G1920022-02
I831G1920023-01
I831G1920024-03
