Engine Mechanical: 1D-10
• Connect the throttle cable.
• Tighten the throttle body clamp screws. Refer to
“Throttle Body Construction (Page 1D-8)”.
• After installed throttle cable, adjust the throttle cable
play. Refer to “Throttle Cable Play Inspection and
Adjustment in Section 0B (Page 0B-15)”.

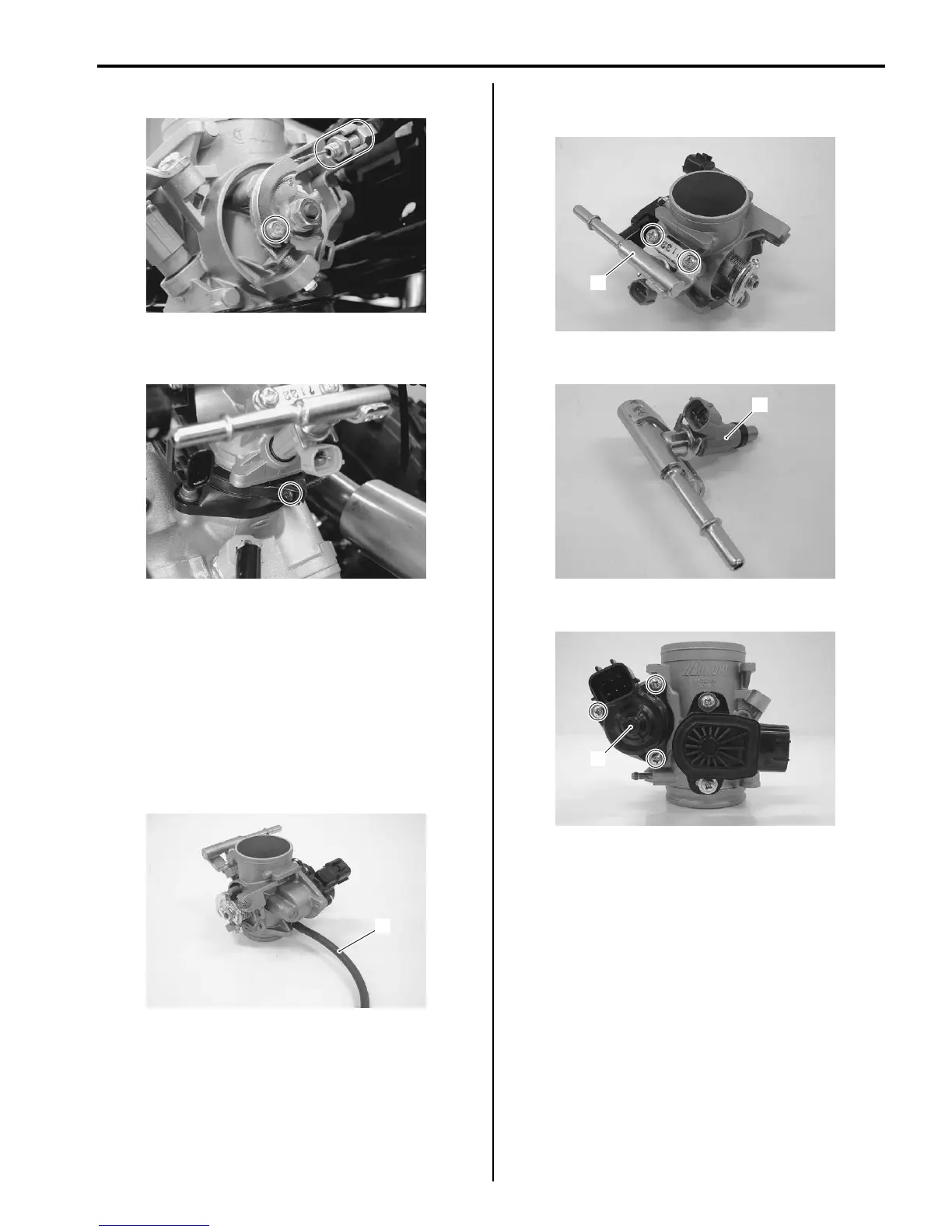

Throttle Body Disassembly and Assembly
B831G21406011
Refer to “Throttle Body Removal and Installation
(Page 1D-9)”.
Disassembly
1) Disconnect the vacuum hose (1).
2) Remove the fuel delivery pipe assembly (2) by
removing its mounting screws.
3) Remove the fuel injector (3).
4) Remove the ISC valve (4).
I831G1140027-01
I831G1140028-01
1
I831G1140030-01
2
I831G1140031-01
3
I831G1140033-01
4
I831G1140034-01
To Next Page
