9C-1 Combination Meter / Fuel Meter / Horn:
Body and Acc essories
Combination Meter / Fuel Meter / Horn
General Description
Combination Meter System Description
B831G29301001
This combination meter mainly consists of LCD (Liquid Crystal Display) and LED (Light Emitting Diode).
The LCDs indicate Speed, Odo / Trip A / Trip B, Fuel level, Diff-lock, 4WD, Gear position, Engine coolant temperature,
FI and Clock / Hour / FI (DTC) respectively.
LED (Light Emitting Diode)
LED is used for the illumination light and each indicator light.
LED is maintenance free. LED is less power consuming and more resistant to vibration resistance compared to the
bulb.
1
2
3
5
11
12
13
6
8
9
15
4
7
14
10
16

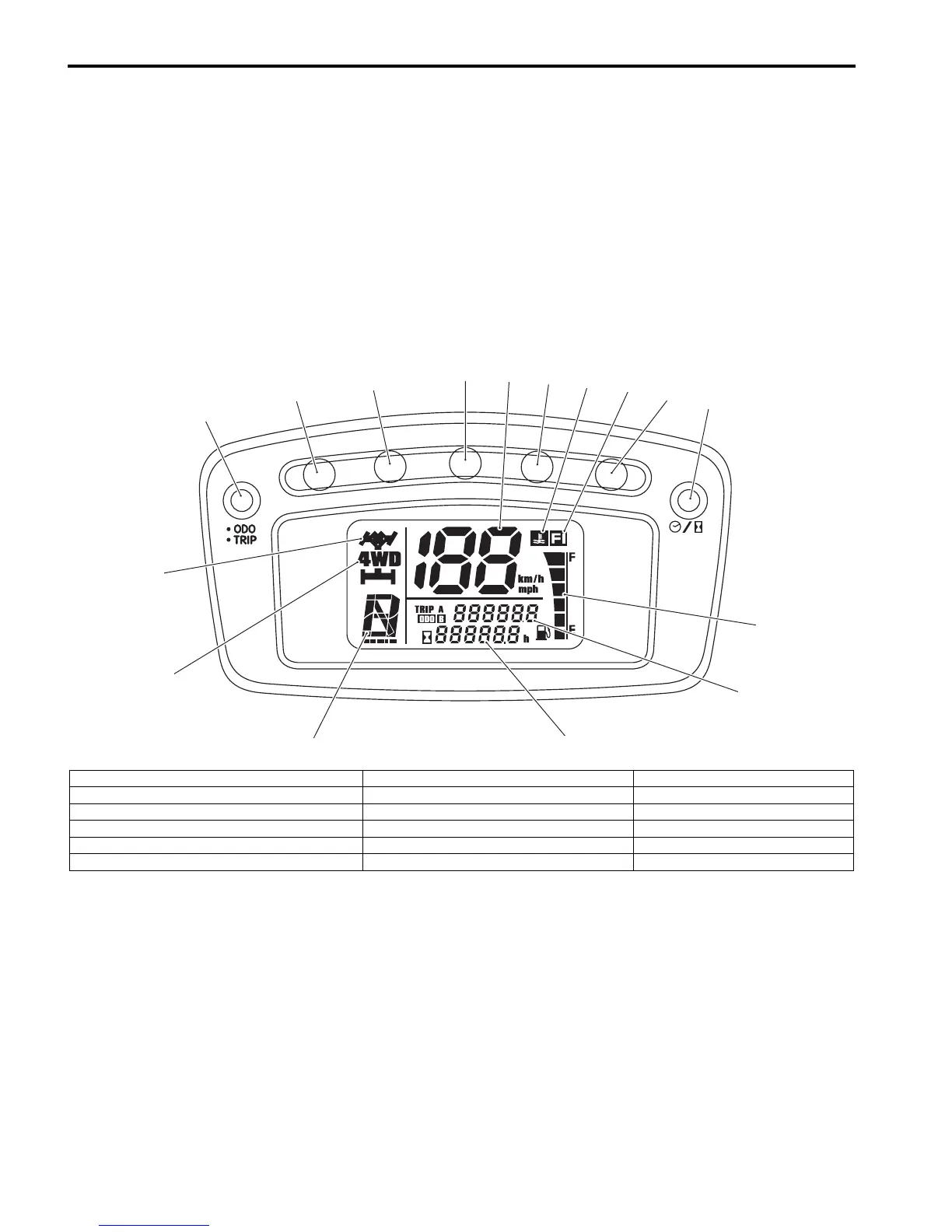

I831G1930001-03
1. Select button (Odo / Trip A / Trip B) 7. Select button (Clock / Hour / FI (DTC)) 13. LCD (FI indicator)
2. LED (Diff-lock indicator light) 8. LCD (Diff-lock indicator) 14. LCD (Fuel level indicator)
3. LED (Reverse indicator light) 9. LCD (4WD indicator) 15. LCD (Odo / Trip A / Trip B)
4. LED (Neutral indicator light) 10. LCD (Gear position indicator) 16. LCD (Clock / Hour / FI (DTC))
5. LED (High-beam indicator light) [For P-17] 11. LCD (Speedometer)
6. LED (Engine coolant temperature / FI indicator light) 12. LCD (Engine coolant temperature indicator)
