Suzuki kq750 User Manual

Steering / Handlebar: 6B-12
Tightening Torque Specifications
B831G26207002
NOTE
The specified tightening torque is also described in the following.
“Steering / Handlebars Components (Page 6B-1)”
“Steering / Handlebars Assembly Construction (Page 6B-2)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
Special Tools and Equipment
Recommended Service Material
B831G26208001
NOTE
Required service material is also described in the following.
“Steering / Handlebars Components (Page 6B-1)”
“Steering / Handlebars Assembly Construction (Page 6B-2)”

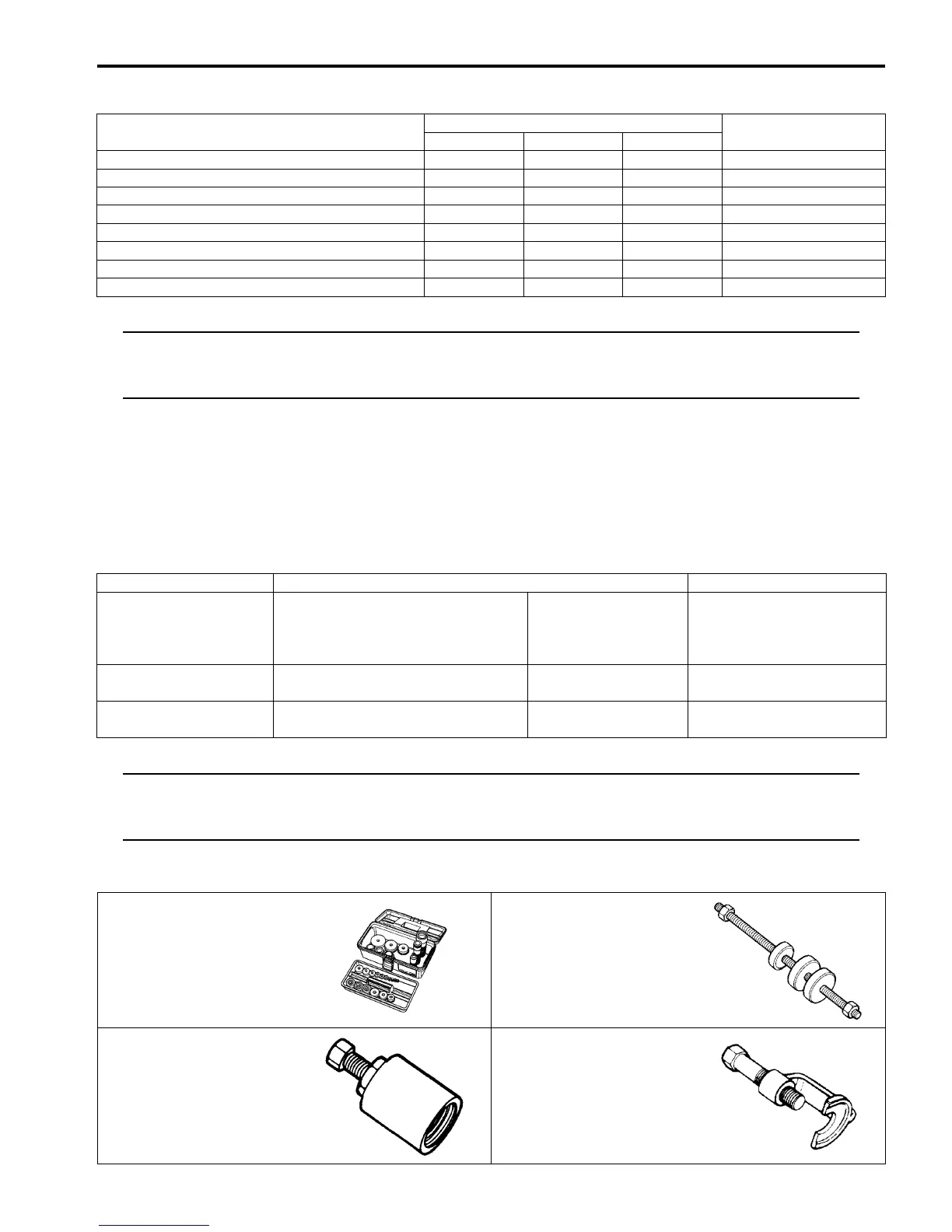

Special Tool
B831G26208002
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Handlebar clamp bolt 26 2.6 19.0 )(Page 6B-4)
Rear brake lever holder clamp bolt 11 1.1 8.0 )(Page 6B-4)
Throttle lever case bolt 5 0.5 3.5 )(Page 6B-5)
Steering shaft holder bolt 23 2.3 16.5 )(Page 6B-8)
Steering shaft lower nut 162 16.2 117.0 )(Page 6B-8)
Handlebar holder nut 60 6.0 43.5 )(Page 6B-9)
Tie-rod lock-nut 45 4.5 32.5 )(Page 6B-10)
Tie-rod end nut 29 2.9 21.0 )(Page 6B-10)
Material SUZUKI recommended product or Specification Note
Grease Water resistance grease P/No.: 99000–25160 )(Page 6B-7) / )(Page 6B-
7) / )(Page 6B-7) /
)(Page 6B-7) / )(Page 6B-
8)
Handle grip bond Handle Grip Bond (commercially
available)
— )(Page 6B-5)
Thread lock cement THREAD LOCK CEMENT SUPER
1303 or equivalent
P/No.: 99000–32030 )(Page 6B-8)
09913–70210 09924–84521
Bearing installer set Bearing installer set
)(Page 6B-7) )(Page 6B-7) / )(Page 6B-
7)
09930–30721 09942–72410
Rotor remover Tie rod end remover
)(Page 6B-7) )(Page 6B-9)
