5A-26 Automatic Transmission:
NOTE

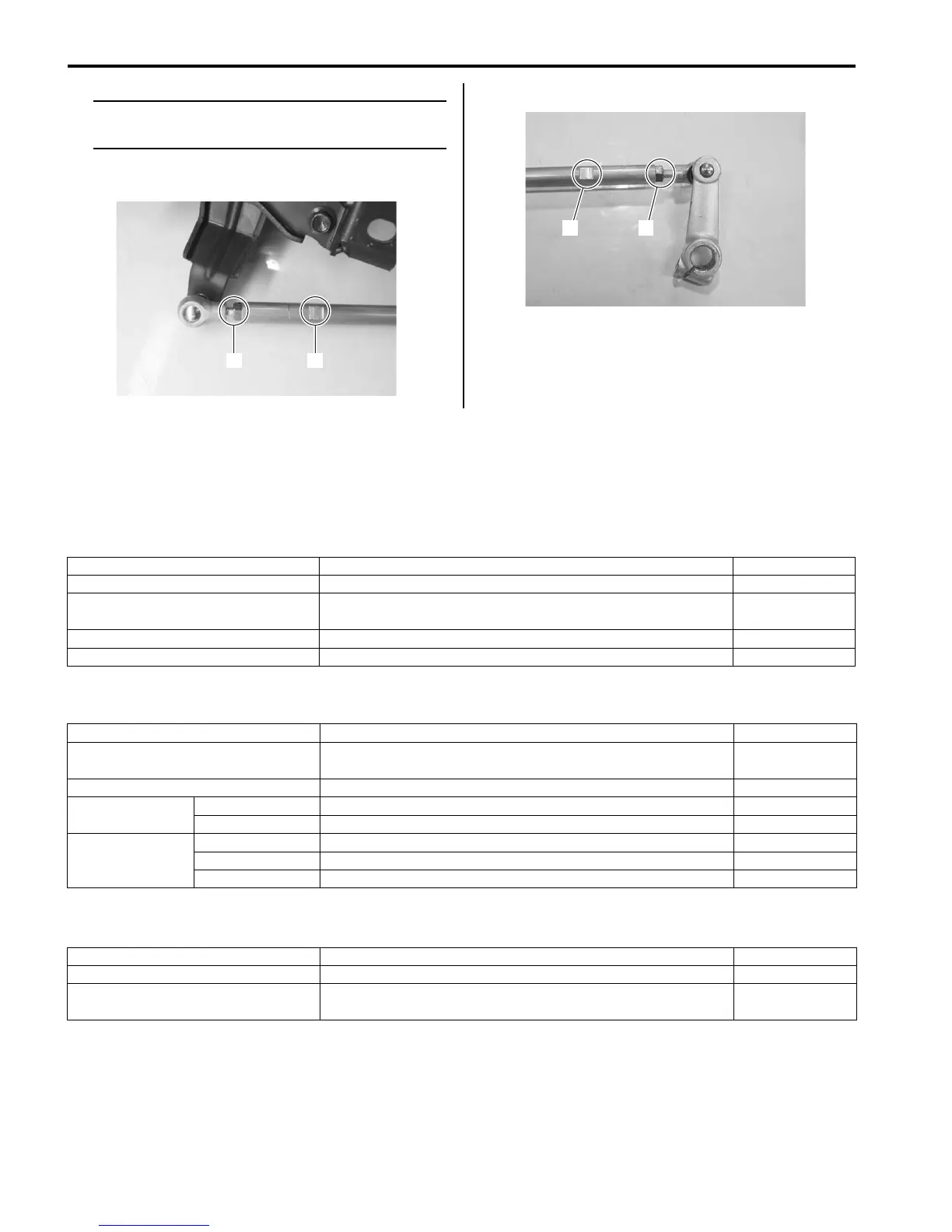

Be careful not to separate the rod from the
joint by turning the rod too much.
Shift lever side
Shift arm side
Specifications
Service Data
B831G25107001
Clutch
Unit: mm (in)
Drive Train
Unit: mm (in) Except ratio
Transmission
Unit: mm (in)
1 2
I831G1510117-01
2 1
I831G1510118-01
Item Standard Limit
Clutch wheel I.D. 140.0 – 140.2 (5.512 – 5.520) 140.5 (5.53)
Clutch shoe —
No groove at any
part
Clutch engagement r/min 1 500 – 2 000 r/min —
Clutch lock-up r/min 3 500 – 4 000 r/min —
Item Standard Limit
Primary reduction ratio (Automatic
drive)
Variable change (2.763 – 0.780) —
Secondary reduction ratio 2.158 (40/21 x 17/15) —
Final reduction
ratio
Front 3.600 (36/10) —
Rear 3.600 (36/10) —
Transfer gear
ratio
Low 2.562 (41/16) —
High 1.240 (31/25) —
Reverse 1.882 (32/17) —
Item Standard Limit
Drive V-belt width 34.3 (1.35) 33.3 (1.31)
Movable driven face spring free
length
153.0 (6.02) 145.4 (5.72)
