6B-11 Steering / Handlebar:

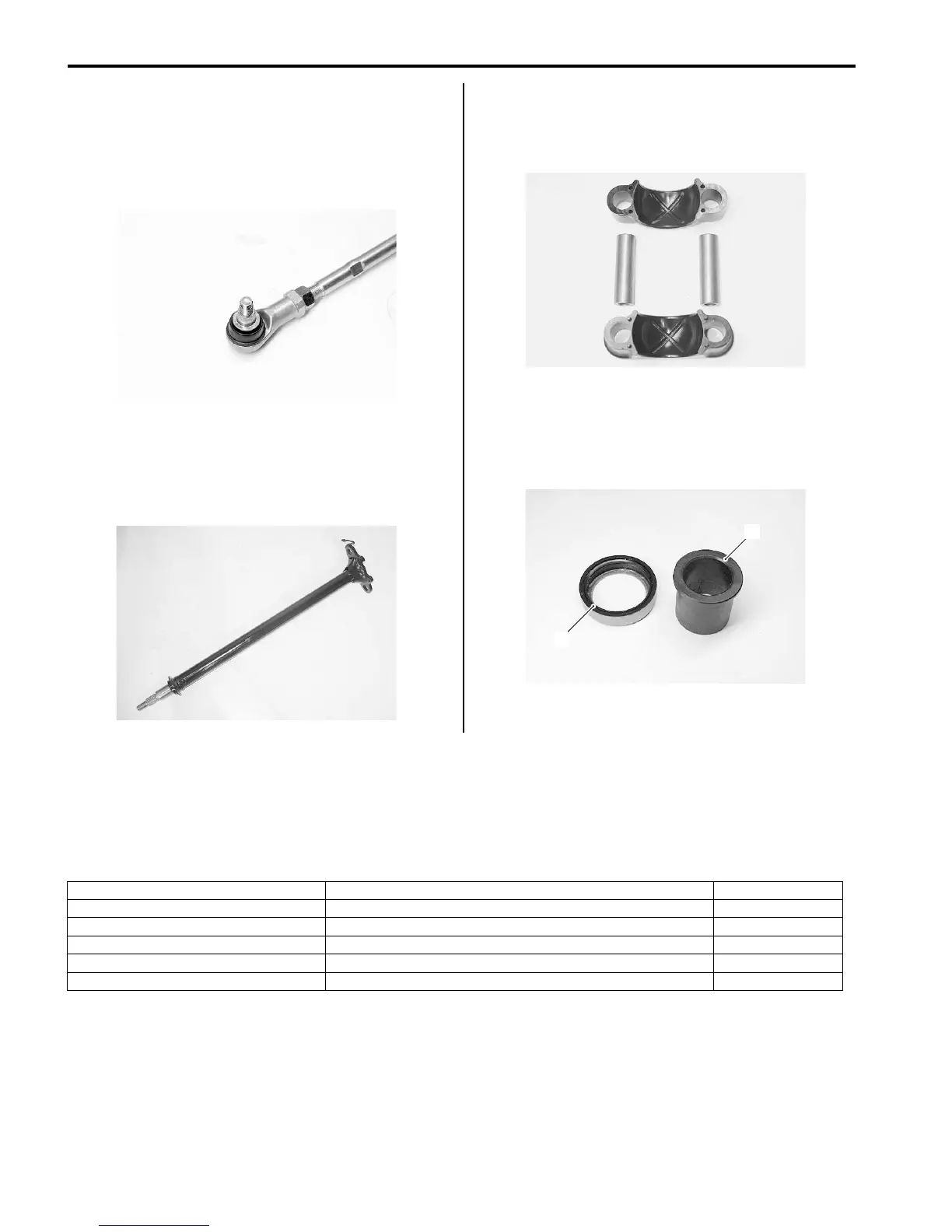

Tie-rod End

Inspect the tie-rod ends for smooth movement. If there

are any abnormalities, replace the tie-rod ends with new

ones. Inspect the tie-rod end boots for wear or damage.

If any defects are found, replace the tie-rod ends with

new ones.

Steering Shaft

Inspect the steering shaft for distortion or bend. If any

defects are found, replace the steering shaft with a new

one.

Steering Shaft Holder

Inspect the steering shaft holders for wear or damage. If

any defects are found, replace the steering shaft holders

with new ones.

Steering Shaft Bushing and Dust Seal

Inspect the steering shaft bushing (1) and dust seal (2)

for wear or damage. If any defects are found, replace

them with new ones.

Specifications

Service Data

B831G26207001

Wheel

Unit: mm

I831G1620044-01

I831G1620045-01

I831G1620046-01

I831G1620047-02

Item Standard Limit

Steering angle 46° (right & left) —

Turning radius 3.1 m (10.2 ft) —

Toe-out (with 75 kg, 165 lbs) 10 ± 4 mm (0.39 ± 0.16) —

Camber 0.64° —

Caster 1.6° —
