1E-1 Engine Lubrication System:
Engine
Engine Lubrication System
Precautions
Precautions for Engine Oil
B831G21500001
Refer to “Fuel and Oil Recommendation in Section 0A (Page 0A-3)”.
Schematic and Routing Diagram

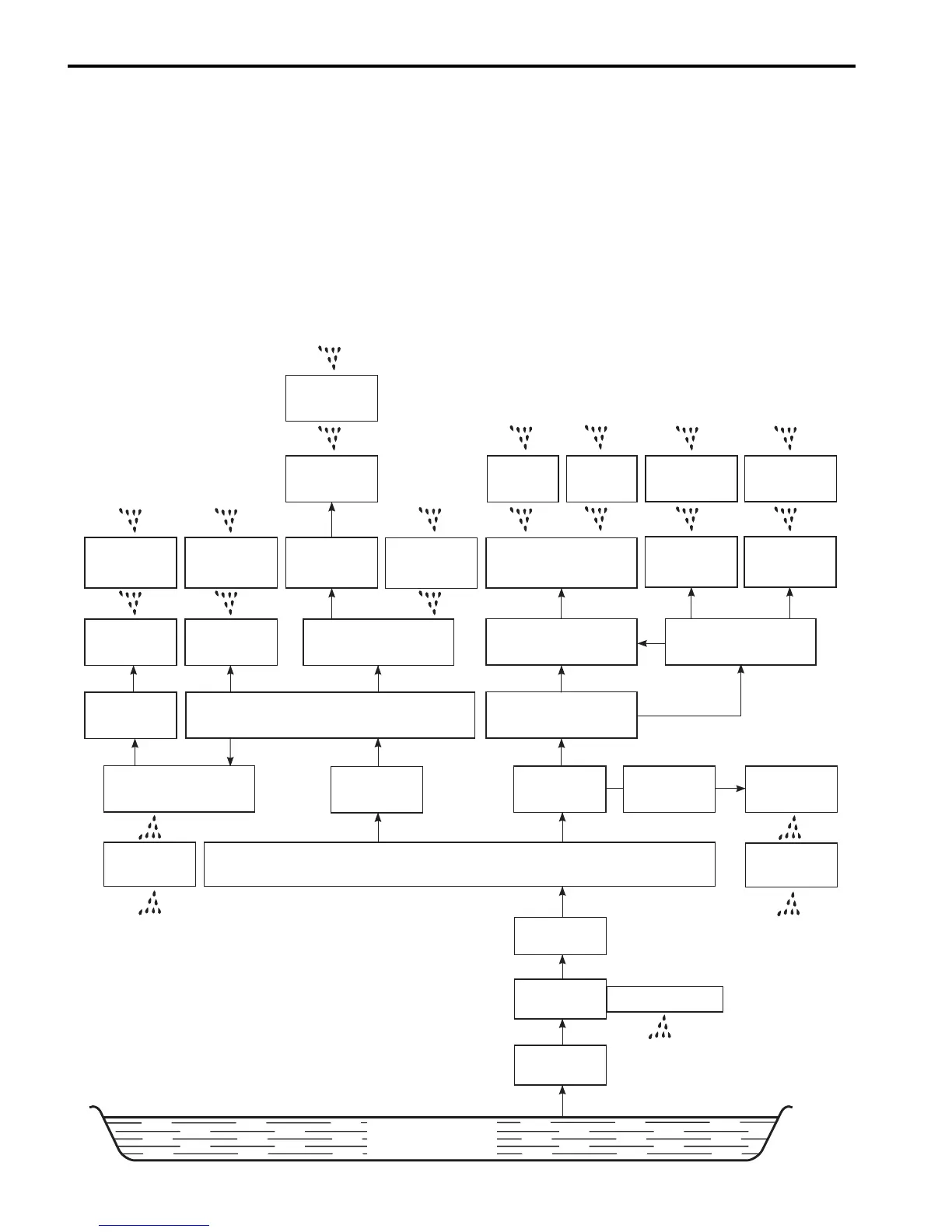

Engine Lubrication System Chart Diagram
B831G21502001
OIL SUMP
FILTER
OIL PUMP
RELIEF VALVE
OIL FILTER
OIL JET
DRIVE SHAFT
GEARS
CRANK
CASE (R)
CYLINDER
CAM FACE
& TAPPET
CAMSHAFT
JOURNAL (R)
EX.
CAMSHAFT
CAM FACE
& TAPPET
ONE-WAY
CLUCH
CLUCH SHOE
CONROD
BIG END BEARING
CYLINDER WALL
& PISTON
MAIN GALLERY
OIL PAN
EX. CAMSHAFT
JOURNAL (L)
IN. CAMSHAFT
JOURNAL (L)
CAM FACE
& TAPPET
IN. CAMSHAFT
CAMSHAFT
JOURNAL (R)
CAM FACE
& TAPPET
CAM CHAIN
IDLE GEAR
CAM
CHAIN
ONE-WAY
CLUCH
CAM
CHAIN
STARTER DRIVEN
GEAR BEARING
CRANKSHAFT (L)
CRANKSHAFT
BEARING (R)
CRANKSHAFT (R)
CYLINDER HEAD
I831G1150001-08
