Front Suspension: 2B-2

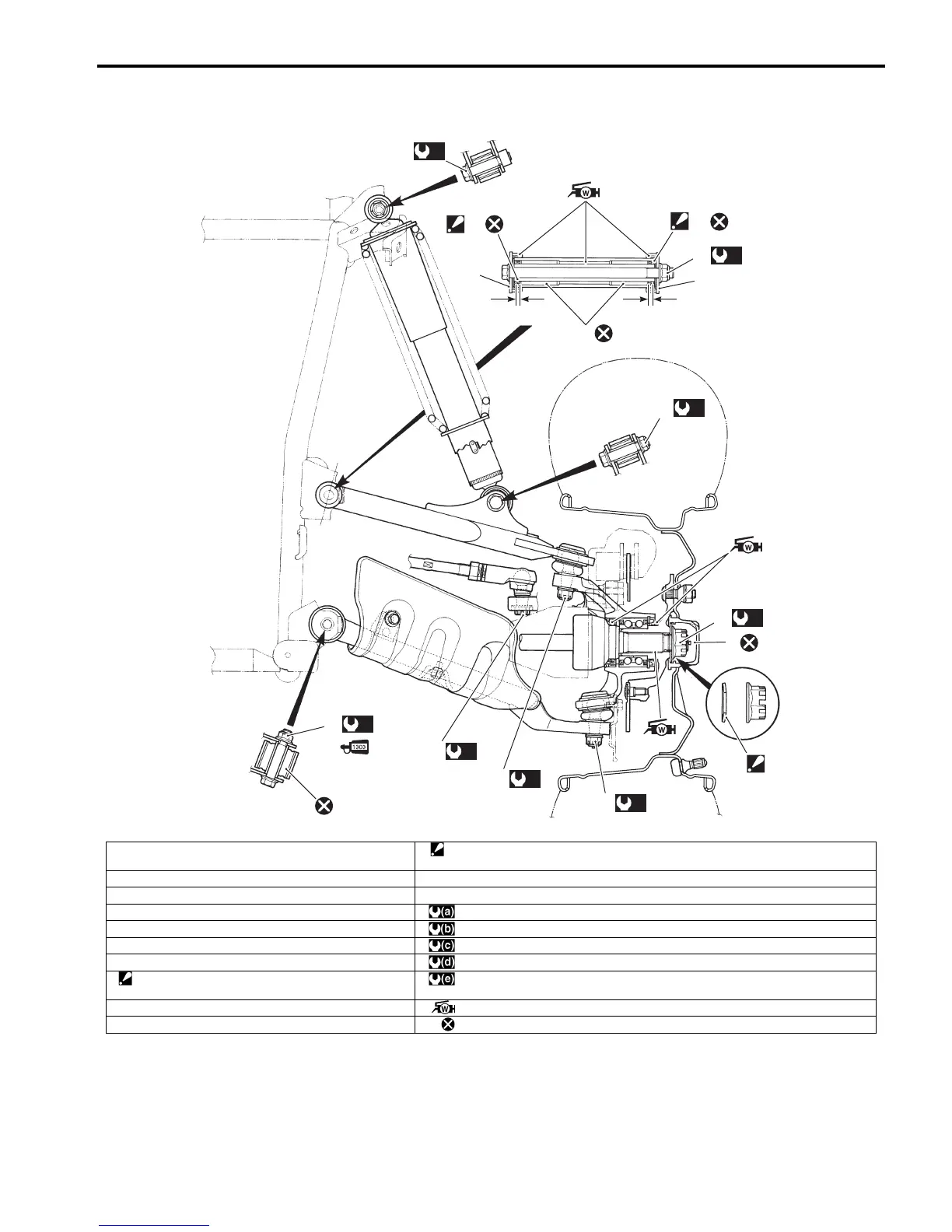

Front Suspension Assembly Construction
B831G22206002
“a” “a”
10
11
(e)
7
8
(d)
6
(d)
6
(c)
4
(b)
3
(b)
2
(a)
1
12
12
11
9
(d)
5
I831G1220001-06
1. Front shock absorber mounting bolt 11. Inner dust seal
: Align the surface of dust seal with the edge of suspension arm.
2. Front shock absorber mounting nut 12. Outer dust seal
3. Front suspension arm pivot nut (Upper) “a”: Position of the bushing (7.0 mm (0.28 in) from edge of suspension arm)
4. Front suspension arm pivot nut (Lower) : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)
5. Tie-rod end nut : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
6. Steering knuckle end nut (Upper / Lower) : 65 N⋅m (6.5 kgf-m, 47.0 lb-ft)
7. Front wheel hub nut : 29 N⋅m (2.9 kgf-m, 21.0 lb-ft)
8. Washer
: The conical side of washer faces outside.
:110 N⋅m (11.0 kgf-m, 79.5 lb-ft)
9. Cotter pin : Apply water resistance grease.
10. Bushing : Do not reuse.
