Propeller Shafts: 3D-1

Driveline / Axle

Propeller Shafts

Repair Instructions

Front Output Shaft Components

B831G23406001

Front Output Shaft Removal and Installation

B831G23406002

Removal

1) Remove the engine assembly from the frame. Refer

to “Engine Assembly Removal in Section 1D

(Page 1D-13)”.

2) Disassemble the engine top side. Refer to “Engine

Top Side Disassembly in Section 1D (Page 1D-17)”.

3) Separate the crankcase with the special tool. Refer

to “Engine Bottom Side Disassembly in Section 1D

(Page 1D-45)”.

Special tool

(A): 09920–13120 (Crankcase separating

tool)

FWD

I831G1340001-03

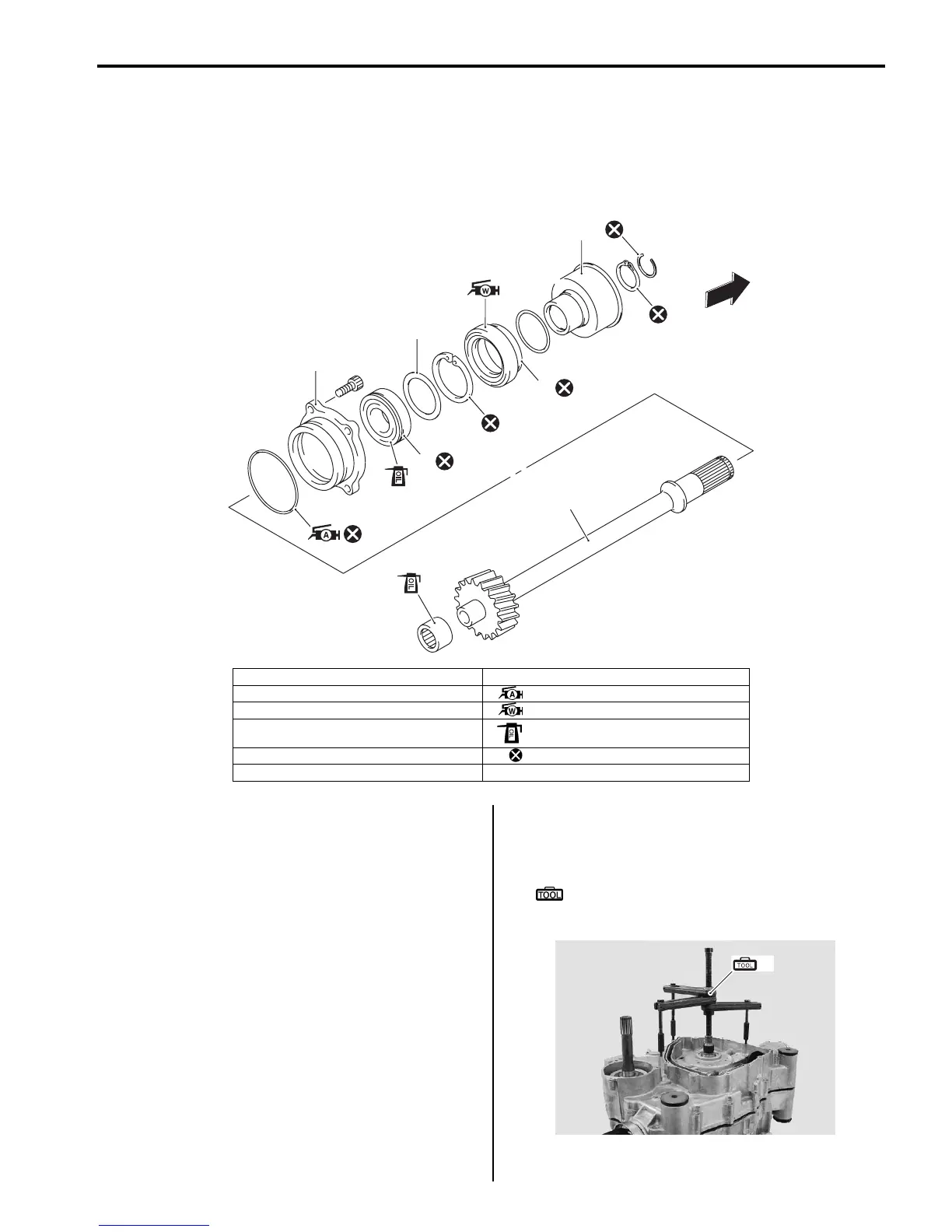

1. Front output shaft bearing (Rear) 7. Front drive collar assembly

2. Front output shaft : Apply grease.

3. Front output shaft housing : Apply water resistance grease.

4. Front output shaft bearing (Front) : Apply engine oil.

5. Shim(s) : Do not reuse.

6. Oil seal

(A)

I831G1340002-03
