9B-1 Lighting Systems:
Body and Acc essories
Lighting Systems
Repair Instructions
Headlight Components
B831G29206001
Headlight Removal and Installation
B831G29206002
Removal
1) Remove the front grill upper cover.
Refer to “Front Side Exterior Parts Removal and
Installation in Section 9D (Page 9D-6)”.

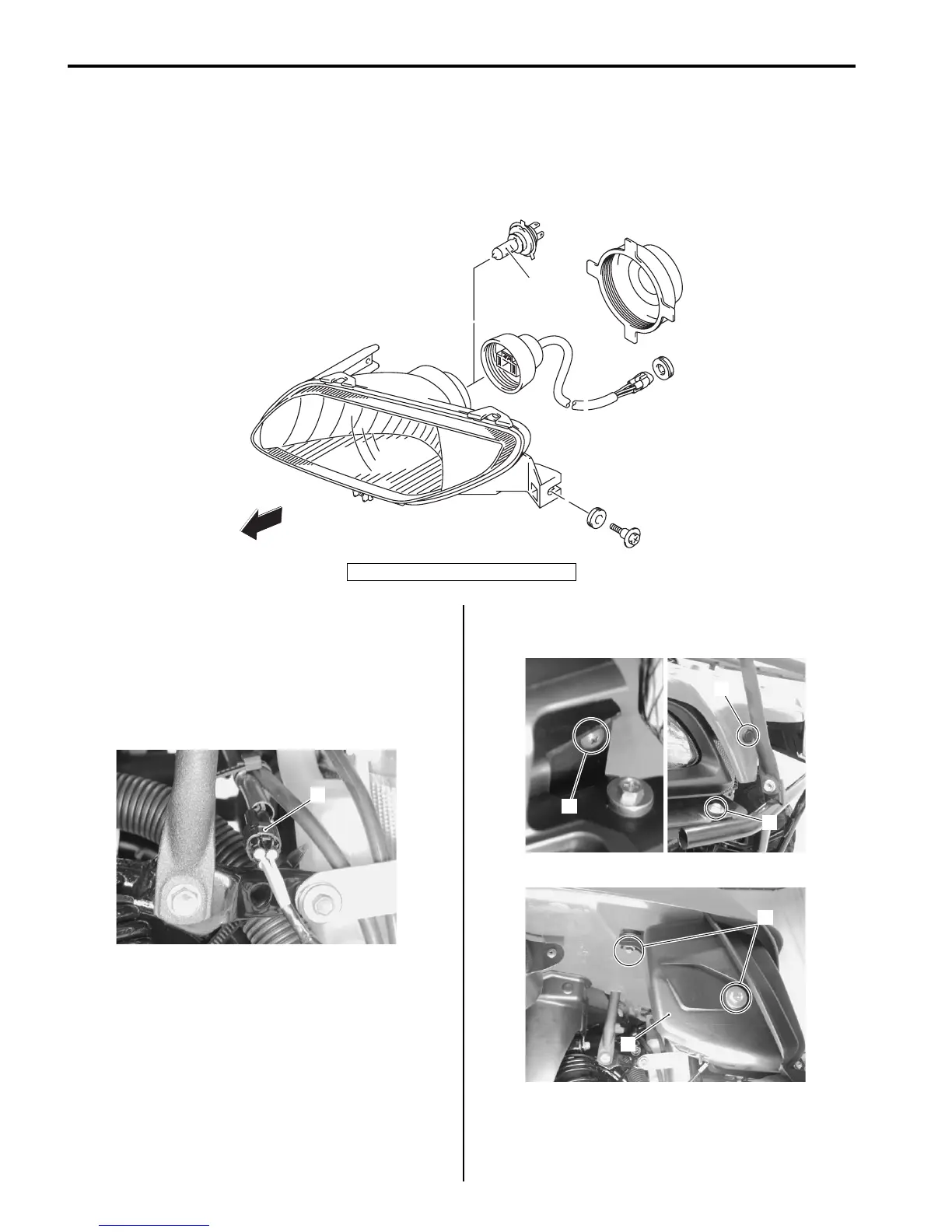

2) Disconnect the headlight coupler (1).
3) Remove the headlight assembly (2) by removing
screw (3), fastener (4) and bolts (5).
FWD
FWD
1
I831G1920002-03
1. Headlight bulb (12 V 35/35 W)
1
I831G1920003-01
5
4
3
I831G1920004-02
5
2
I831G1920005-03
