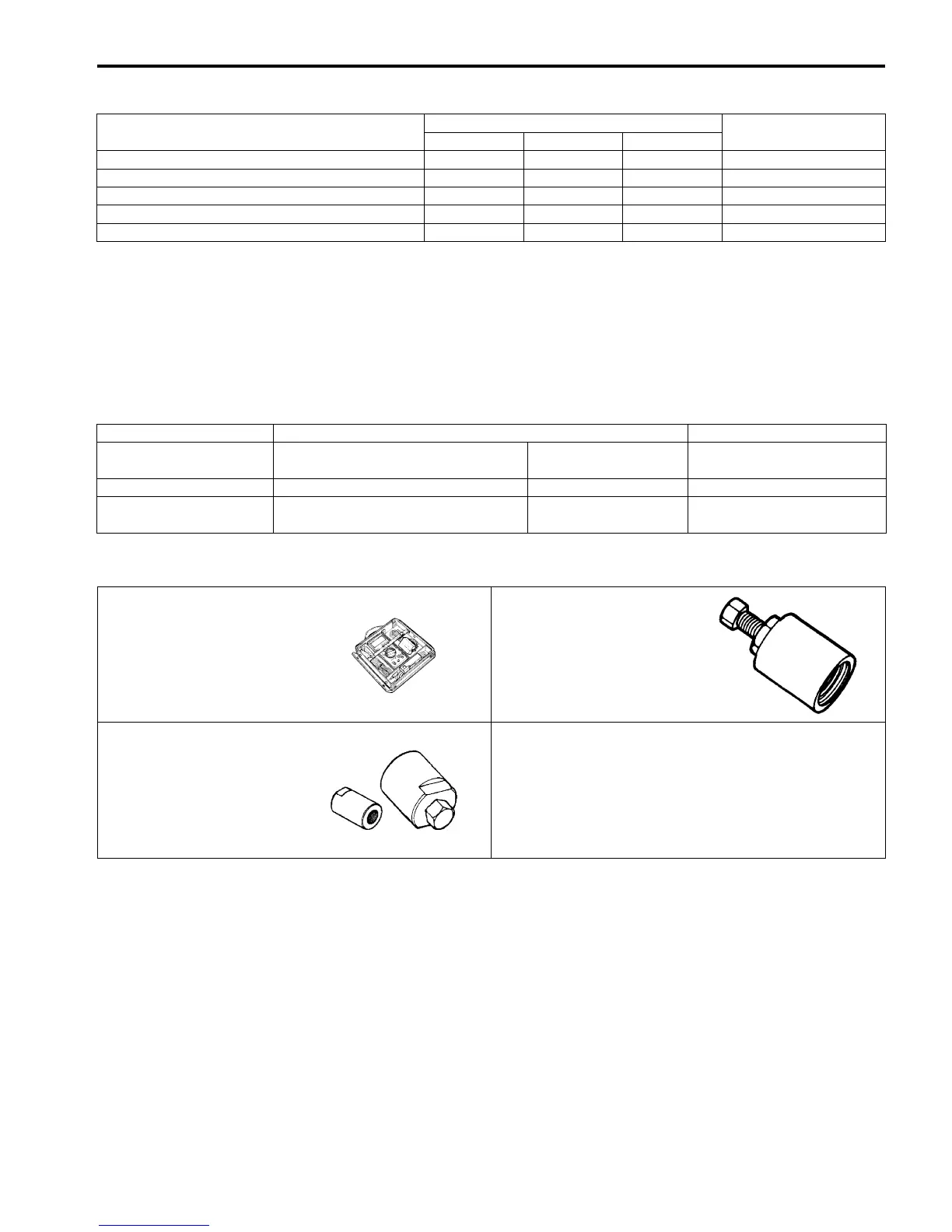

Charging System: 1J-13
Tightening Torque Specifications
B831G21A07002
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
Special Tools and Equipment
Recommended Service Material
B831G21A08001
Special Tool
B831G21A08002
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Generator stator set bolt 11 1.1 8.0 )(Page 1J-6)
CKP sensor mounting bolt 6 0.6 4.5 )(Page 1J-6)
Lead wire clamp bolt 6 0.6 4.5 )(Page 1J-6)
Generator rotor nut 160 16.0 115.5 )(Page 1J-7)
Starter cup nut 38 3.8 27.5 )(Page 1J-8)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 1J-7)
Molybdenum oil MOLYBDENUM OIL SOLUTION — )(Page 1J-7)
Thread lock cement THREAD LOCK CEMENT 1342 or
equivalent
P/No.: 99000–32050 )(Page 1J-8)
09900–25008 09930–30721
Multi-circuit tester set Rotor remover
)(Page 1J-3) / )(Page 1J-
3) / )(Page 1J-4) /
)(Page 1J-4) / )(Page 1J-
9)
)(Page 1J-6)
09930–31921
Rotor remover
)(Page 1J-5)
