2C-1 Rear Suspension:
Suspension
Rear Suspension
Repair Instructions

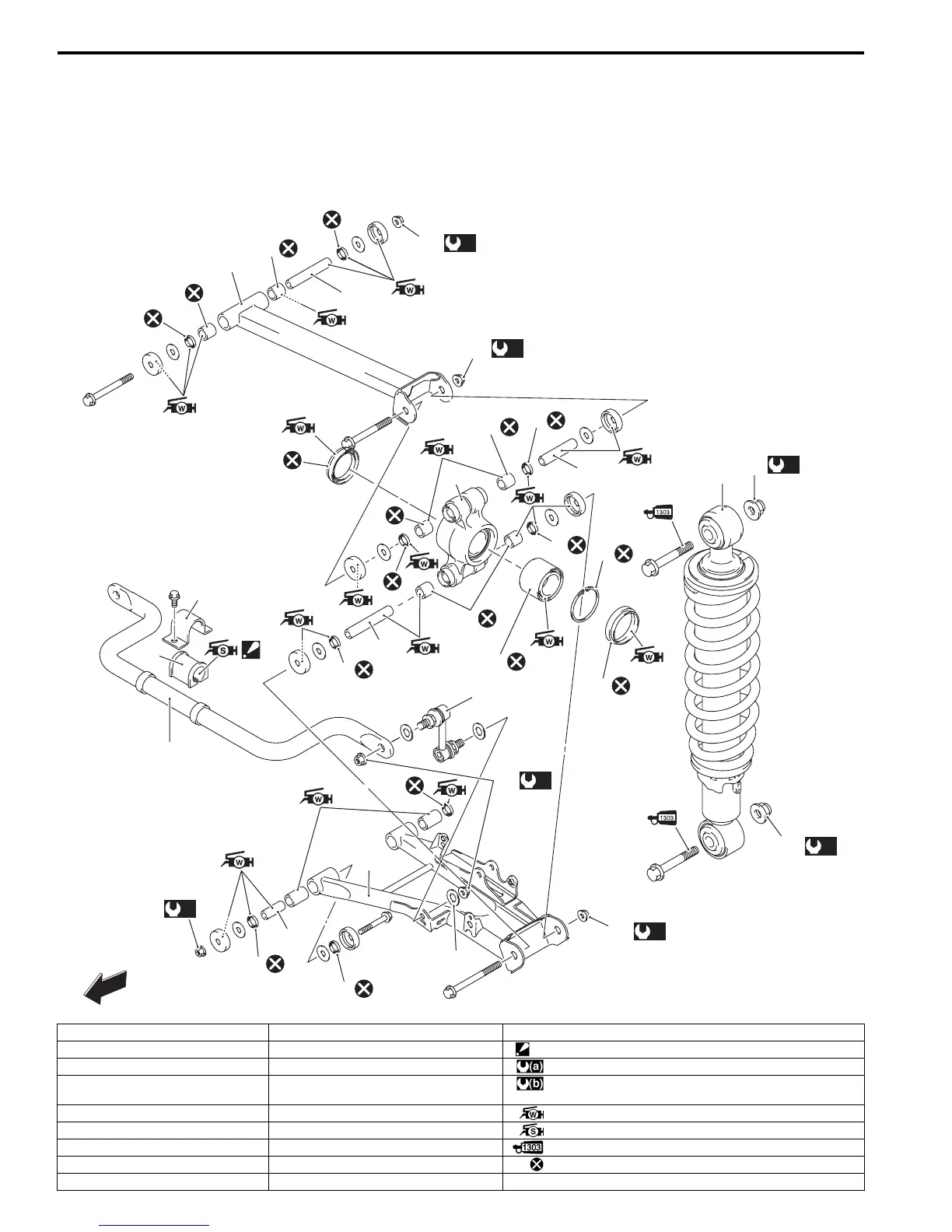

Rear Suspension Components
B931G22306001
7
6
8
(a)
16
14
(a)
18
2
4
3
7
(a)
15
1
(a)
16
9
7
(a)
18
(b)
17
(a)
15
12
10
13
11
5
FWD
FWD
7
8
9
14
7
8
8
9
8
9
8
8
8
7
8
“A”
19
I931G1230003-02
1. Rear shock absorber 10. Rear suspension arm (lower) 19. Washer [From 5SAAR41A497105527]
2. Rear stabilizer bar 11. Rear suspension knuckle “A”: Do not apply grease. [From 5SAAR41A197105887]
3. Rear stabilizer bushing 12. Hub bearing : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
4. Rear stabilizer bracket 13. Snap ring : Up to 5SAAR41A497105526: 34 N⋅m (3.4 kgf-m, 24.5 lb-ft)
From 5SAAR41A497105527: 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
5. Rear stabilizer joint 14. Dust seal : Apply water resistance grease.
6. Rear suspension arm (upper) 15. Rear shock absorber mounting nut : Apply silicone grease. [Up to 5SAAR41A197105886]
7. Bushing 16. Rear suspension arm pivot nut : Apply thread lock to thread part.
8. Inner dust seal 17. Rear stabilizer joint nut : Do not reuse.
9. Spacer 18. Rear suspension knuckle nut
