3D-10 Propeller Shafts:
• Lock the rear output shaft driven gear nut (9) with a
center punch.

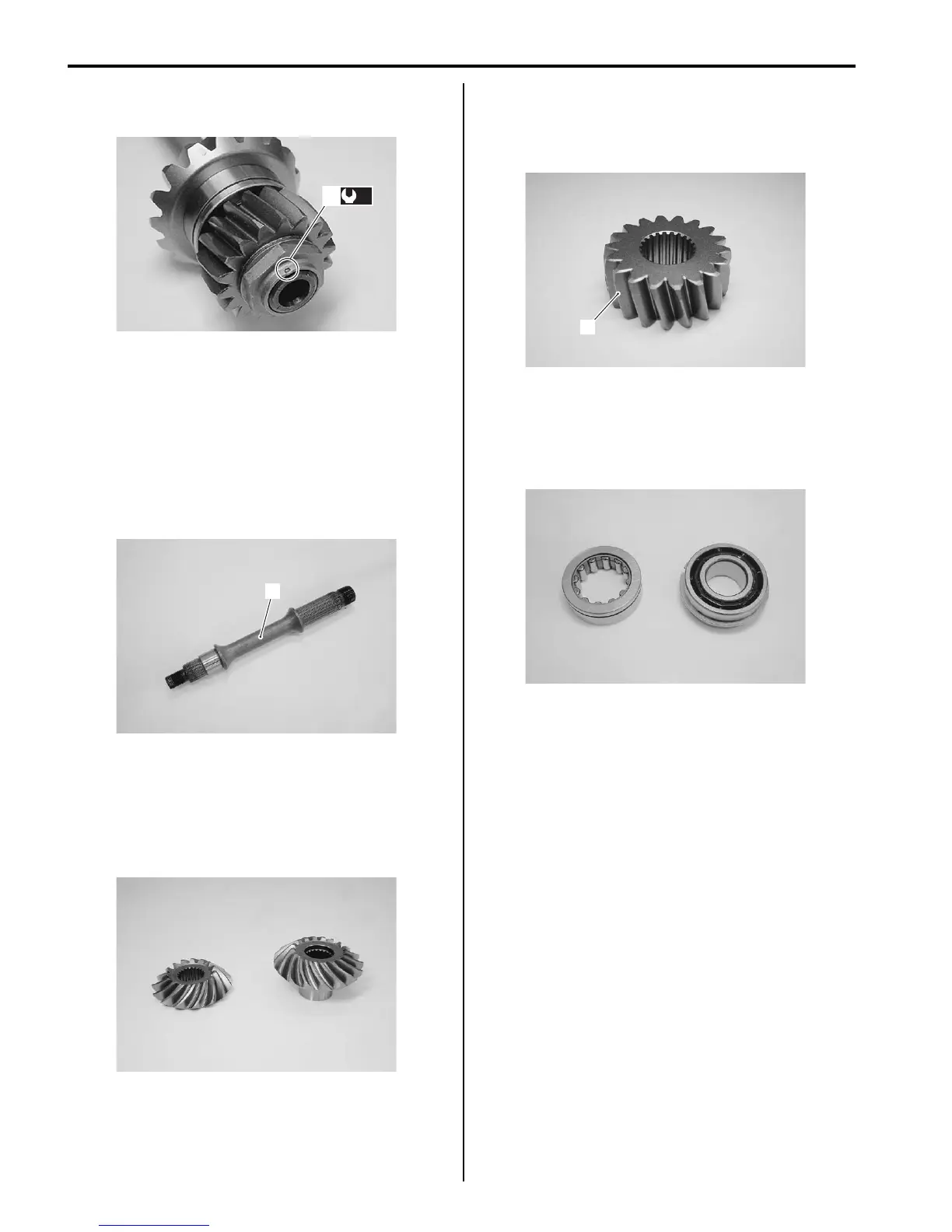

Rear Output Shaft Related Parts Inspection
B831G23406008
Refer to “Rear Output Shaft Disassembly and Assembly
(Page 3D-8)”.
Rear Output shaft
Inspect the rear output shaft (1) for wear or damage. If
any defects are found, replace the rear output shaft with
a new one.
Rear Output Shaft Bevel Gear
Inspect the drive and driven bevel gear for wear or
damage.
• If any defects are found, replace the drive and driven
bevel gears as a set.
Rear Output Shaft Gear
Inspect the rear output shaft gear for wear or damage. If
any defects are found, replace the rear output shaft gear
with the new one.
Bearing
Inspect the rear output shaft bearing and rear driven
bevel gear bearing for abnormal noise and smooth
rotation.
(b)
9
I831G1340034-03
1
I831G1340036-01
I831G1340037-01
3
I831G1340038-01
I831G1340039-01
To Next Page
