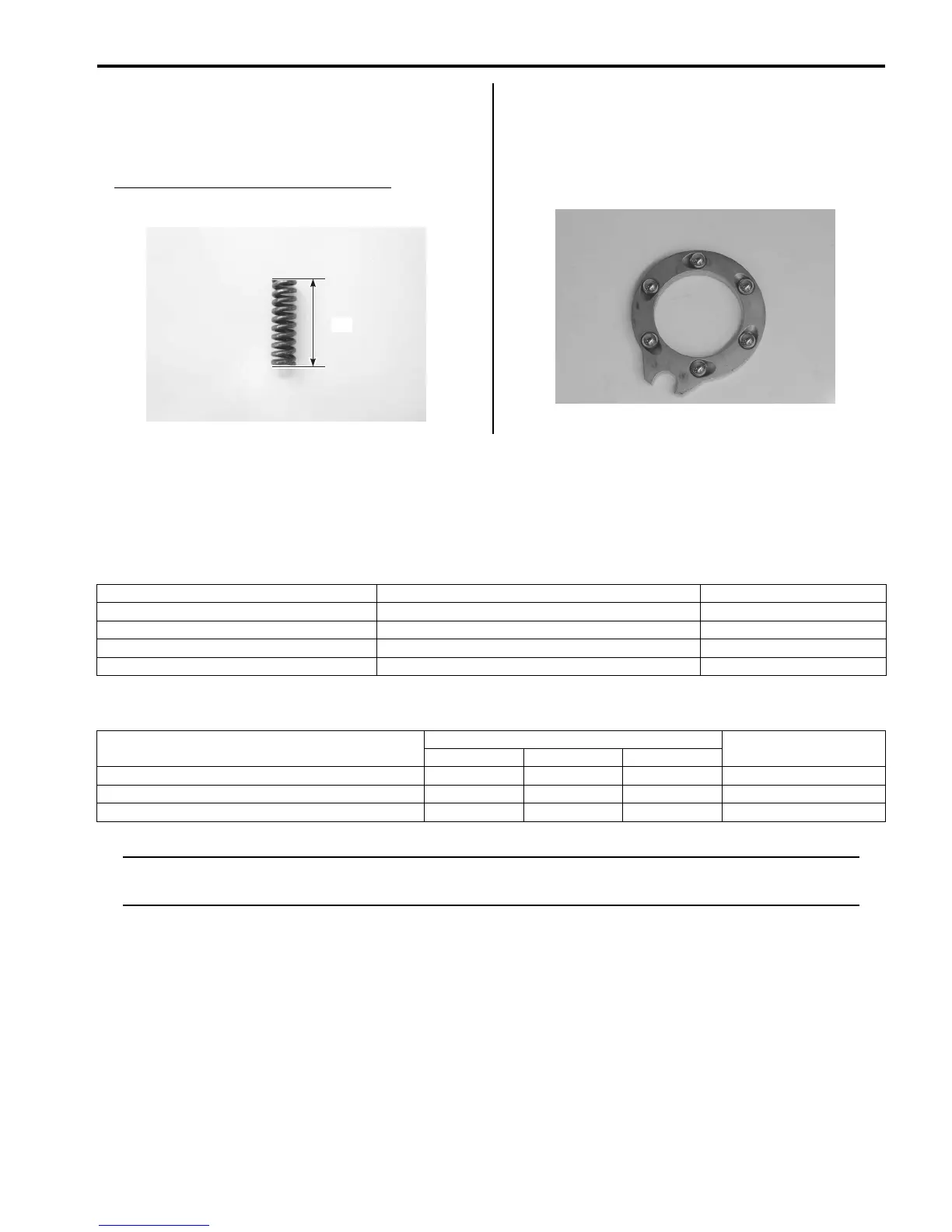

Rear Brakes: 4C-9
Brake Side Plate Spring
• Measure the free length “a”.
• If the free length “a” is shorter than the limit, replace
the spring with a new one.
Brake side plate spring free length “a”
Service limit: 20.2 mm (0.80 in)
Rear Brake Pressure Plate
Inspect the rear brake pressure plate for wear or
damage. If any wear or damage is found, replace it with
a new one.
Inspect the balls for wear or damage. If any wear or
damage is found, replace them with new ones.
Specifications
Service Data
B831G24307001
Brake
Unit: mm (in)
Tightening Torque Specifications
B831G24307002
NOTE
The specified tightening torque is also described in the following.
“Rear Brake Components (Page 4C-1)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
“a”
I831G1430041-02
I831G1430042-01
Item Standard Limit
Rear brake pedal free travel 20 – 30 (0.8 – 1.2) —
Rear brake lever play 6 – 8 (0.2 – 0.3) —
Rear brake outer distance 26.0 – 27.0 (1.02 – 1.06) —
Brake side plate spring free length 21.3 (0.84) 20.2 (0.80)
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Rear brake case bolt 26 2.6 19.0 )(Page 4C-2)
Rear brake cam lever nut 11 1.1 8.0 )(Page 4C-3)
Rear propeller shaft coupling nut 100 10.0 72.5 )(Page 4C-6)
