2B-1 Front Suspension:
Suspension
Front Suspension
Repair Instructions

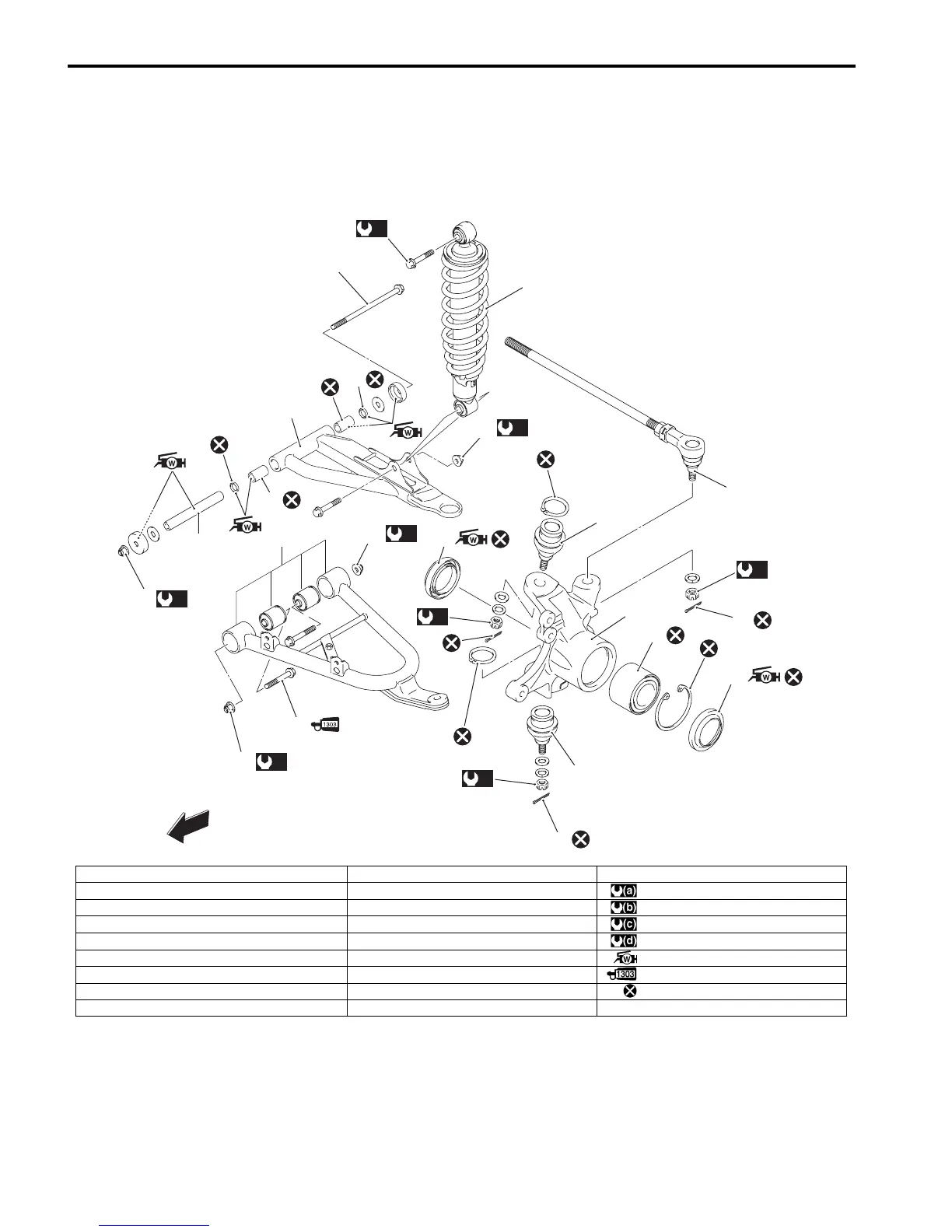

Front Suspension Components
B831G22206001
(a)
1
2
(b)
9
16
13
15
14
18
(d)
13
17
FWD
FWD
19
19
19
(b)
3
(d)
(d)
4
7
6
6
7
8
(c)
11
(c)
11
10
12
5
I831G1220002-08
1. Front shock absorber mounting bolt 10. Suspension arm bolt (Lower) 19. Cotter pin
2. Front shock absorber 11. Suspension arm pivot nut (Lower) : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)
3. Front shock absorber mounting nut 12. Suspension lower arm set : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
4. Suspension arm bolt (Upper) 13. Knuckle end : 65 N⋅m (6.5 kgf-m, 47.0 lb-ft)
5. Suspension upper arm 14. Hub bearing : 29 N⋅m (2.9 kgf-m, 21.0 lb-ft)
6. Bushing 15. Outer dust seal : Apply water resistance grease.
7. Inner dust seal 16. Inner dust seal : Apply thread lock to the thread part.
8. Spacer 17. Tie-rod end : Do not reuse.
9. Suspension arm pivot nut (Upper) 18. Steering knuckle
