Exhaust System: 1K-2

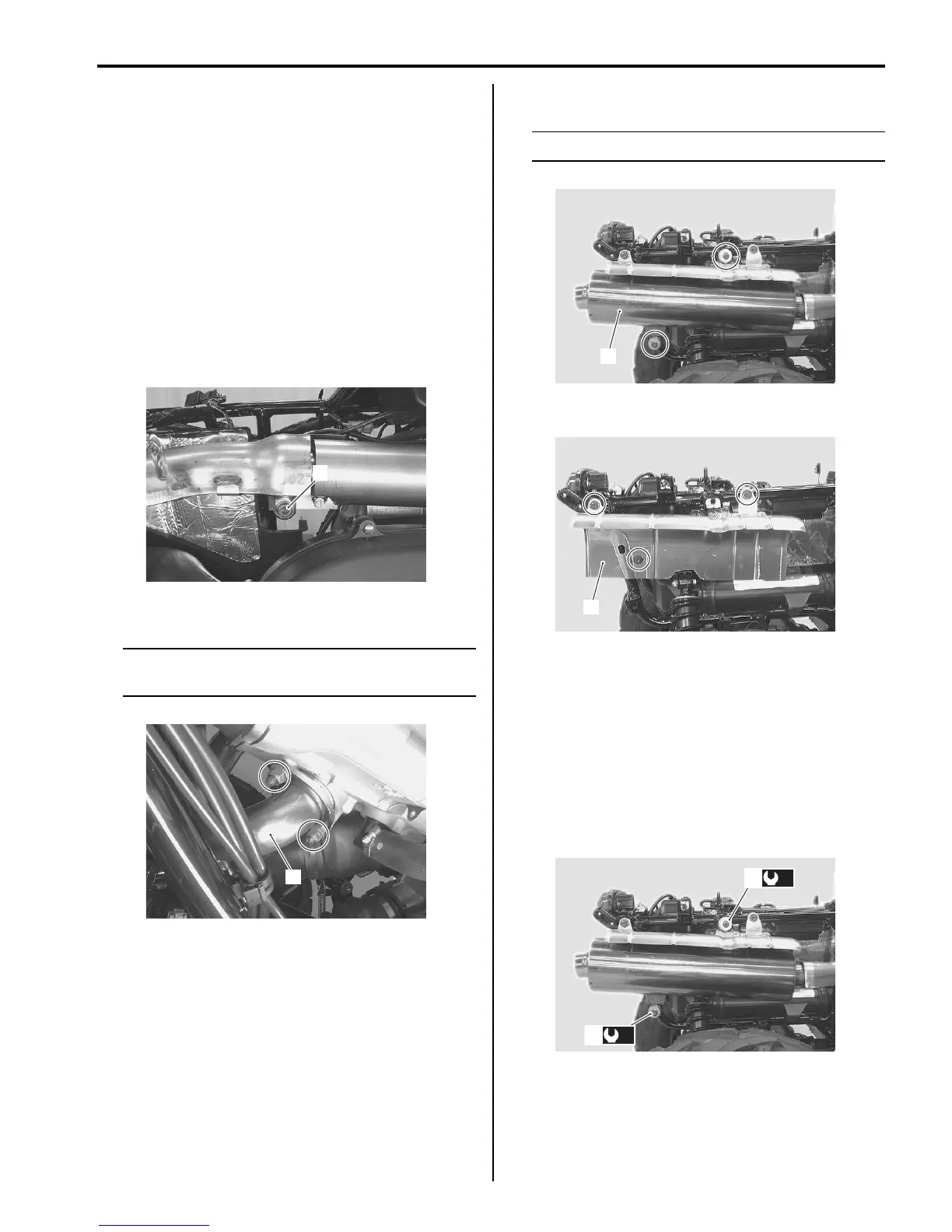

Exhaust Pipe / Muffler Removal and Installation

B831G21B06002

Removal

1) Remove the inner fenders and side covers, left and

right. Refer to “Front Side Exterior Parts Removal

and Installation in Section 9D (Page 9D-6)”.

2) Remove the rear carrier. Refer to “Rear Carrier

Removal and Installation in Section 9E (Page 9E-5)”.

3) Remove the seat. Refer to “Seat Removal and

Installation in Section 9D (Page 9D-11)”.

4) Remove the engine side cover and rear fender.

Refer to “Rear Side Exterior Parts Removal and

Installation in Section 9D (Page 9D-9)”.

5) Loosen the muffler connecting bolt (1).

6) Remove the exhaust pipe (2).

NOTE

Support the exhaust pipe to prevent it from

falling.

7) Remove the muffler (3).

NOTE

Support the muffler to prevent it from falling.

8) Remove the muffler cover (4).

Installation

Install the exhaust pipe/muffler in the reverse order of

removal.

Pay attention to the following points:

• Tighten the muffler mounting bolts (1) to the specified

torque.

Tightening torque

Muffler mounting bolt (a): 23 N·m (2.3 kgf-m, 16.5

lb-ft)

I831G11B0002-02

I831G11B0003-01

I831G11B0004-03

I831G11B0005-02

(a)

I831G11B0006-03
