4D-4 Parking Brake:

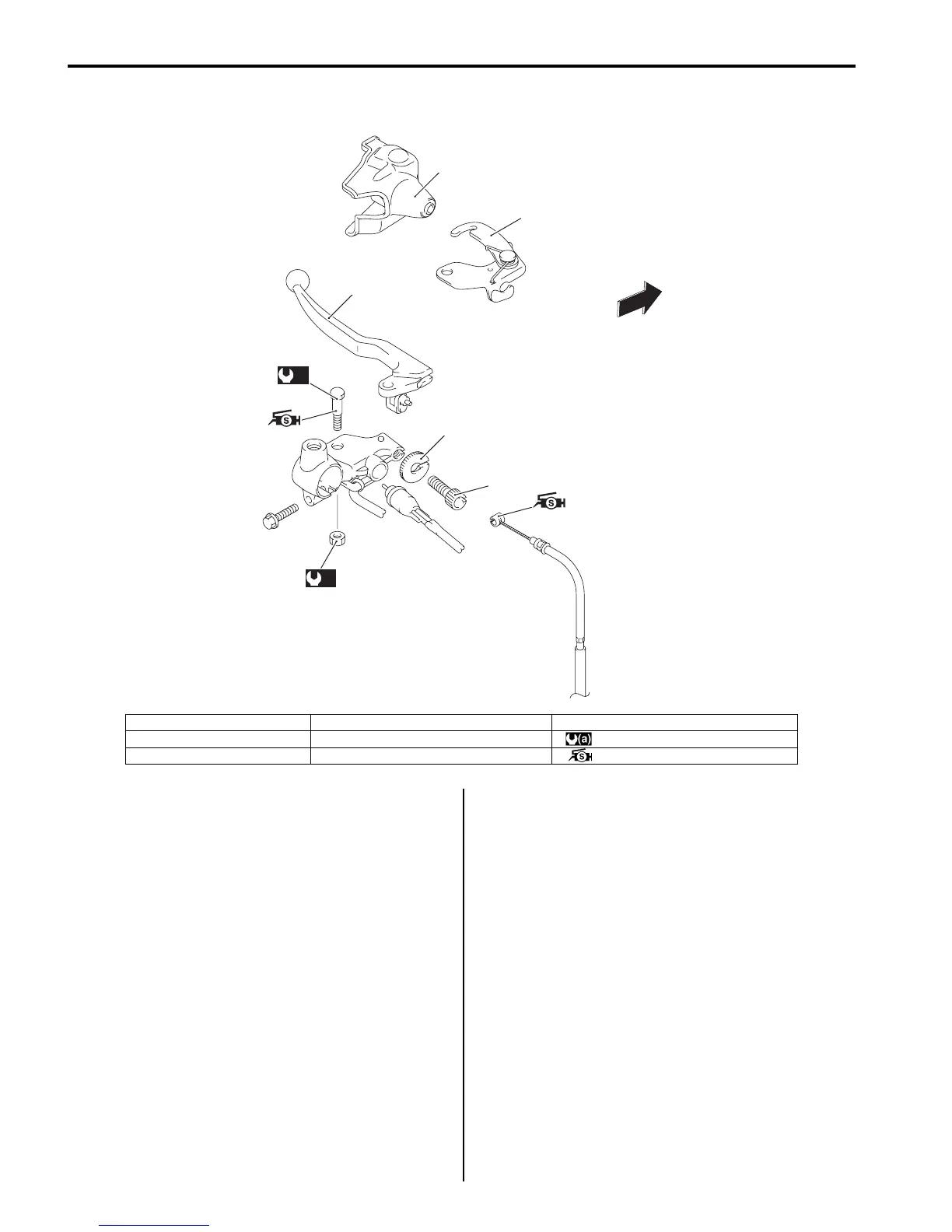

Parking / Rear Brake Lever Components
B831G24406003
Parking / Rear Brake Lever Removal and
Installation
B831G24406004
Removal
Refer to “Handlebars Removal and Installation in
Section 6B (Page 6B-3)”.
Installation
Refer to “Handlebars Removal and Installation in
Section 6B (Page 6B-3)”.
Parking / Rear Brake Light Switch Inspection
B831G24406005
Refer to “Parking / Rear Brake Light Switch Inspection in
Section 4A (Page 4A-5)”.
Parking / Rear Brake Relay Inspection
B831G24406006
Refer to “Parking Brake Relay Inspection in Section 1I
(Page 1I-9)”.
2
1
3
(a)
4
(a)
5
7
6
FWD
I831G1440007-01
1. Brake lever lock 4. Brake lever pivot bolt 7. Lock-nut
2. Brake lever cover 5. Brake lever pivot nut : 6 N⋅m (0.6 kgf-m, 4.5 lb-ft)
3. Brake lever 6. Adjuster : Apply silicone grease.
To Next Page
