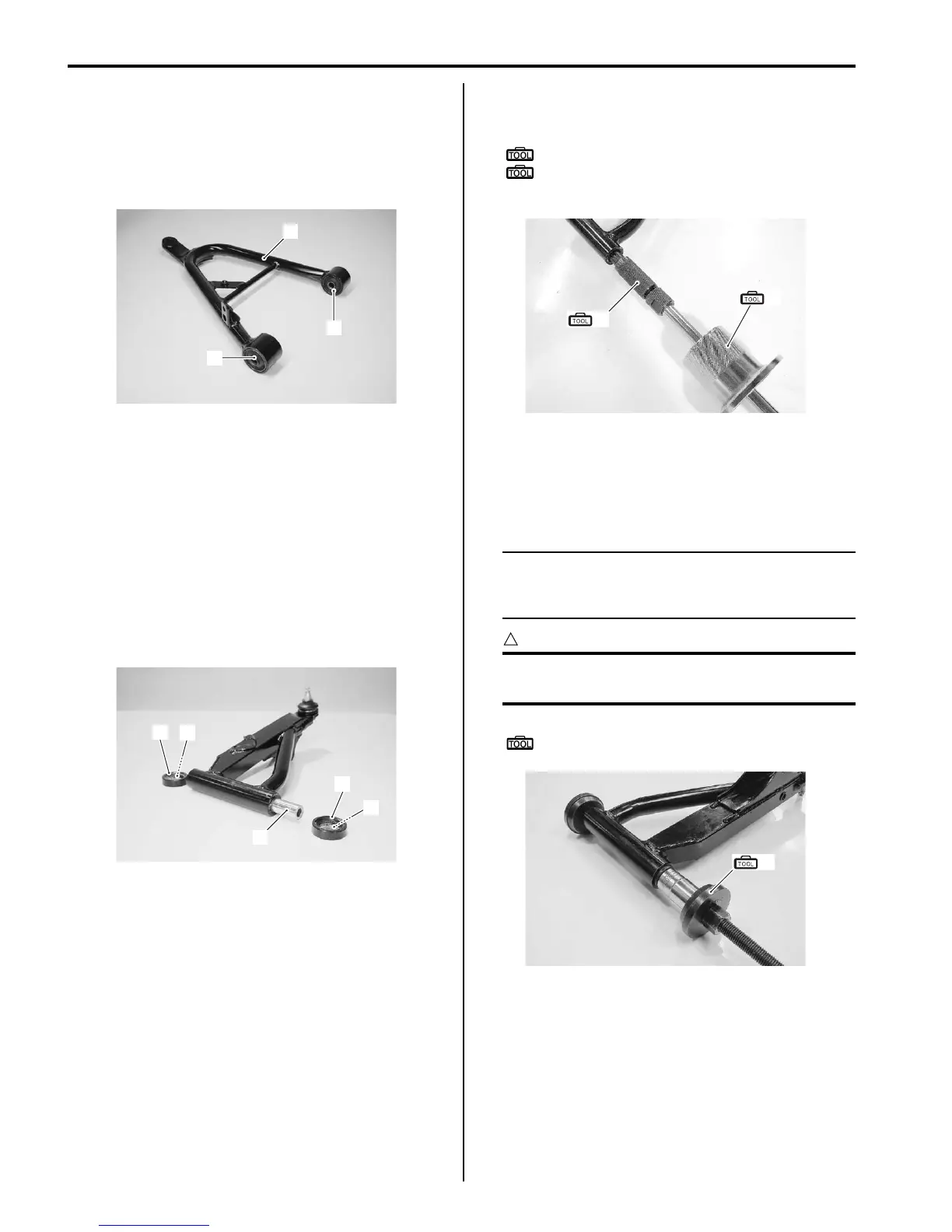

2B-13 Front Suspension:
Lower arm
Inspect the front lower arm (1) and bushings (2) for bend
or damage. If any defects are found, replace the
defective parts with new ones. Refer to “Front
Suspension Lower Arm Bushing Removal and
Installation (Page 2B-14)”.
Front Suspension Upper Arm Bushing and
Inner Dust Seal Removal and Installation
B831G22206014
Refer to “Front Suspension Upper / Lower Arm Removal
and Installation (Page 2B-9)”.
Removal
1) Remove the following parts from the front upper arm.
• Dust seal (1)
•Washer (2)
• Spacer (3)
2) Remove the front upper arm bushings along with
inner dust seals.
Special tool
(A): 09923–73210 (Bearing remover)
(B): 09930–30104 (Rotor remover slide
shaft)
Installation
1) Install the front upper arm bushings and inner dust
seals with the special tool and suitable socket
wrench.
NOTE
Position the bushings and dust seals by
referring to “Front Suspension Assembly
Construction (Page 2B-2)”.
CAUTION
!
The removed bushings and dust seals must
be replaced with new ones.
Special tool
(A): 09941–34513 (Steering race installer)
1
2
2
I831G1220051-01
1
1
2
3
2
I831G1220052-01
(A)
(B)
I831G1220053-01
(A)
I831G1220054-01
