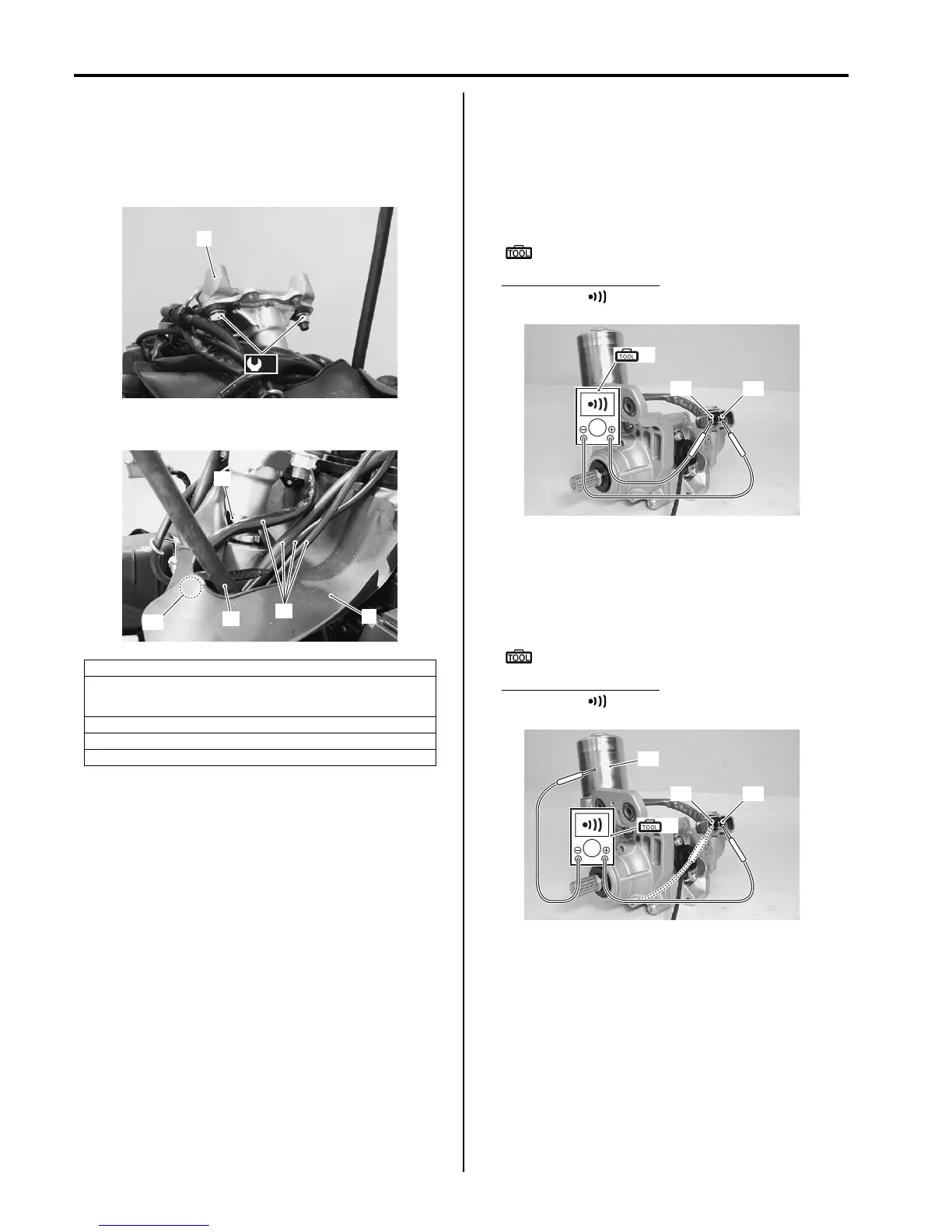

6C-53 Power Assisted Steering System:
• Install the handlebar holder (8) and tighten the nuts to
the specified torque.
Tightening torque
Handlebar holder nut (e): 60 N·m (6.0 kgf-m, 43.5
lbf-ft)
• Install the center cover (9).
• Install the auxiliary headlight. Refer to “Auxiliary
Headlight Removal and Installation in Section 9B in
related manual”.
• Install the front fender. Refer to “Front Side Exterior
Parts Removal and Installation in Section 9D in
related manual”.
• Install the handlebars. Refer to “Handlebars Removal
and Installation (LT-A750XP/ZK9) in Section 6B
(Page 6B-3)”.
• Install the combination meter. Refer to “Combination
Meter Removal and Installation in Section 9C in
related manual”.
EPS Motor Inspection (LT-A750XP/ZK9)
B931G46306005
1) Disconnect the EPS motor coupler.
2) First, check for insulation with the tester between
terminals “A” and “B”.
If continuity does not exist, replace the EPS body
assembly with a new one.
Special tool
(A): 09900–25008 (Multi circuit tester set)
Tester knob indication
Continuity ( )
3) Next, check for insulation with the tester between
terminal “A” and body ground “C” and terminal “B”
and body ground “C”.
If continuity is found, replace the EPS body
assembly with a new one.
Special tool
(A): 09900–25008 (Multi circuit tester set)
Tester knob indication
Continuity ( )
9. Center cover
10. Wiring harness (Left handlebar switch/Parking rear brake switch/
Parking rear brake light switch), (Emergency switch (For P-17) and
horn switch (For P-17, 24))
11. Parking/Rear brake cable
12. Steering shaft
“A”: Hooked point
8
(e)
I931G3630063-02
11
11
10
“A”
9
I931G3630064-02
“A”“B”
(A)
I931H1630107-02
“A”
“C”
“B”
(A)
I931H1630108-02
