Rear Brakes: 4C-1
Brake
Rear Brakes
Precautions
Precautions for Rear Brake
B831G24300001
WARNING
!
When servicing the rear brake system, place the vehicle on a level ground and support the vehicle with
a jack.
Repair Instructions

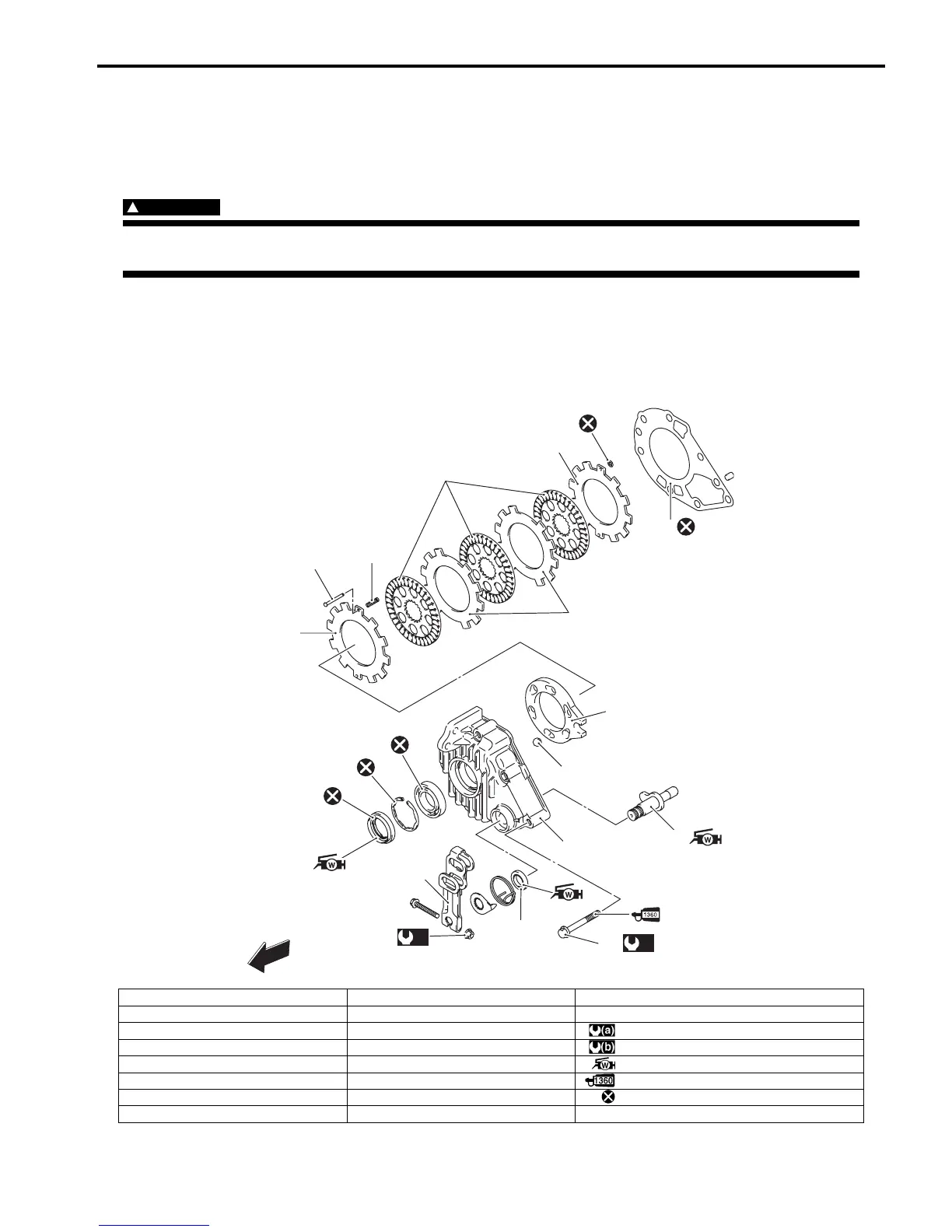

Rear Brake Components
B831G24306001
1
2
3
5
4
7
8
9
10
11
12
13
16
(a)
17
(b)
18
15
14
FWD
3
6
I831G1430001-06
1. Friction plate 9. Ball 17. Rear brake cam lever nut
2. Separator plate 10. Rear brake case 18. Rear brake case mounting bolt
3. Side plate 11. Bearing : 11 Nâ‹…m (1.1 kgf-m, 8.0 lb-ft)
4. Side plate pin 12. Snap ring : 26 Nâ‹…m (2.6 kgf-m, 19.0 lb-ft)
5. Side plate spring 13. Oil seal : Apply water resistance grease.
6. Side plate stopper 14. Rear brake cam shaft : Apply thread lock to the thread part.
7. Gasket 15. Oil seal : Do not reuse.
8. Pressure plate 16. Rear brake cam lever
