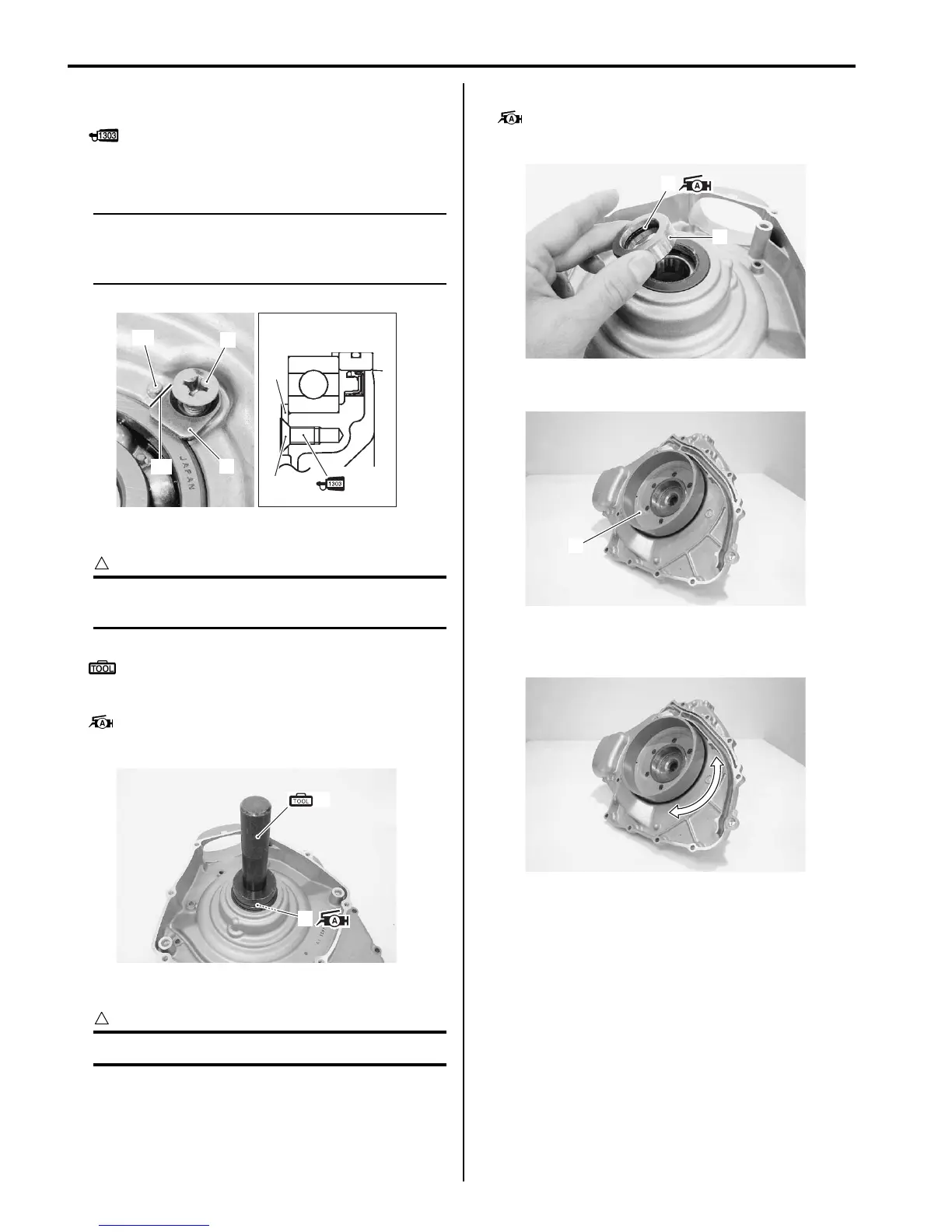

5A-20 Automatic Transmission:
• Apply a small quantity of thread lock to the bearing
retainer screws (2), and tighten them securely.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
NOTE
• When installing the bearing retainer (3),
align the convex part “A” of clutch housing
case with the edge “B” of bearing retainer.
• Install the oil seal (4) with the special tool.
CAUTION
!
The removed oil seal (4) must be replaced
with a new one.
Special tool
(A): 09913–70210 (Bearing installer set)
• Apply grease to the rip of the oil seal (4).
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Install the collar (5).
CAUTION
!
Replace a O-ring (6) with a new one.
• Apply grease to the O-ring (6).
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Install the clutch housing (7).
• After installed the clutch housing, check if the clutch
housing rotates smoothly.
Clutch Parts Inspection
B831G25106013
Refer to “Clutch Housing Case Disassembly and
Assembly (Page 5A-19)”.
2
3
“A”
“B”
3
2
I831G1510080-02
(A)
4
I831G1510081-01
6
5
I831G1510082-01
7
I831G1510083-01
I831G1510052-01
