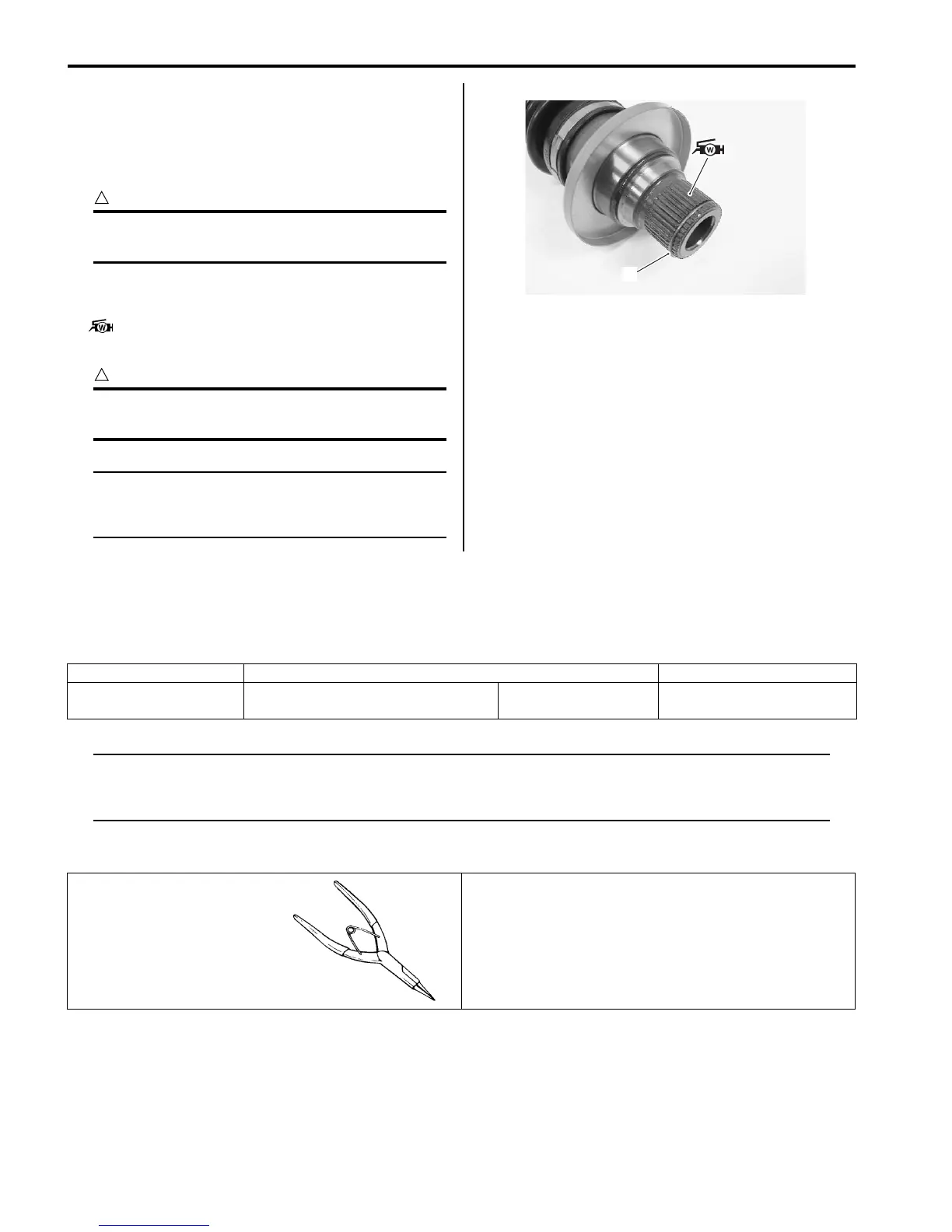

3A-7 Drive Chain / Drive Train / Drive Shaft:
Installation
Install the rear drive shaft in the reverse order of
removal. Pay attention to the following points:
• Install a new circlip (1) into the groove of drive shaft
spline.
CAUTION
!
The removed circlip must be replaced with a
new one.
• Apply grease to the spline of the rear drive shafts and
install the rear drive shafts to the rear final gear case.
: Grease 99000–25160 (Water resistance
grease)
CAUTION
!
Be careful not to damage the front drive case
oil seal.
NOTE
After installing both drive shafts, make sure
the circlips (1) is seated properly by pulling
both inboard joints lightly.
Rear Drive Shaft Disassembly and Assembly
B831G23106007
Refer to “Rear Drive Shaft Assembly Removal and
Installation (Page 3A-6)”.
Rear drive shaft disassembly and assembly as the same
manner of front drive shaft.
Rear Drive Shaft Inspection
B831G23106008
Refer to “Rear Drive Shaft Assembly Removal and
Installation (Page 3A-6)”.
Rear drive shaft inspection as the same manner of front
drive shaft.
Special Tools and Equipment
Recommended Service Material
B831G23108001
NOTE
Required service material is also described in the following.
“Front Drive Shaft Components (Page 3A-1)”
“Rear Drive Shaft Components (Page 3A-6)”
Special Tool
B831G23108002
1
I831G1310021-04
Material SUZUKI recommended product or Specification Note
Grease Water resistance grease P/No.: 99000–25160 )(Page 3A-2) / )(Page 3A-
7)
09900–06107
Snap ring pliers
)(Page 3A-3) / )(Page 3A-
4)
