3A-1 Drive Chain / Drive Train / Drive Shaft:

Driveline / Axle

Drive Chain / Drive Train / Drive Shaft

Diagnostic Information and Procedures

Drive Shaft Symptom Diagnosis

B831G23104001

Repair Instructions

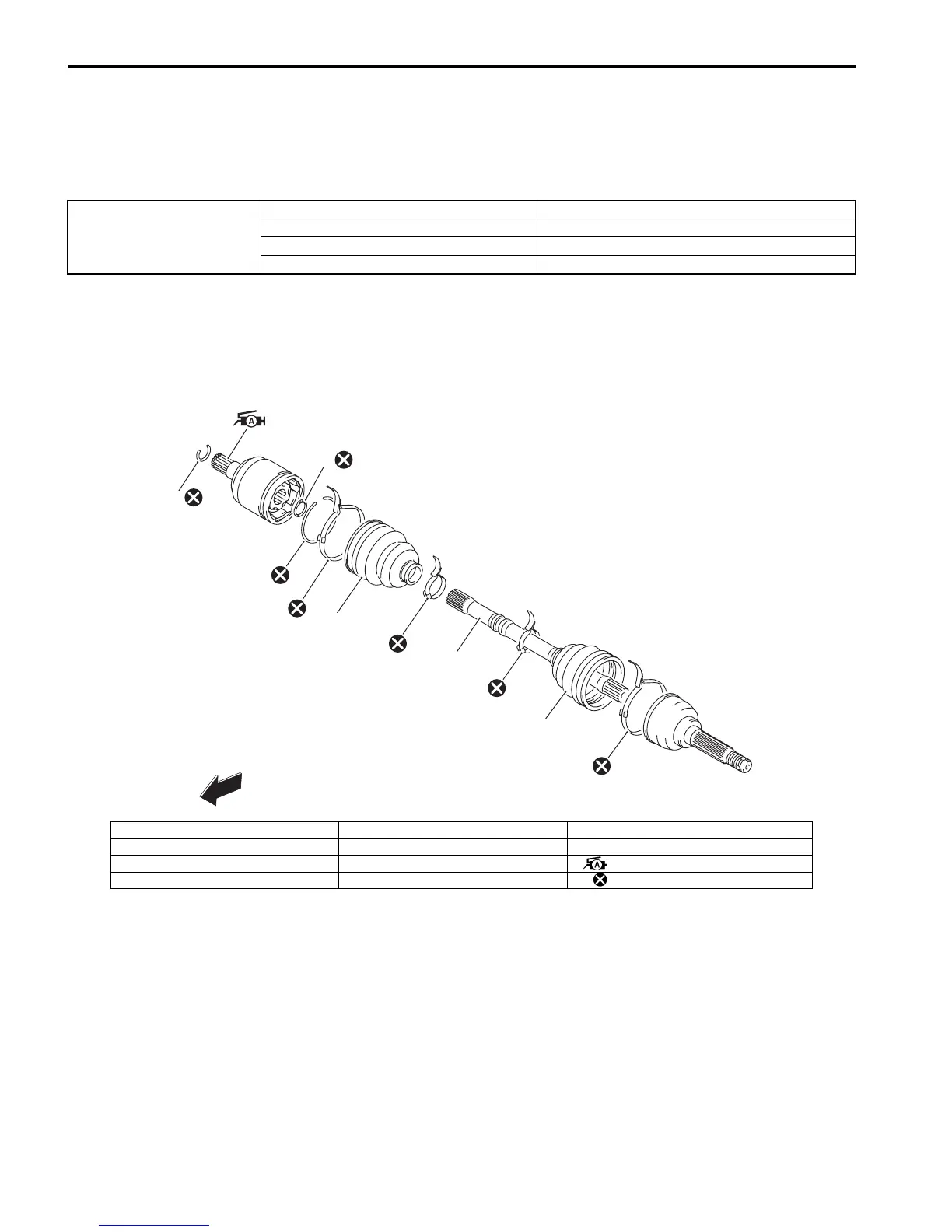

Front Drive Shaft Components

B831G23106001

Condition Possible cause Correction / Reference Item

Noisy Drive Shaft Worn drive shaft joints. Replace.

Worn wheel hub bearings. Replace.

Loose wheel nuts. Tighten.

FWD

I831G1310001-05

1. Circlip 5. Inner boot 9. Outer boot

2. Snap ring 6. Inner boot band (Small) 10. Outer boot band (Large)

3. Stopper ring 7. Drive shaft : Apply grease.

4. Inner boot band (Large) 8. Outer boot band (Small) : Do not reuse.
