1D-7 Engine Mechanical:

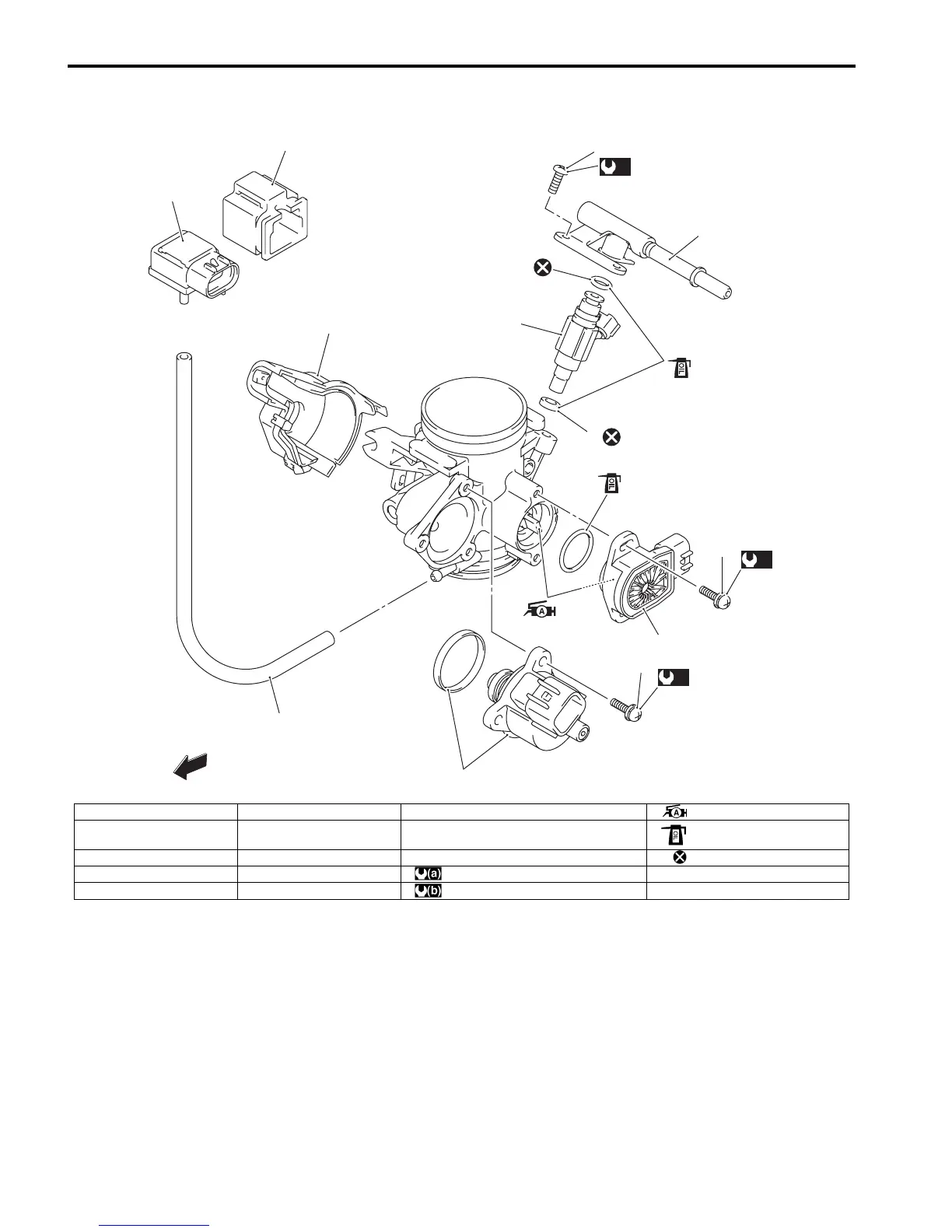

Throttle Body Components
B831G21406008
FWD
FWD
1
2
3
6
7
4
(a)
(b)
8
9
13
11
12
10
(a)
5
I831G1140016-05
1. TP sensor 6. Fuel injector 11. TP sensor mounting screw : Apply grease.
2. ISC valve 7. Cushion seal 12. ISC valve mounting screw : Apply engine oil.
3. IAP sensor 8. Vacuum hose 13. Fuel delivery pipe mounting screw : Do not reuse.
4. Fuel delivery pipe 9. Throttle linkage cover : 2 N⋅m (0.2 kgf-m, 1.5 Ib-ft)
5. O-ring 10. IAP sensor cover : 5 N⋅m (0.5 kgf-m, 3.5 Ib-ft)
