Propeller Shafts: 3D-17

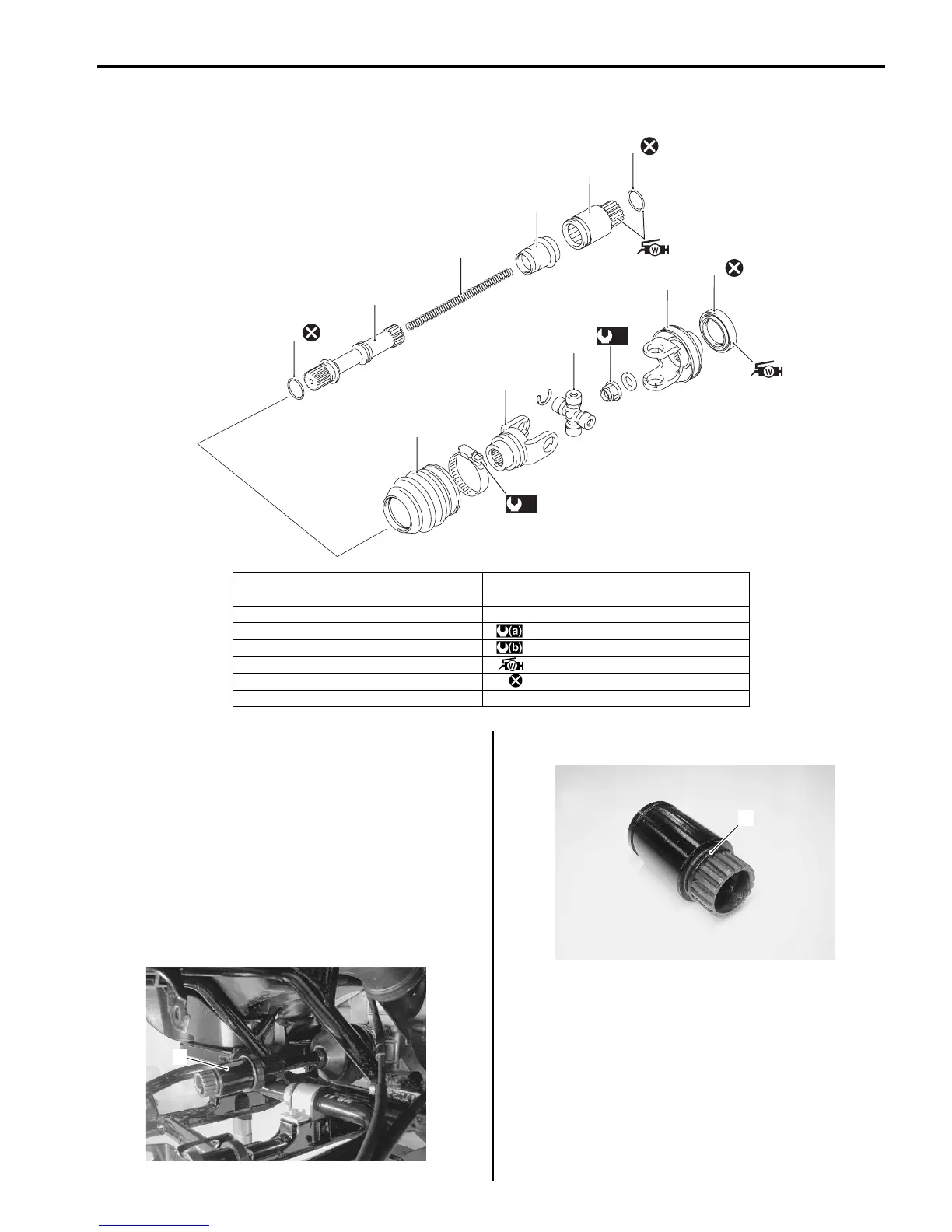

Rear Propeller Shaft Components
B831G23406013
Rear Propeller Shaft Removal and Installation
B831G23406014
Refer to “Rear Propeller Shaft Components (Page 3D-
17)”.
Refer to “Final Gear Construction in Section 3B
(Page 3B-22)”.
Removal
1) Remove the final gear assembly. Refer to “Final
Gear Assembly Removal and Installation in Section
3B (Page 3B-23)”.
2) Remove the rear propeller shaft joint (1).
3) Remove the O-ring (2).
6
5
4
3
2
1
7
8
9
10
11
(a)
(b)
I831G1340057-04
1. O-ring 9. Universal joint set
2. Rear propeller shaft joint 10. Rear output shaft yoke
3. Rear propeller shaft boot 11. Oil seal
4. Rear propeller shaft spring : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
5. Rear propeller shaft : 2 N⋅m (0.2 kgf-m, 1.5 lb-ft)
6. O-ring : Apply water resistance grease.
7. Rear propeller shaft boot : Do not reuse.
8. Rear propeller shaft yoke
1
I831G1340059-01
2
I831G1340060-01
To Next Page
