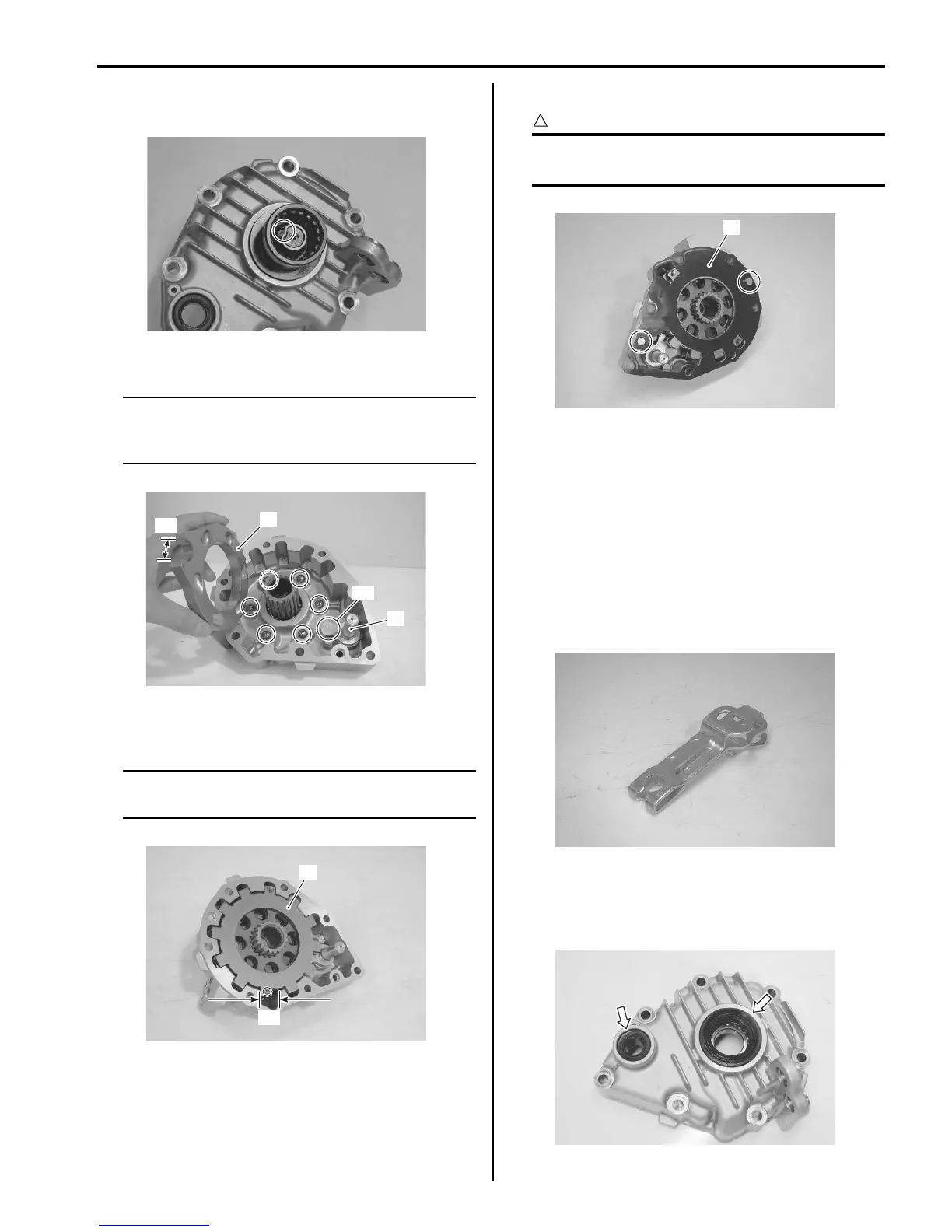

Rear Brakes: 4C-7
• Bend the collar of the nut to the notch on the shaft of
the rear propeller shaft coupling.
• Install the balls and rear brake pressure plate (14).
NOTE
When installing the rear brake pressure plate
(14), align its groove “A” with the cam “B” of
rear brake cam shaft (10).
• Install the rear brake plates (15), aligning the grooves
“C” of the case.
NOTE
Align the side plate pin with groove “C” of
the case as shown in the figure.
• Install the dowel pins and gasket (16).
CAUTION
!
The removed gasket must be replaced with a
new one.
Rear Brake Parts Inspection
B831G24306006
Refer to “Rear Brake Disassembly and Assembly
(Page 4C-3)”.
Rear Brake Cam Lever
Inspect the rear brake cam lever for wear or damage. If
any wear or damage is found, replace it with a new one
Inspect the rear brake cam lever return spring for wear
or damage. If any wear or damage is found, replace it
with a new one.
Oil Seal
Inspect the oil seals for wear or damage. If any wear or
damage is found, replace it with a new one.
I831G1430029-01
“A”
“B”
14
10
I831G1430030-04
15
“C”
I831G1430031-05
16
I831G1430032-03
I831G1430033-01
I831G1430034-01
