1F-13 Engine Cooling System:

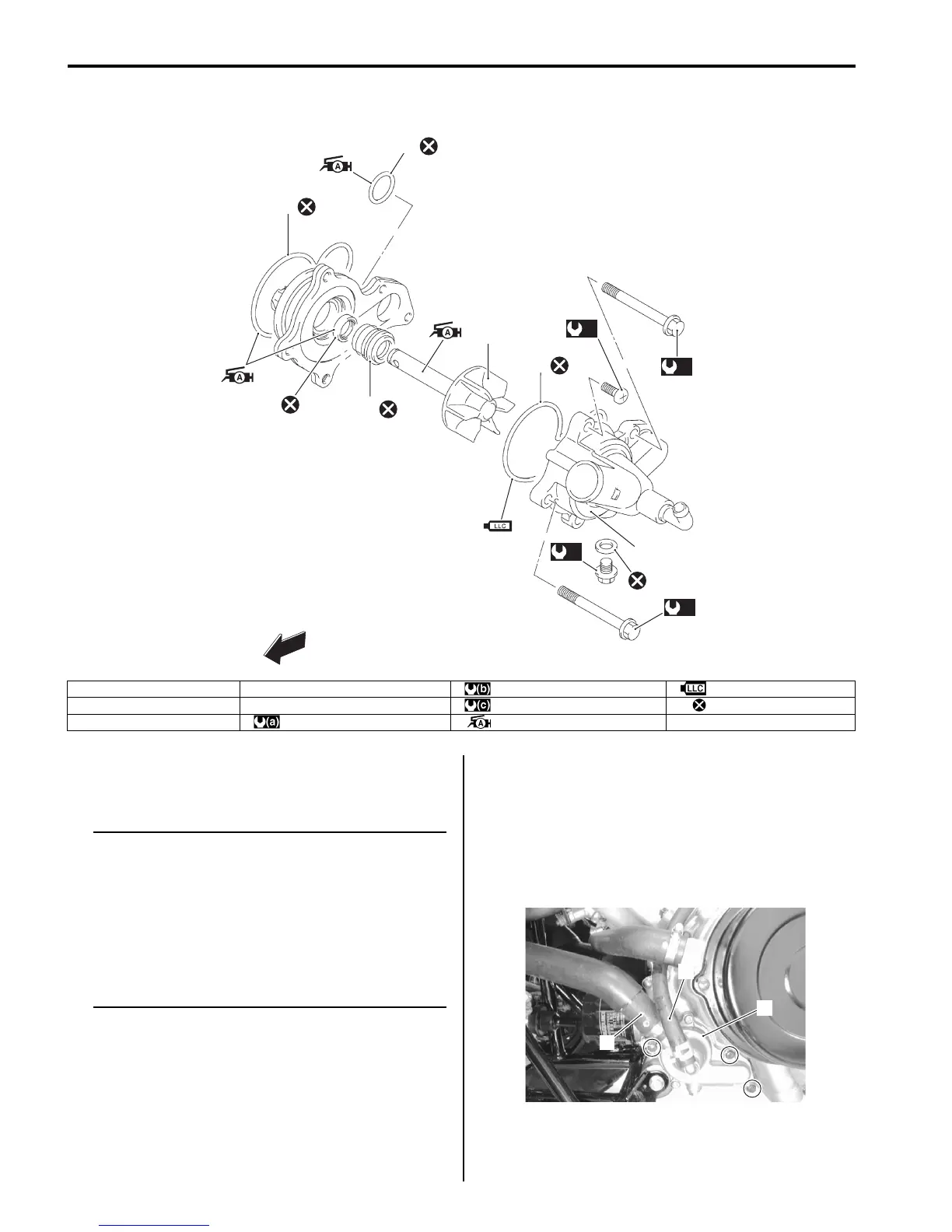

Water Pump Components
B831G21606016
Water Pump Removal and Installation
B831G21606017
Removal
NOTE
Before draining engine oil and engine
coolant, inspect engine oil and coolant
leakage between the water pump and
crankcase. If engine oil is leaking, visually
inspect the oil seal and O-ring. If engine
coolant is leaking, visually inspect the
mechanical seal and seal washer. Refer to
“Water Pump Related Parts Inspection
(Page 1F-18)”.
1) Remove the left inner fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
2) Remove the left mud guard. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
3) Drain engine oil and coolant. Refer to “Engine Oil
and Filter Replacement in Section 0B (Page 0B-10)”
and “Cooling System Inspection in Section 0B
(Page 0B-15)”.
4) Disconnect the outlet hose (1) and water bypass
hose (2).
5) Remove the water pump assembly (3).
1
2
3
2
2
4
5
FWD
(a)
(c)
(a)
(b)
I831G1160033-05
1. Water pump cover 4. Mechanical seal : 6 N⋅m (0.6 kgf-m, 4.5 lb-ft) : Apply engine coolant.
2. O-ring 5. Oil seal : 13 N⋅m (1.3 kgf-m, 9.5 Ib-ft) : Do not reuse.
3. Impeller : 10 N⋅m (1.0 kgf-n, 7.0 Ib-ft) : Apply grease.
1
2
3
I831G1160034-01
To Next Page
