Fuel System: 1G-2
General Description
Fuel System Description
B831G21701001

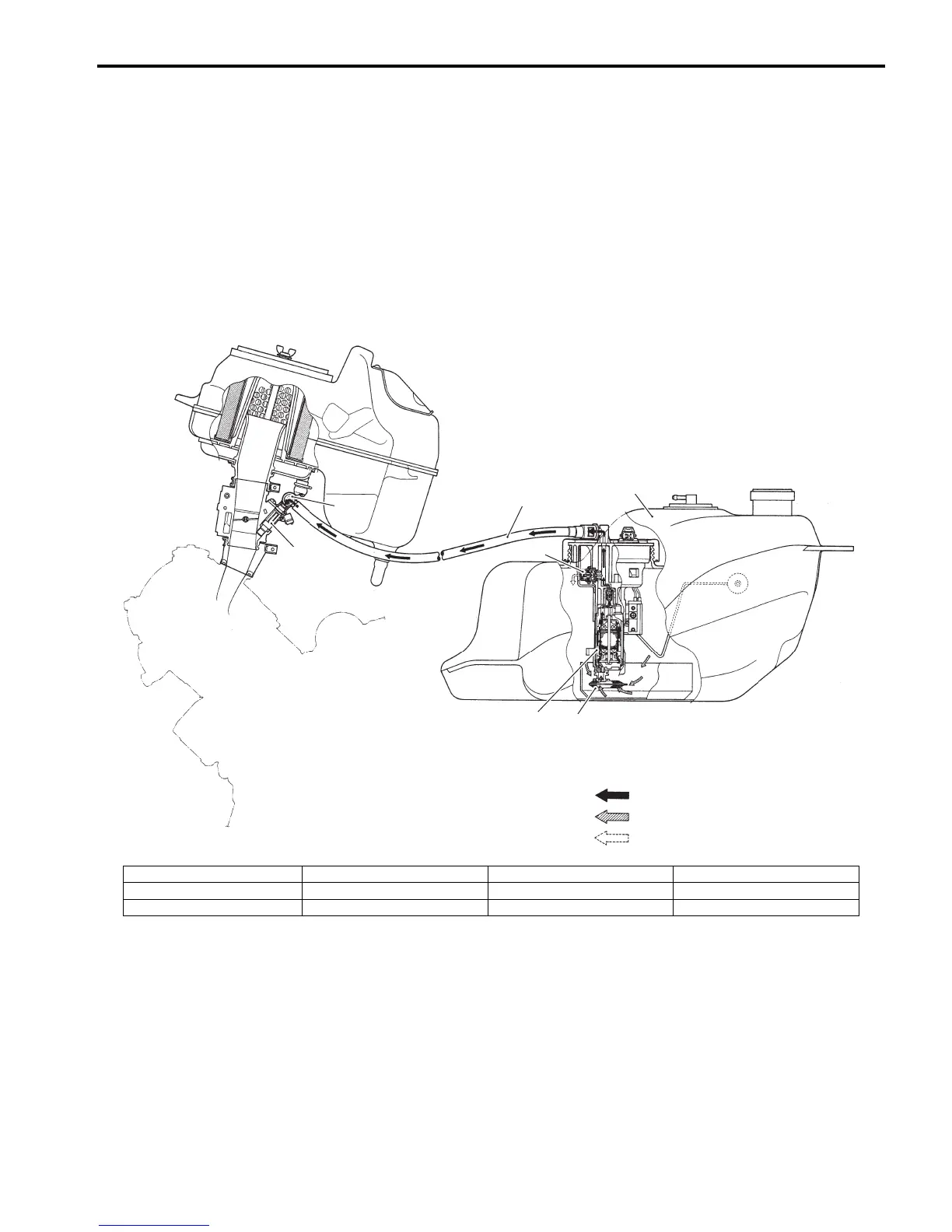

Fuel System
The fuel delivery system consists of the fuel tank (1), fuel pump (2), fuel mesh filter (3), fuel feed hose (4), fuel delivery
pipe (5) (including fuel injector) and fuel pressure regulator (6). There is no fuel return hose. The fuel in the fuel tank
(1) is pumped up by the fuel pump (2) and pressurized fuel flows into the injector (7) installed in the fuel delivery pipe
(5). Fuel pressure is regulated by the fuel pressure regulator (6). As the fuel pressure applied to the fuel injector (7)
(the fuel pressure in the fuel delivery pipe) is always kept at absolute fuel pressure of 300 kPa (3.0 kgf/cm
2
, 43 psi), the
fuel is injected into the throttle body in conic dispersion when the injector (7) opens according to the injection signal
from the ECM.
The fuel relieved by the fuel pressure regulator (6) flows back to the fuel tank (1).
1
3
5
6
7
4
2
“C”
“A”
“B”
I831G1170001-01
1. Fuel tank 4. Fuel feed hose 7. Fuel injector “C”: Relieved fuel
2. Fuel pump 5. Fuel delivery pipe “A”: Pressurized fuel
3. Fuel mesh filter 6. Fuel pressure regulator “B”: Before-pressurized fuel
