4C-2 Rear Brakes:
Rear Brake Friction Plate Inspection
B831G24306002
Refer to “Rear Brake Friction Plate Wear Limit
Inspection in Section 0B (Page 0B-20)”.
Rear Brake Friction Plate Replacement
B831G24306003
Refer to “Rear Brake Disassembly and Assembly
(Page 4C-3)”.
Rear Brake Assembly Removal and Installation
B831G24306004
Refer to “Final Gear Assembly Removal and Installation
in Section 3B (Page 3B-23)”.

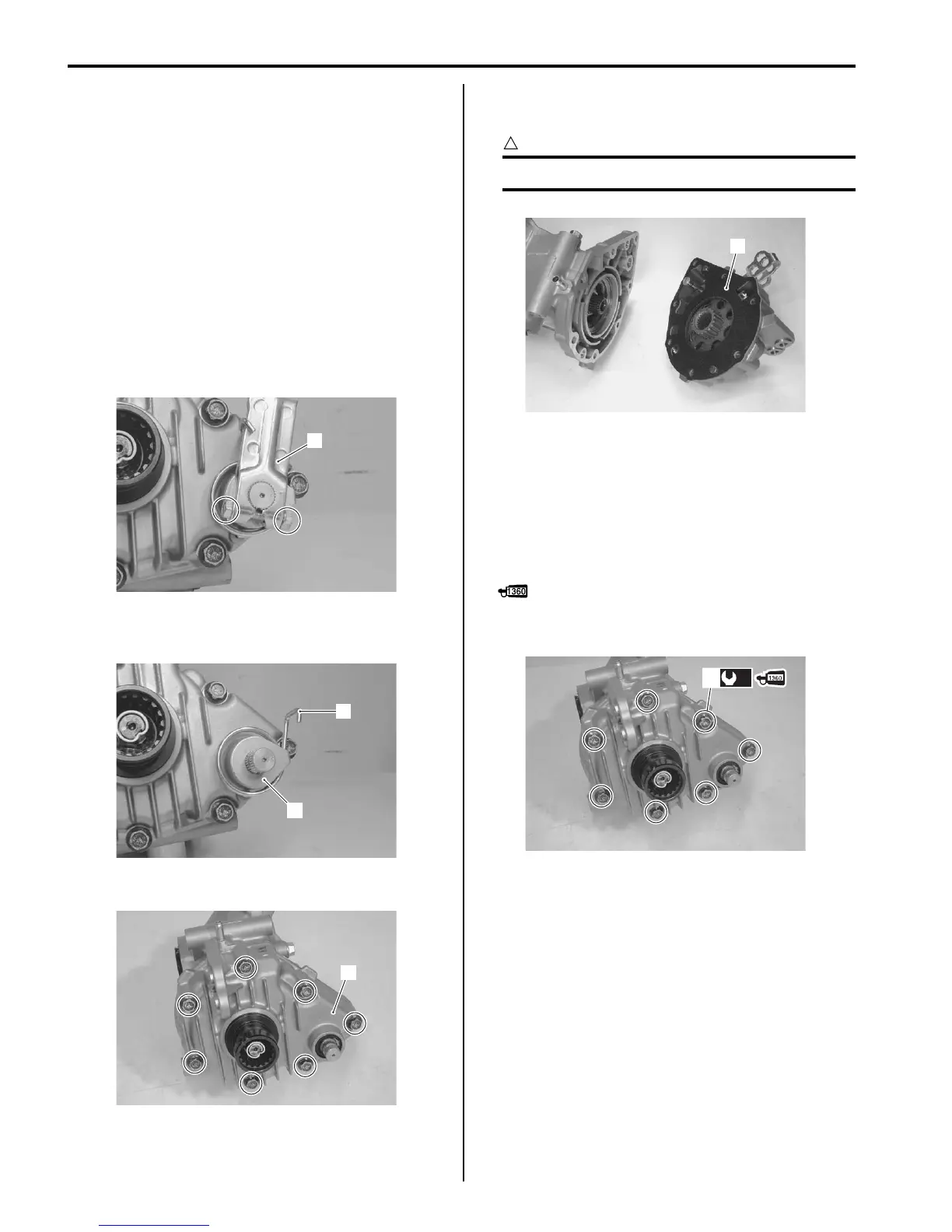

Removal
1) Remove the rear brake cam lever (1).
2) Remove the brake lining indicator (2) and rear brake
cam lever return spring (3).
3) Remove the rear brake case (4).
Installation
• Fit the rear brake case gasket (1).
CAUTION
!
Replace the gasket (1) with a new one.
• Install the rear brake case.
• Apply a small quantity thread lock to the rear brake
case bolts (2).
• Tighten the bolts diagonally to the specified torque.
Tightening torque
Rear brake case bolt (a): 26 N·m (2.6 kgf-m, 19.0
lb-ft)
: Thread lock cement 99000–32130
(THREAD LOCK CEMENT SUPER 1360 or
equivalent)
1
I831G1430003-01
3
2
I831G1430004-01
4
I831G1430005-01
1
I831G1430006-01
(a)
2
I831G1430007-02
To Next Page
