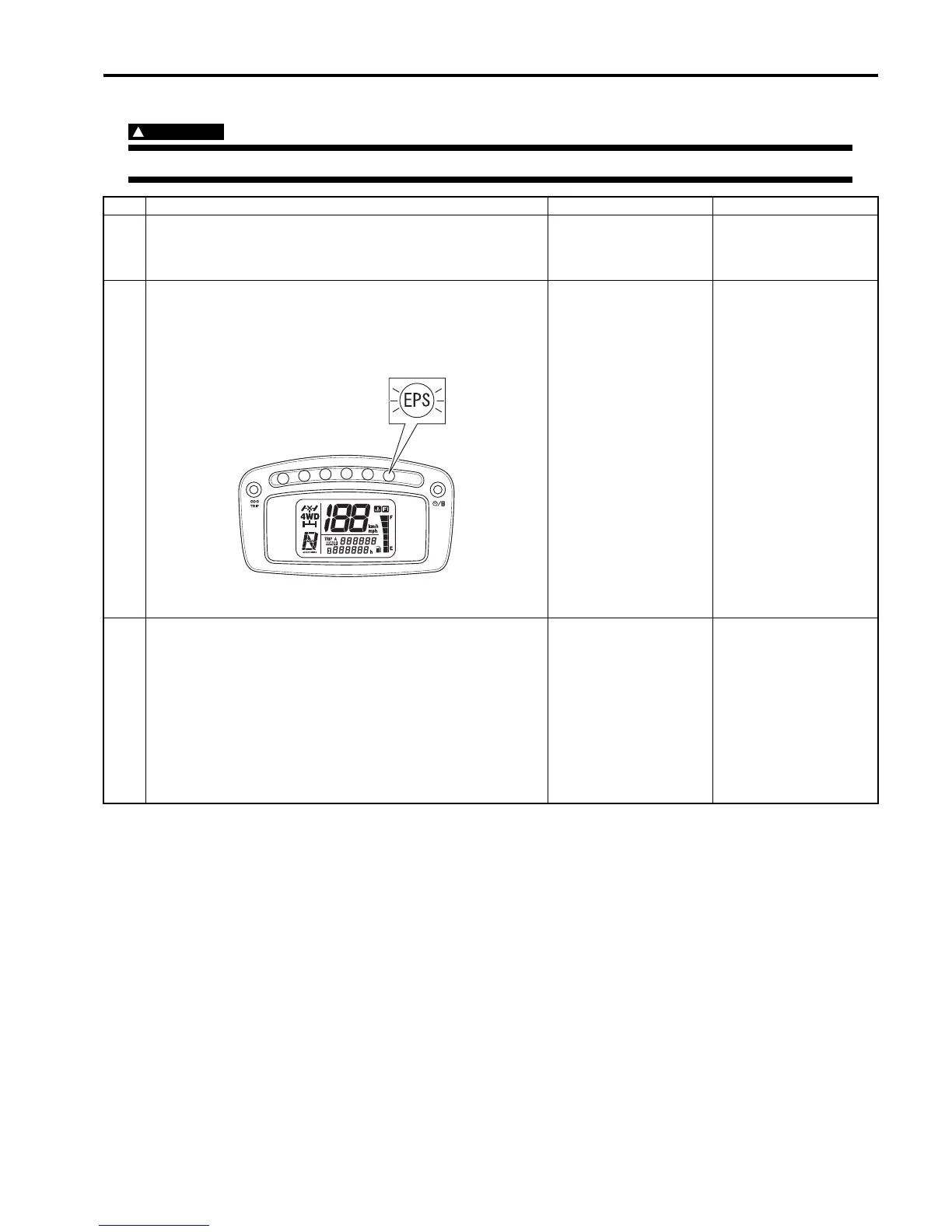

Power Assisted Steering System: 6C-12
EPS System Check (LT-A750XP/ZK9)
B931G46304003
WARNING
!
Carry out test drive in light traffic area to prevent an accident.
Step Action Yes No
1 1) Perform “Customer Complaint Analysis”.
Was customer complaint analysis performed according to
instruction?
Go to Step 2. Perform customer
complaint analysis.
2 1) Check for operation of the “EPS” warning lamp when
turning the ignition switch ON.
2) If OK, start engine, run it idle and check “EPS” warning
lamp remains ON continuously.
Is “EPS” warning lamp remains ON continuously?
Go to Step 3. • Go to Step 4.
• DTC output (Refer to
“DTC (Diagnostic
Trouble Code) Output
(LT-A750XP/ZK9)
(Page 6C-19)”.)
3 (The EPS indicator light lights up)
1) Start the engine.
Does the EPS indicator light go off?
Normal (No DTC exists) • DTC output (Refer to
“DTC (Diagnostic
Trouble Code) Output
(LT-A750XP/ZK9)
(Page 6C-19)”.)
• If DTC can not be
output (the EPS
indicator light does
not flash), go to Step
7.
I931H1630015-02
To Next Page
