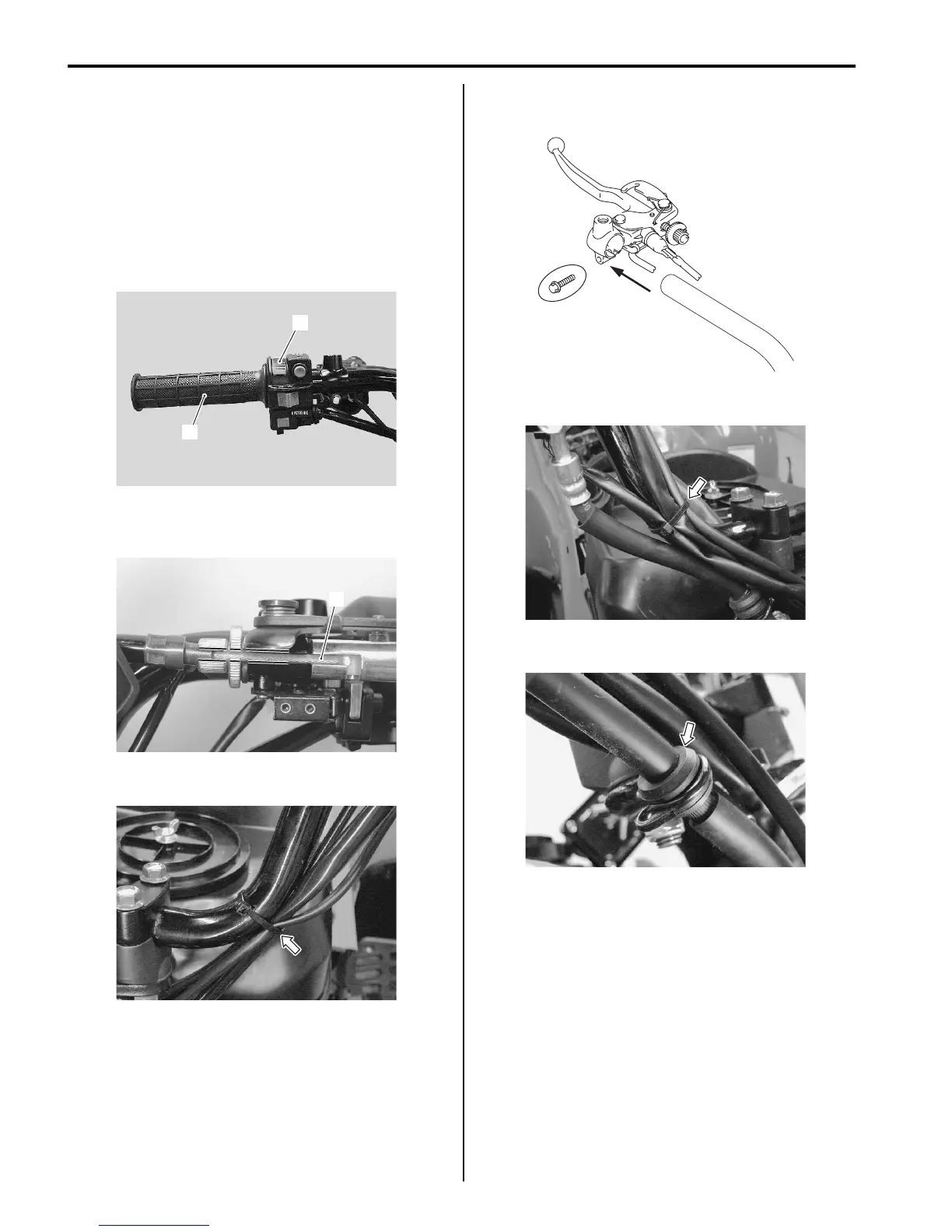

6B-3 Steering / Handlebar:
Handlebars Removal and Installation
B831G26206003
Removal
1) Remove the combination meter. Refer to
“Combination Meter Removal and Installation in
Section 9C (Page 9C-3)”.
2) Remove the following parts from left handlebar.
a) Left grip (1)
b) Left switch box (2)
3) Disconnect the parking brake cable (3) from parking
brake lever.
4) Remove the clamp.
5) Remove the parking brake lever from the handlebar
by removing mounting bolt.
6) Remove the clamp.
7) Disconnect the brake hose from the hose guide.
1
2
I831G1620003-03
3
I831G1620004-02
I831G1620005-02
I831G1620006-05
I831G1620007-02
I831G1620008-02
