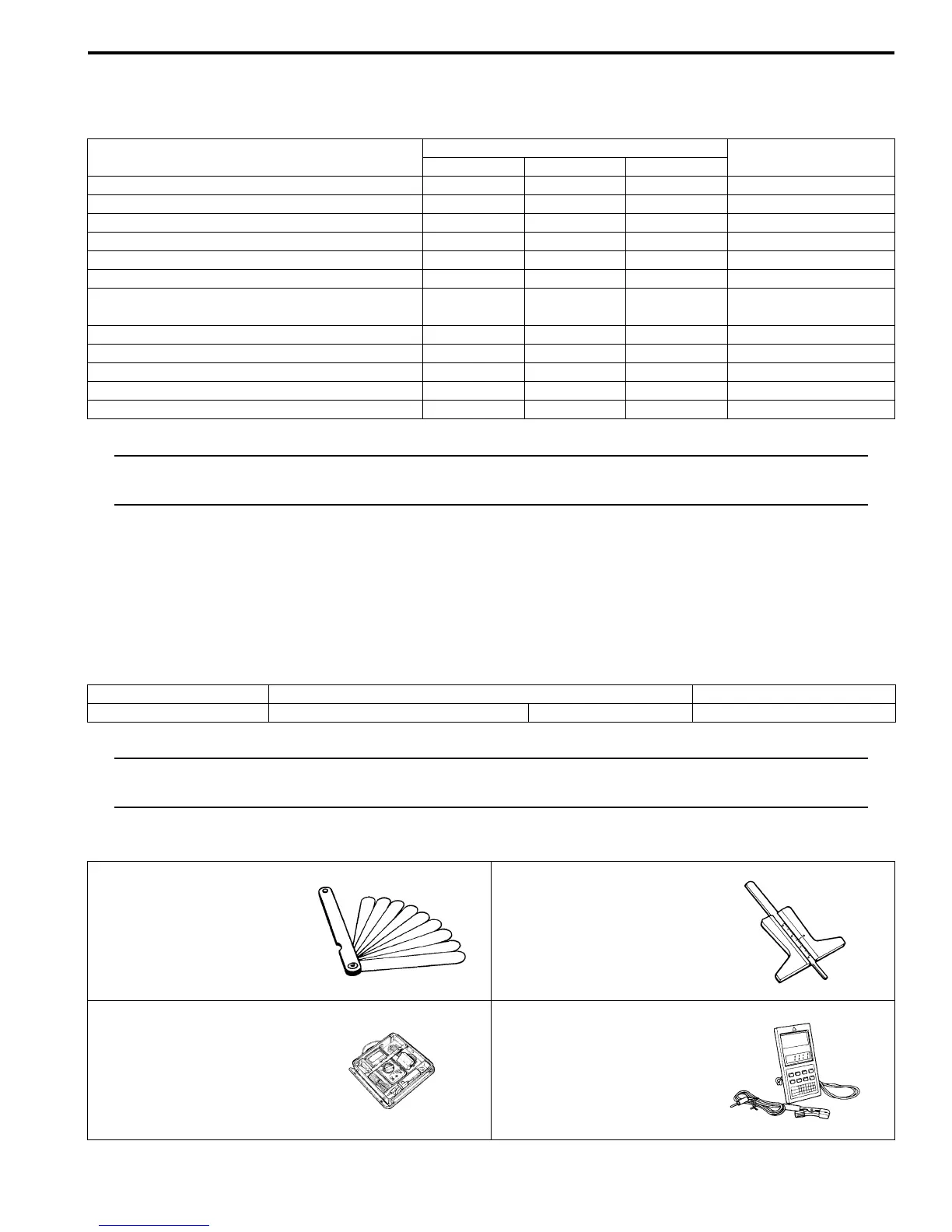

Maintenance and Lubrication: 0B-27
Specifications
Tightening Torque Specifications
B931G20207001
NOTE
The specified tightening torque is also described in the following.
“Chassis Bolt and Nut Inspection (Page 0B-23)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
Special Tools and Equipment
Recommended Service Material
B931G20208001
NOTE
Required service material is also described in the following.
“Lubrication Points (Page 0B-2)”
Special Tool
B931G20208002
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Exhaust pipe nut 23 2.3 16.5 )(Page 0B-4)
Muffler mounting bolt 23 2.3 16.5 )(Page 0B-4)
Muffler connecting bolt 23 2.3 16.5 )(Page 0B-4)
Oil drain plug 21 2.1 15.0 )(Page 0B-11)
Oil filter 20 2.0 14.5 )(Page 0B-12)
Front differential gear oil level plug 8.5 0.85 6.0 )(Page 0B-13)
Front differential gear oil filler plug
35 3.5 25.5
)(Page 0B-13) /
)(Page 0B-13)
Front differential gear oil drain plug 32 3.2 23.0 )(Page 0B-13)
Front differential gear oil level plug 8 0.8 5.7 )(Page 0B-13)
Final gear oil drain plug 23 2.3 16.5 )(Page 0B-14)
Engine coolant drain plug 13 1.3 9.5 )(Page 0B-16)
Tie-rod lock-nut 45 4.5 32.5 )(Page 0B-22)
Material SUZUKI recommended product or Specification Note
Brake fluid DOT 4 — )(Page 0B-18)
09900–20803 09900–20805
Thickness gauge Tire depth gauge
)(Page 0B-6) )(Page 0B-21)
09900–25008 09900–26006
Multi-circuit tester set Engine tachometer (solar
cell type)
)(Page 0B-26) )(Page 0B-26)
