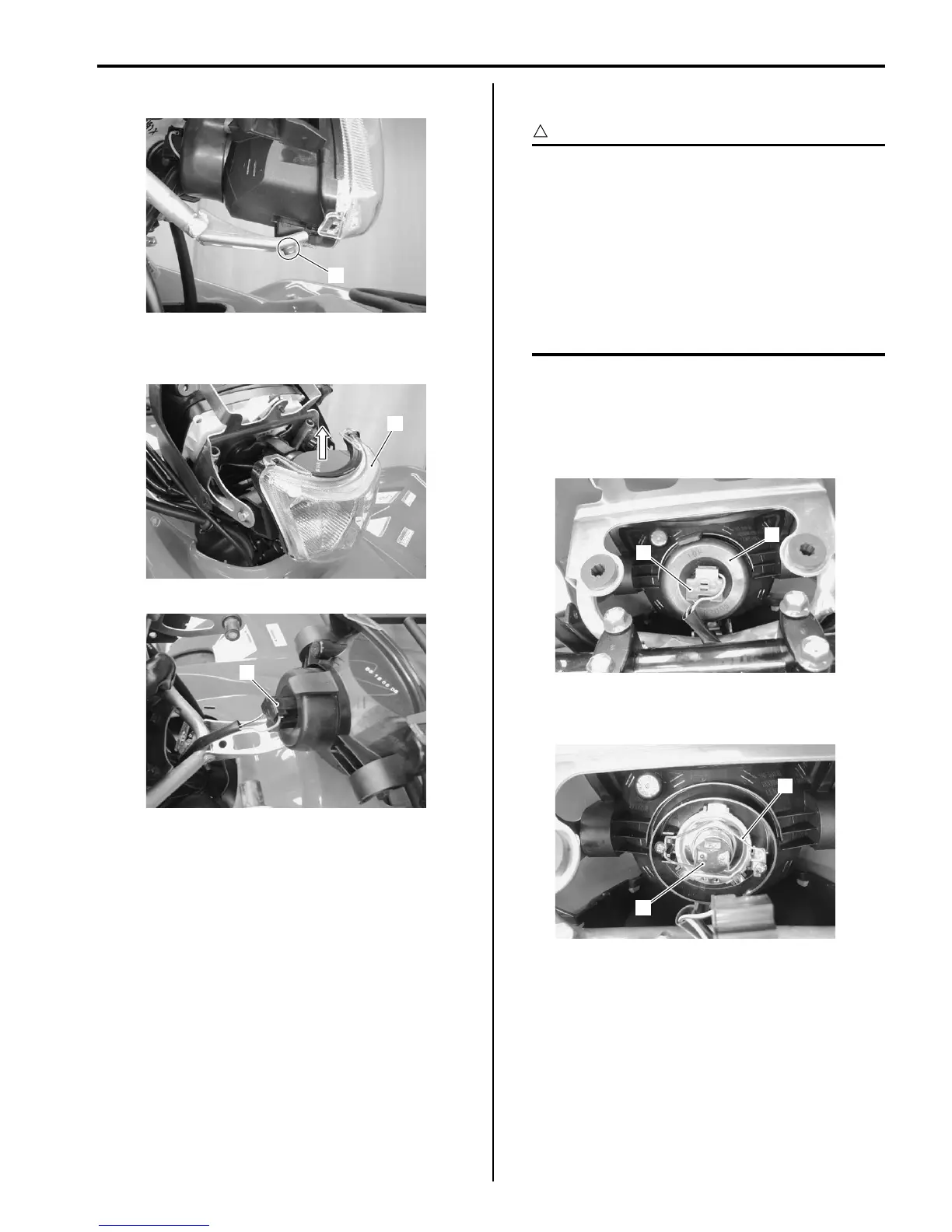

Lighting Systems: 9B-4
3) Remove the auxiliary headlight mounting bolt (4).
4) Disconnect the auxiliary headlight coupler (5) by
removing the auxiliary headlight assembly (6).
Installation
Install the auxiliary headlight in the reverse order of
removal.
Auxiliary Headlight Bulb Replacement
B831G29206007
CAUTION
!
• If you touch the bulb with your bare hands,
clean the bulb with a cloth moistened with
alcohol or soapy water to prevent
premature bulb failure.
• Do not use bulb other than those with
predetermined wattage.
• Remove the bulb when it gets cool, since it
may be heated to an extremely high
temperature when the headlight is turned
ON.
1) Remove the combination meter mounting bolt.
Refer to “Combination Meter Removal and
Installation in Section 9C (Page 9C-3)”.
2) Disconnect the auxiliary headlight coupler (1) and
remove the bulb socket cap (2).
3) Replace the auxiliary headlight bulb (3) by
unhooking the bulb holder spring (4).
4
I831G1920013-01
6
I831G1920014-01
5
I831G1920015-01
2
1
I831G1920016-01
3
4
I831G1920017-01
