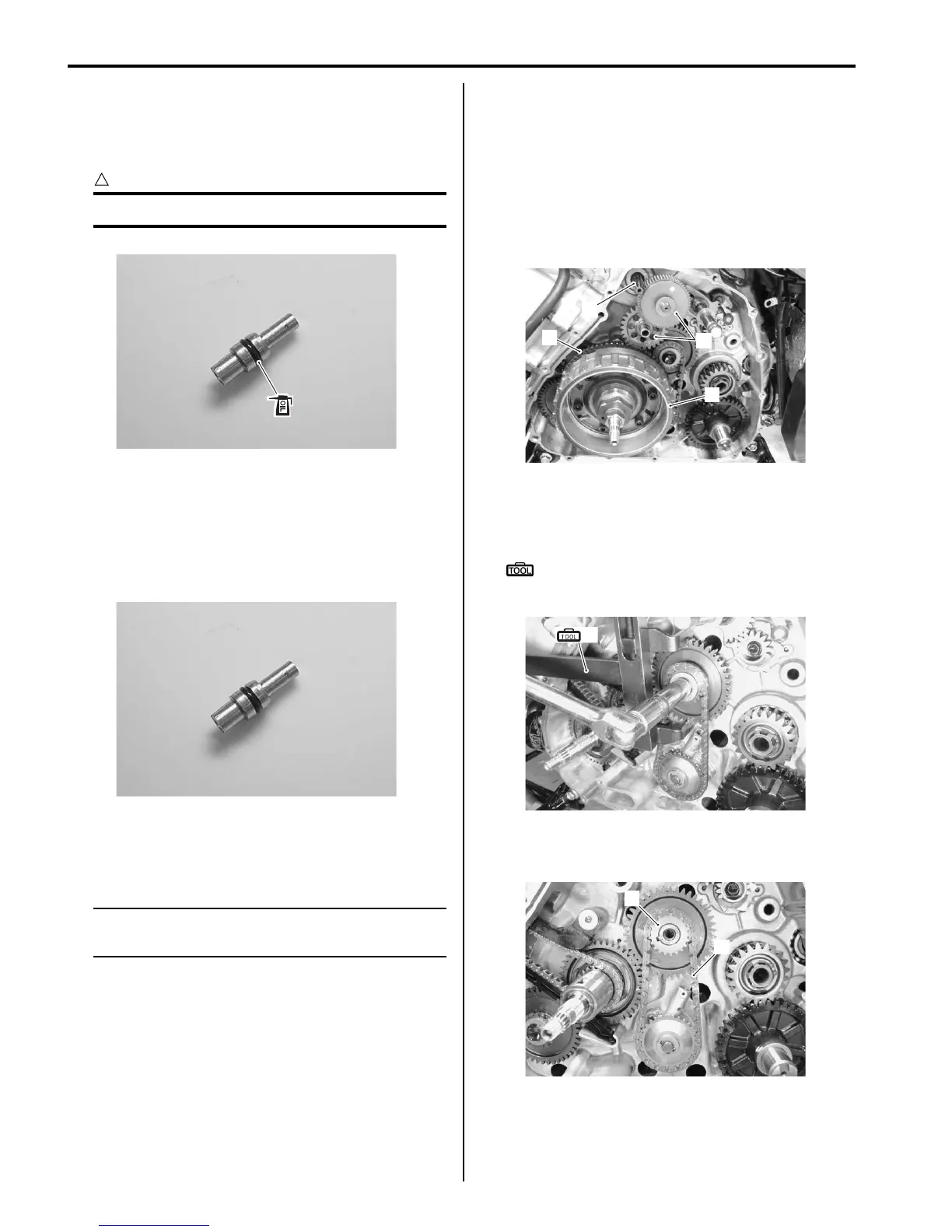

1E-5 Engine Lubrication System:
Installation
Install the oil jet in the reverse order of removal. Pay
attention to the following point:
• Apply engine oil to the O-ring.
CAUTION
!
Use a new O-ring to prevent oil leakage.
Oil Jet Inspection
B831G21506006
Refer to “Oil Jet Removal and Installation (Page 1E-4)”.
Make sure that the oil jet is not clogged. If it is clogged,
clean the oil passage using a wire of the proper size and
compressed air.
Oil Pump Removal and Installation
B831G21506007
Removal
NOTE
Do not drop the each parts into the
crankcase.
1) Drain the engine oil. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-10)”.
2) Remove the starter motor (1). Refer to “Starter Motor
Removal and Installation in Section 1I (Page 1I-4)”.
3) Remove the starter torque limiter and starter idle
gear (2). Refer to “Starter Torque Limiter / Starter
Clutch Removal and Installation in Section 1I
(Page 1I-10)”.
4) Remove the generator rotor assembly (3) and starter
driven gear (4). Refer to “Generator Removal and
Installation in Section 1J (Page 1J-4)” and “Starter
Torque Limiter / Starter Clutch Removal and
Installation in Section 1I (Page 1I-10)”.
5) Hold the crank balancer driven gear with the special
tool and remove the oil pump drive gear bolt and
washer.
Special tool
(A): 09920–53740 (Clutch sleeve hub
holder)
6) Remove the oil pump drive gear (5) along with the
chain (6).
I831G1150009-03
I831G1150010-02
2
1
3
4
I831G1150011-01
(A)
I831G1150012-01
5
6
I831G1150013-01
To Next Page
