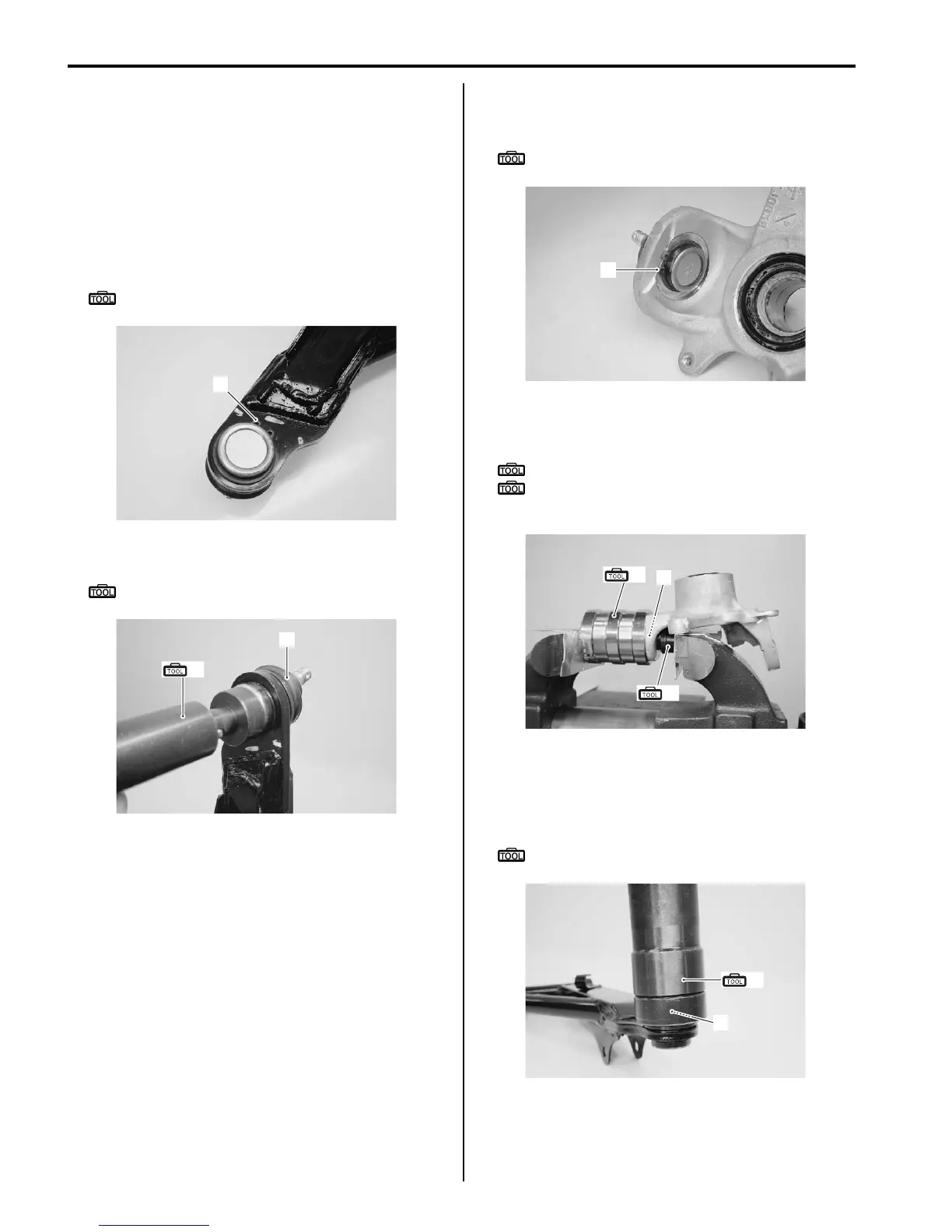

2B-11 Front Suspension:
Steering Knuckle End Removal and Installation
B831G22206012
Refer to “Front Wheel Hub / Steering Knuckle Removal
and Installation (Page 2B-4)” and “Front Suspension
Upper / Lower Arm Removal and Installation (Page 2B-
9)”.
Removal
Upper
• Remove the snap ring (1) with the special tool.
Special tool
: 09900–06107 (Snap ring pliers)
• Remove the knuckle end (2) with the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
Lower
• Remove the snap ring (1) with the special tool.
Special tool
: 09900–06107 (Snap ring pliers)
• Remove the front lower knuckle end (2) with the
special tools and vise as shown in the figure.
Special tool
(A): 09913–70210 (Bearing installer set)
(B): 09941–53610 (Front fork installer
hammer)
Installation
Upper
• Install the knuckle end (1) with the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
1
I831G1220041-01
(A)
2
I831G1220042-01
1
I831G1220043-01
(A)
(B)
2
I831G1220044-02
1
(A)
I831G1220045-01
To Next Page
