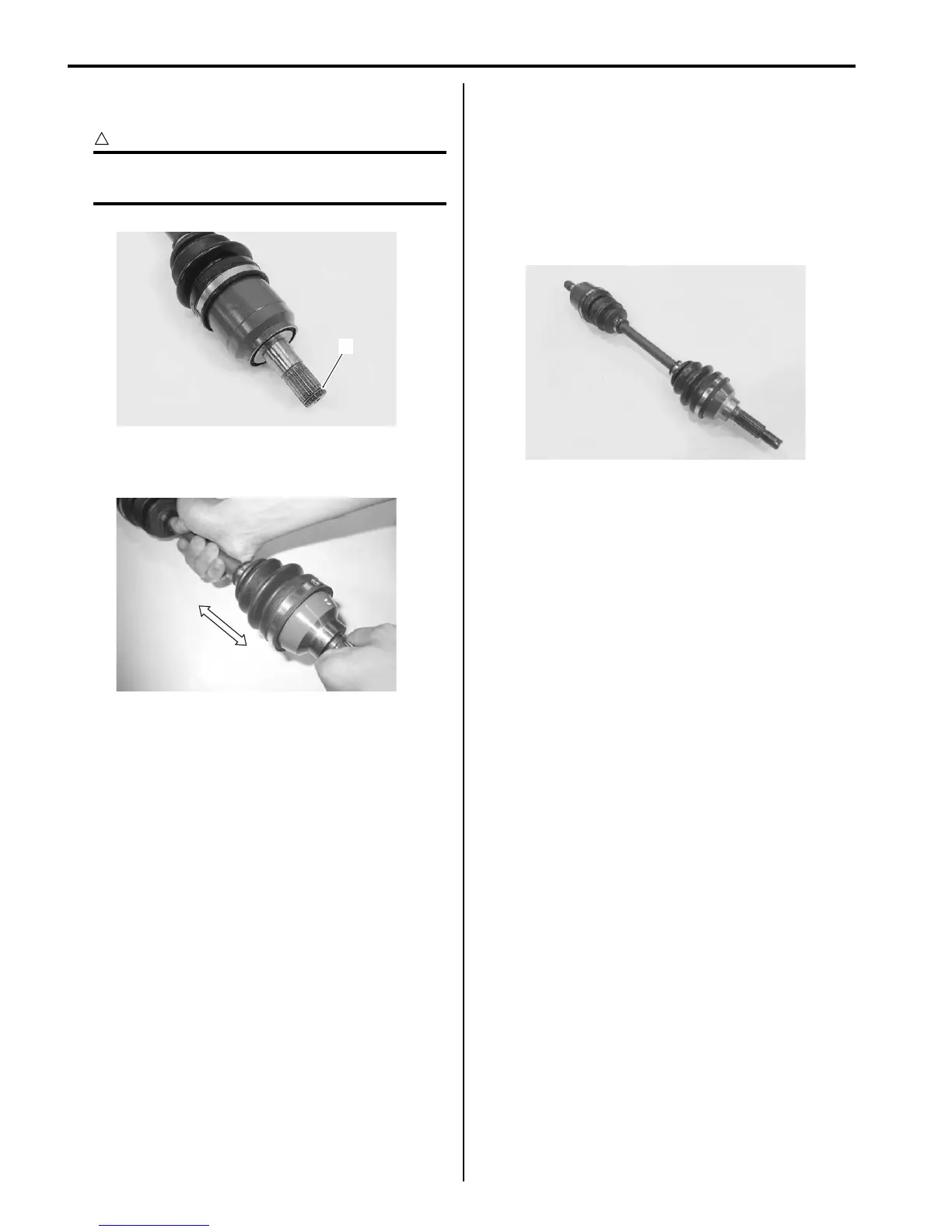

3A-5 Drive Chain / Drive Train / Drive Shaft:

8) Install the circlip (2) into the groove of front drive

shaft spline.

CAUTION

The removed circlip must be replaced with a

new one.

9) Inspect the axle play by using a push-and-pull

motion given to the axle shaft and wheel spindle.

Front Drive Shaft Inspection

B831G23106004

Inspect the front drive shaft in the following procedures:

1) Remove the front drive shaft assembly. Refer to

“Front Drive Shaft Assembly Removal and

Installation (Page 3A-2)”.

2) Inspect the boots, circlip and boot bands for wear or

damage. If any damages are found, replace them

with new ones.

3) Install the front drive shaft assembly. Refer to “Front

Drive Shaft Assembly Removal and Installation

(Page 3A-2)”.

I831G1310017-02

I831G1310018-01

I831G1310019-01
