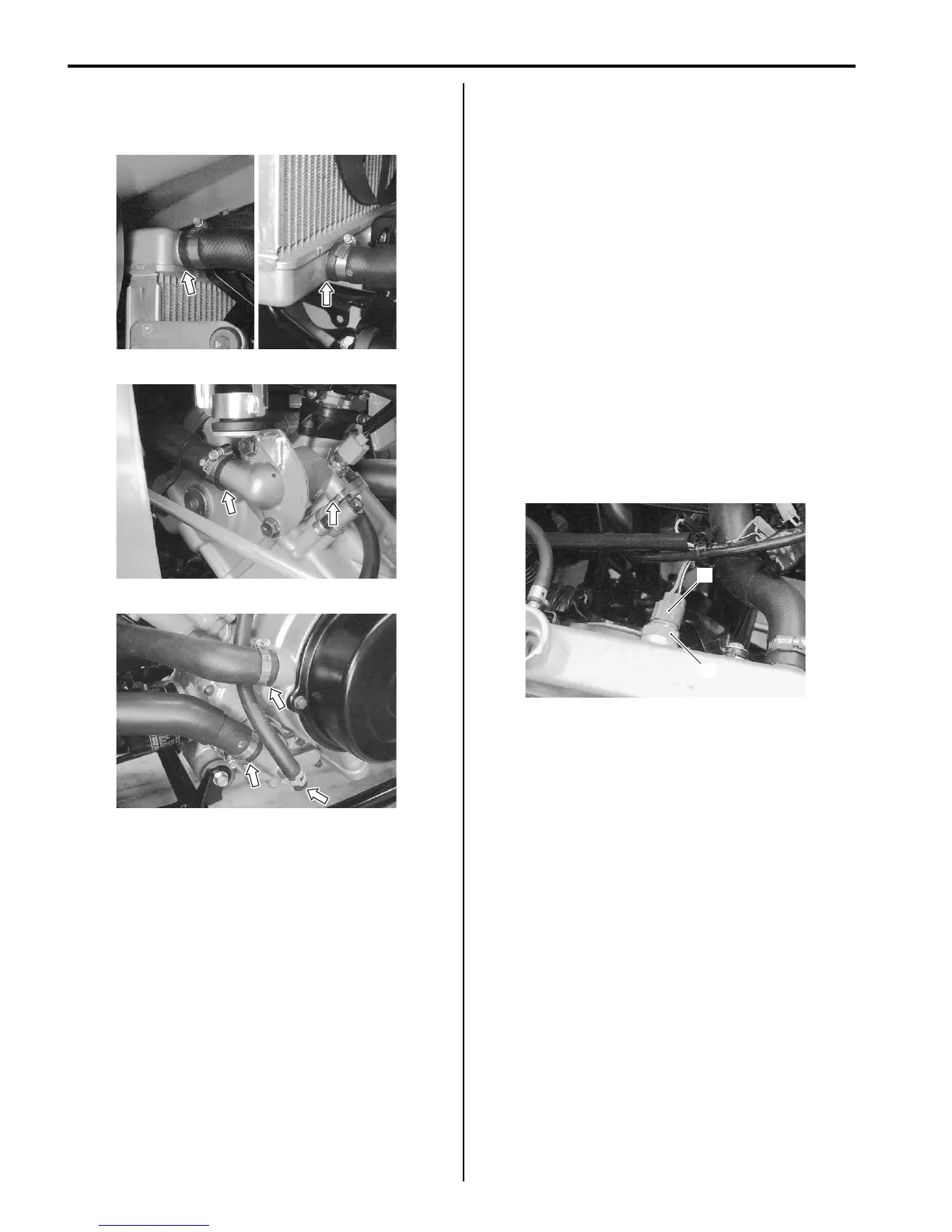

1F-9 Engine Cooling System:
3) Any leakage from the connecting section should be
corrected by proper tightening. Refer to “Water Hose
Routing Diagram (Page 1F-3)”.
4) After finishing the water hose inspection, reinstall the
removed parts.
ECT Sensor Removal and Installation
B831G21606010
Refer to “ECT Sensor Removal and Installation in
Section 1C (Page 1C-4)”.
ECT Sensor Inspection
B831G21606011
Refer to “ECT Sensor Inspection in Section 1C
(Page 1C-4)”.
Cooling Fan Thermo-switch Removal and
Installation
B831G21606012
Removal
1) Remove the front fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
2) Drain engine coolant. Refer to “Cooling System
Inspection in Section 0B (Page 0B-15)”.
3) Disconnect the cooling fan thermo-switch lead wire
coupler (1).
4) Remove the cooling fan thermo-switch (2).
I831G1160022-01
I831G1160023-01
I831G1160024-02
1
2
I831G1160025-02
To Next Page
