Automatic Transmission: 5A-3
Repair Instructions

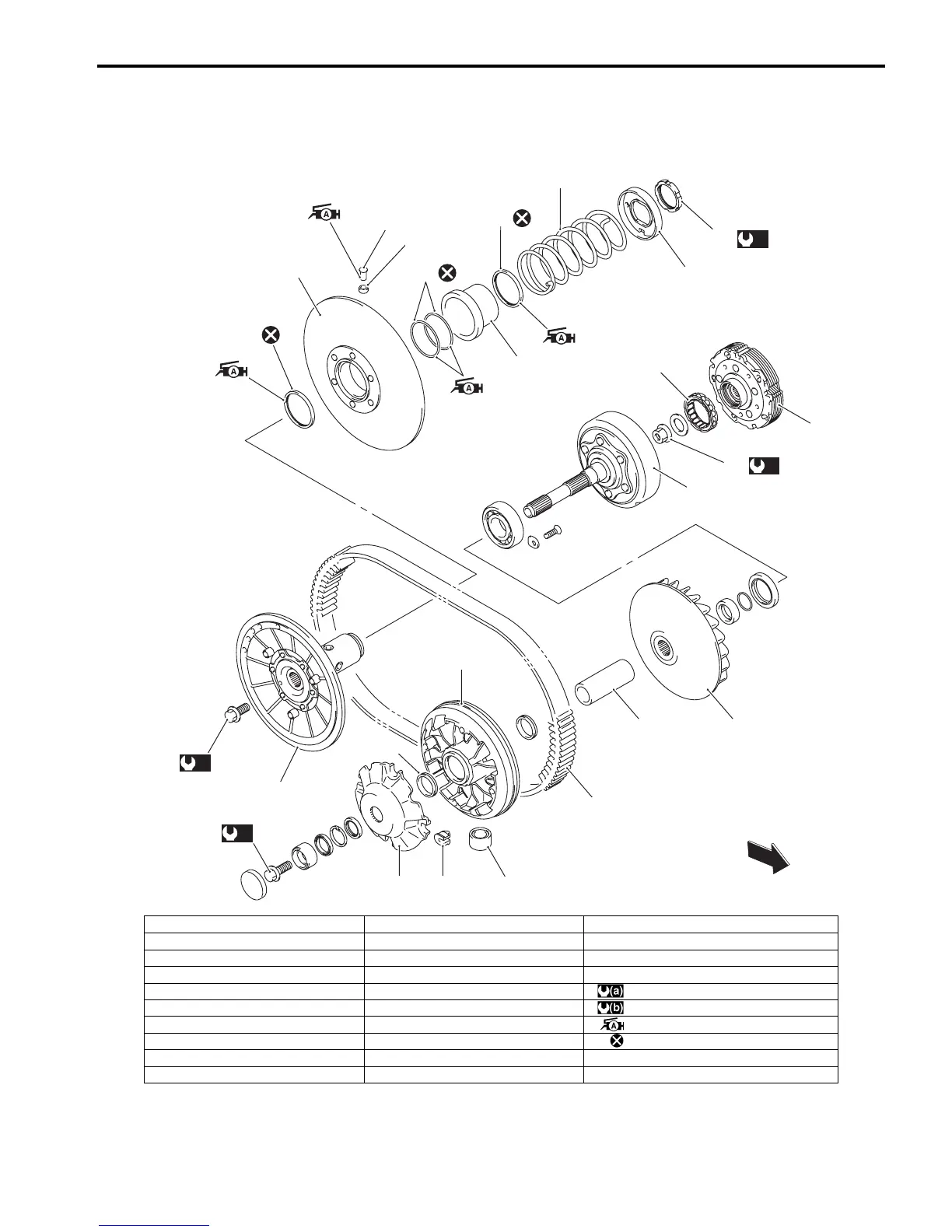

Automatic Transmission Components
B831G25106001
16
17
15
18
19
15
20
22
21
(a)
23
(b)
24
(a)
11
10
(a)
1
2 3
5
8
4 9
6
7
FWD
FWD
12
14
13
I831G1510002-03
1. Movable drive face bolt 11. Movable driven face bolt 21. Spring
2. Movable drive plate 12. Clutch housing 22. Spring plate
3. Damper 13. One way clutch 23. Movable driven face ring nut
4. Spacer 14. Clutch shoe assembly 24. Clutch shoe nut
5. Roller 15. Oil seal : 110 N⋅m (11.0 kgf-m, 79.5 lb-ft)
6. Oil seal 16. Movable driven face : 150 N⋅m (15.0 kgf-m, 108.5 lb-ft)
7. Movable drive face 17. Pin : Apply grease.
8. Drive V-belt 18. Spacer : Do not reuse.
9. Fixed drive face 19. O-ring
10. Fixed driven face 20. Spring seat
