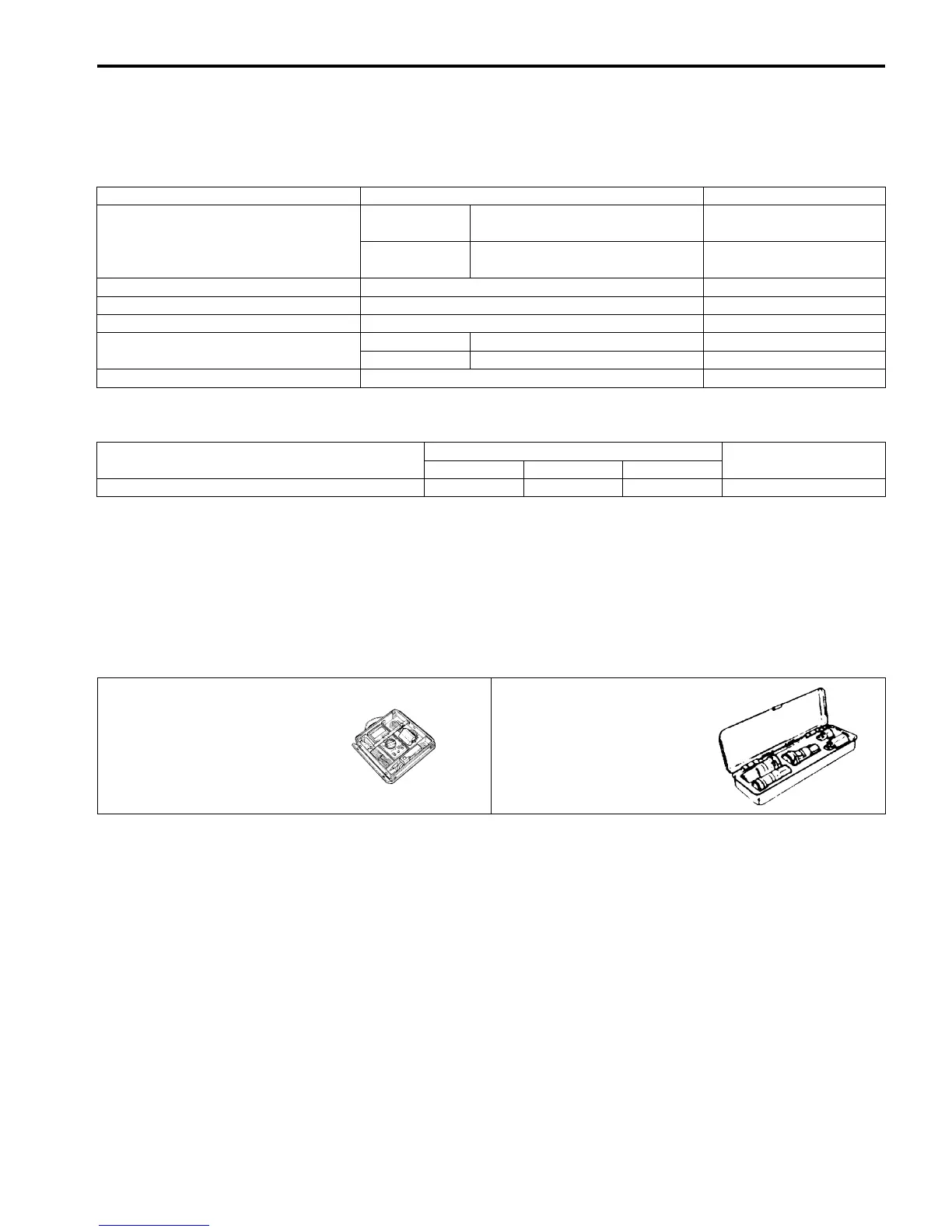

Ignition System: 1H-8
Specifications
Service Data
B831G21807001
Electrical
Unit: mm (in)
Tightening Torque Specifications
B831G21807002
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
Special Tools and Equipment
Special Tool
B831G21808001
Item Specification Note
Spark plug
Type
NGK: CR6E
DENSO: U20ESR-N
Gap
0.7 – 0.8
(0.028 – 0.031)
Spark performance Over 8 (0.3) at 1 atm.
CKP sensor resistance 150 – 250 Ω
CKP sensor peak voltage 5.0 V and more
Ignition coil resistance
Primary 0.1 – 0.6 Ω Terminal – Ground
Secondary 12 – 19 kΩ Plug cap – Terminal
Ignition coil primary peak voltage 80 V and more When cranking
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Spark plug 11 1.1 8.0 )(Page 1H-3)
09900–25008 09930–10121
Multi-circuit tester set Spark plug wrench set
)(Page 1H-4) / )(Page 1H-
5) / )(Page 1H-5) /
)(Page 1H-6) / )(Page 1H-
7)
)(Page 1H-3) / )(Page 1H-
3)
