Fuel System: 1G-10
Fuel Pump Disassembly and Assembly
B831G21706012
Refer to “Fuel Pump Assembly Removal and Installation
(Page 1G-9)”.
Disassembly

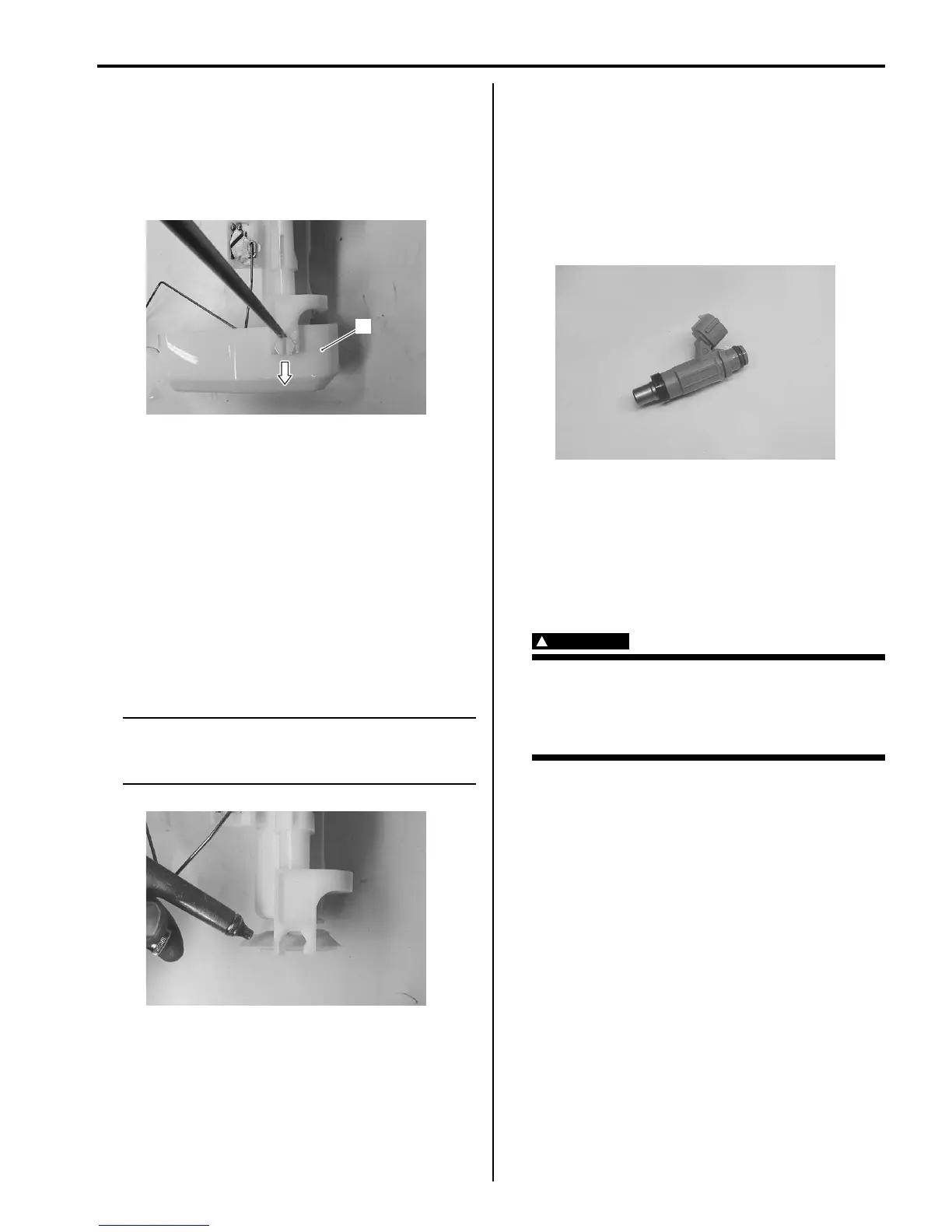

Remove the fuel cup holder (1) with a (–) screw driver.
Assembly
Assemble the fuel tank pump in the reverse order of the
disassembly.
Fuel Mesh Filter Inspection and Cleaning
B831G21706013
Inspect the fuel mesh filter in the following procedures:
1) Remove the fuel cup holder. Refer to “Fuel Pump
Disassembly and Assembly (Page 1G-10)”.
2) If the fuel mesh filter is clogged with foreign particles,
it hinders smooth gasoline flow resulting in loss of
engine power. Such a filter should be cleaned by
blowing with compressed air.
NOTE
When the fuel mesh filter is dirtied
excessively, replace the fuel mesh filter with
a new one.
3) After finishing the fuel mesh filter inspection, reinstall
the fuel cup holder and fuel pump assembly. Refer to
“Fuel Pump Assembly Removal and Installation
(Page 1G-9)”.
Fuel Injector Inspection and Cleaning
B831G21706014
Inspect the fuel injector in the following procedures:
1) Remove the fuel injector. Refer to “Fuel Injector /
Fuel Delivery Pipe Removal and Installation
(Page 1G-10)”.
2) Check the fuel injector filter for evidence of dirt and
contamination. If present, clean and check for
presence of dirt in the fuel lines and fuel tank.
3) Install the fuel injector. Refer to “Fuel Injector / Fuel
Delivery Pipe Removal and Installation (Page 1G-
10)”.
Fuel Injector / Fuel Delivery Pipe Removal and
Installation
B831G21706015
Removal
WARNING
!
• Spilled gasoline should be wiped off
immediately.
• Keep away from fire or spark.
• Work in a well-ventilated area.
1) Remove the front fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
2) Remove the air cleaner box. Refer to “Air Cleaner
Box Removal and Installation in Section 1D
(Page 1D-5)”.
3) Place a rug under the fuel feed hose (1) and
disconnect the fuel feed hose (1) from the fuel
delivery pipe.
1
I831G1170020-01
I831G1170021-01
I831G1170022-01
