Engine Electrical Devices: 1C-3

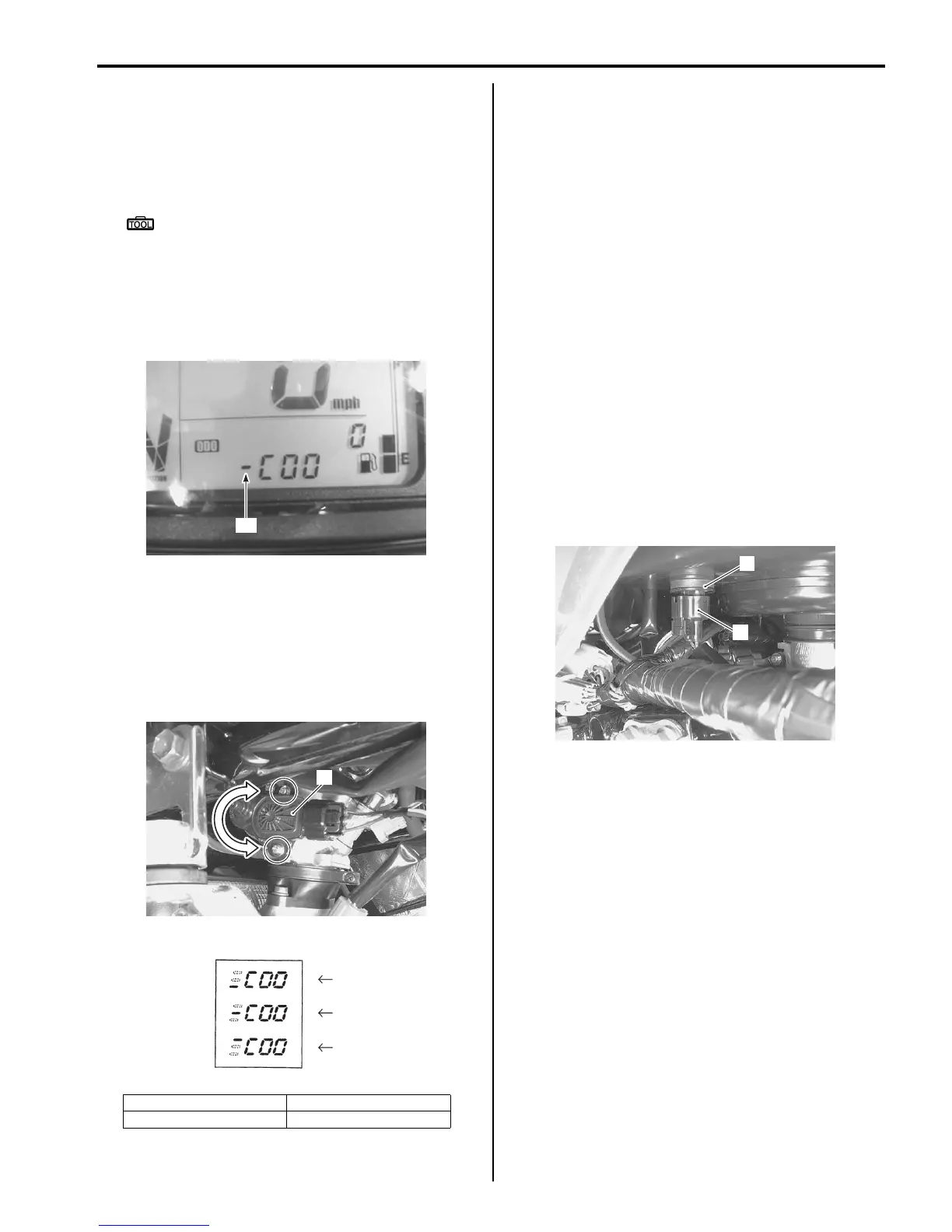

TP Sensor Adjustment
B831G21306008
Adjust the TP sensor in the following procedures:
1) Connect the special tool to the mode select switch.
Refer to “Self-Diagnostic Procedures in Section 1A
(Page 1A-11)”.
Special tool
: 09930–82720 (Mode select switch)
2) Warm up the engine and keep it running in idling
speed.
3) Turn the mode select switch ON.
4) Check the position of the bar “A” in the left of C code
displayed on the LCD panel.
5) If the TP sensor adjustment is necessary, remove
the left side cover and loosen the TP sensor
mounting screw. Refer to “Front Side Exterior Parts
Removal and Installation in Section 9D (Page 9D-
6)”.
6) Slide the TP sensor (1) and bring the line to the
middle.
7) Tighten the TP sensor mounting screw.
Tightening torque
TP sensor mounting screw: 2 N·m (0.2 kgf-m,
1.5 lb-ft)
8) Turn the ignition switch OFF and disconnect the
mode select switch.
9) Reinstall the removed parts.
IAT Sensor Inspection
B831G21306009
Refer to “DTC “C21” (P0110-H/L): IAT Sensor Circuit
Malfunction in Section 1A (Page 1A-49)”.
IAT Sensor Removal and Installation
B831G21306010
Removal
1) Remove the seat. Refer to “Seat Removal and
Installation in Section 9D (Page 9D-11)”.
2) Remove the left side cover. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
3) Disconnect the coupler (1) and remove the IAT
sensor (2).
Installation
Install the IAT sensor in the reverse order of removal.
“B”: Incorrect position “D”: Incorrect position
“C”: Correct position
“A”
I831G1130007-01
1
I831G1130008-01
“C”
“B”
“D”
I831G1130016-01
1
2
I831G1130009-01
