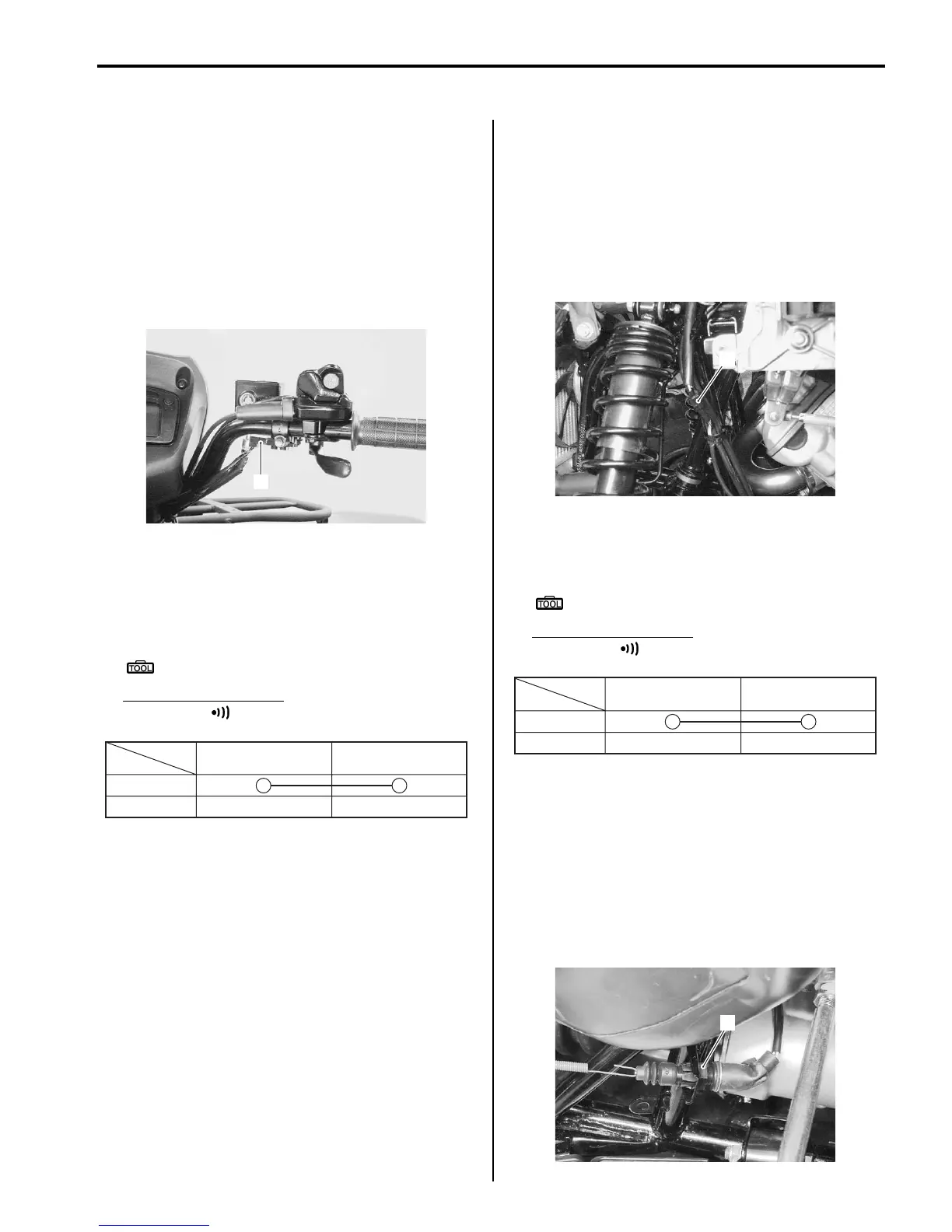

Brake Control System and Diagnosis: 4A-4
Repair Instructions
Brake Pedal Height Inspection and Adjustment
B831G24106001
Refer to “Rear Brake Pedal / Rear Brake (Parking Brake)
Lever Inspection and Adjustment in Section 0B
(Page 0B-19)”.
Front Brake Light Switch Inspection
B831G24106002
Inspect the front brake light switch in the following
procedures:
1) Disconnect the front brake light switch coupler (1).
2) Inspect the switch for continuity with a tester.
If any abnormality is found, replace the front brake
light switch with a new one. Refer to “Front Brake
Master Cylinder / Brake Lever Disassembly and
Assembly (Page 4A-11)”.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Continuity ( )
3) Connect the front brake light switch coupler.
Rear Brake Light Switch Inspection
B831G24106003
Inspect the rear brake light switch in the following
procedures:
1) Remove the left front inner fender. Refer to “Front
Side Exterior Parts Removal and Installation in
Section 9D (Page 9D-6)”.
2) Disconnect the rear brake light switch lead wire
coupler (1).
3) Inspect the switch for continuity with a tester.
If any abnormality is found, replace the rear brake
light switch with a new one.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Continuity ( )
4) Connect the rear brake light switch lead wire coupler
(1).
Rear Brake Switch Inspection and Adjustment
B831G24106004
Check the rear brake light switch so that the brake light
will come on just before pressure is felt when the brake
pedal is depressed. If the brake light switch adjustment
is necessary, turn the adjuster nut (1) in or out while
holding the brake pedal.
1
I831G1410002-01
Terminal (B) Terminal (B)
Color
Position
OFF
ON
I831G1410003-02
1
I831G1410034-01
Terminal (O) Terminal (W/B)
Color
Position
OFF
ON
I831G1410032-03
1
I831G1410005-01
