3D-14 Propeller Shafts:

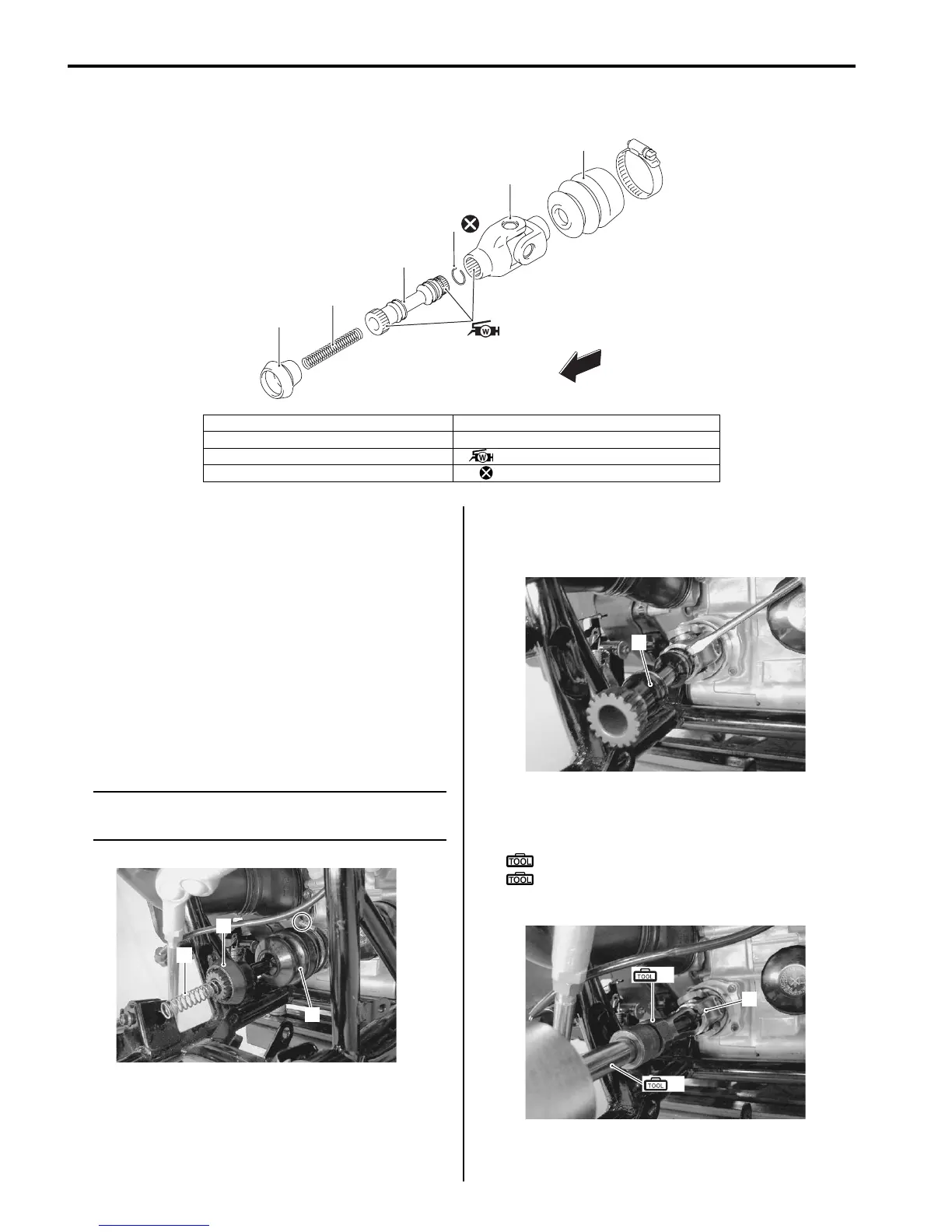

Front Propeller Shaft Components

B831G23406010

Front Propeller Shaft Removal and Installation

B831G23406011

Refer to “Front Propeller Shaft Components (Page 3D-

14)” and “Front Drive (Differential) Construction in

Section 3B (Page 3B-3)”.

Removal

Remove the front drive (differential) assembly.

Refer to “Front Drive (Differential) Assembly Removal

and Installation in Section 3B (Page 3B-4)”.

1) Remove the front propeller shaft spring (1) and front

propeller shaft boot (2).

2) Loosen the boot clamp screw and remove the

universal joint boot (3).

NOTE

Apply oil to the removing direction of the

universal joint boot before removing.

3) Using a (–) screwdriver or the like into a notch of the

universal joint and remove the front propeller shaft

(4).

4) Remove the universal joint (5) from the joint portion

(at the engine side) with special tools.

Special tool

(A): 09923–74511 (Bearing remover)

(B): 09930–30104 (Rotor remover slide

shaft)

FWD

I831G1340045-04

1. Boot 5. Universal joint

2. Front propeller shaft spring 6. Boot

3. Front propeller shaft : Apply water resistance grease.

4. Circlip : Do not reuse.

I831G1340046-01

I831G1340047-01

(A)

(B)

I831G1340048-01
