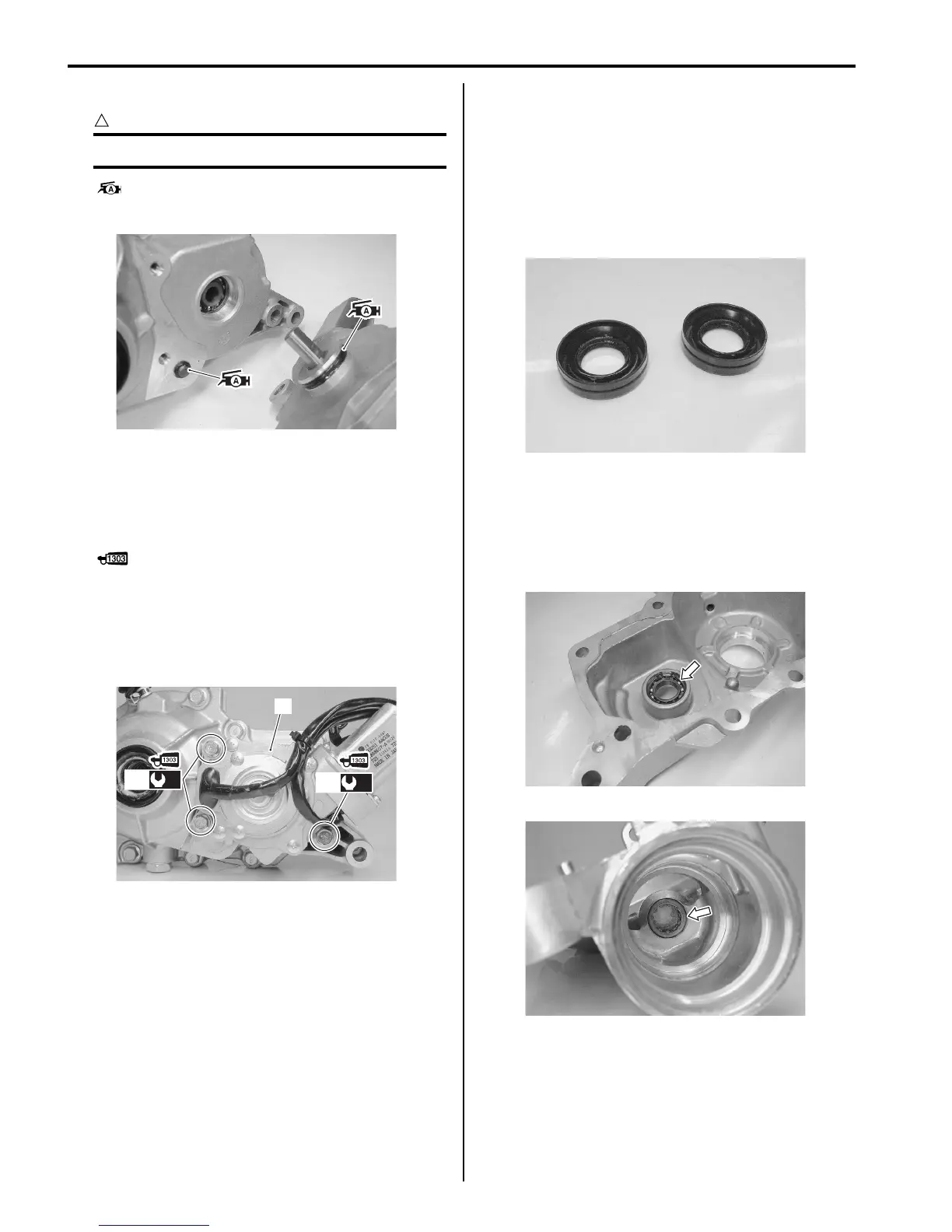

3B-12 Differential:
26) Apply grease to the O-rings.
CAUTION
!
Replace the O-rings with new ones.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
27) Apply a small quantity of thread lock to the 4WD/diff-
lock actuator mounting bolts (18).
28) Install the 2WD/4WD/diff-lock actuator assembly
(19) and tighten its mounting bolts (18) to the
specified torque.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
Tightening torque
4WD/Diff-lock actuator mounting bolt (b): 22
N·m (2.2 kgf-m, 16.0 lb-ft)
29) Check the backlash and tooth contact. Refer to
“Front Drive (Differential) Gear Shim Inspection and
Selection (Page 3B-14)”.
30) Install the Front drive (differential) assembly. Refer to
“Front Drive (Differential) Assembly Removal and
Installation (Page 3B-4)”.
Front Drive (Differential) Related Parts
Inspection
B831G23206007
Refer to “Front Drive (Differential) Assembly
Disassembly and Assembly (Page 3B-5)”.
Front Drive Gear Oil Seals
Inspect the lip of oil seal for wear or damage. If any
defect is found, replace the oil seal with a new one.
2WD/4WD Shifting Cam Bearing and Pinion Gear
Pilot Bearing
Inspect the bearings for abnormal noise and smooth
rotation. Replace the bearing if there is anything
unusual.
I831G1320044-01
19
(b)
18
(b)
18
I831G1320045-01
I831G1320047-01
I831G1320048-01
I831G1320049-01
