Differential: 3B-23
Final Gear Oil Level Inspection
B831G23206014
Refer to “Final Gear Oil Inspection in Section 0B
(Page 0B-14)”.
Final Gear Oil Replacement.
B831G23206015
Refer to “Final Gear Oil Inspection in Section 0B
(Page 0B-14)”.
Final Gear Assembly Removal and Installation
B831G23206016
Removal
1) Remove the trailer towing. Refer to “Trailer Towing
Removal and Instruction in Section 9E (Page 9E-7)”.
2) Remove the rear under cover. Refer to “Under Cover
Removal and Installation in Section 9D (Page 9D-
12)”.
3) Drain the final gear oil. Refer to “Final Gear Oil
Inspection in Section 0B (Page 0B-14)”.
4) Remove the rear wheel. Refer to “Front / Rear
Wheel Removal and Installation in Section 2D
(Page 2D-2)”.
5) Remove the rear suspension upper arms. Refer to
“Rear Suspension Arm Upper / Lower Removal and
Installation in Section 2C (Page 2C-8)”.
6) Remove the rear drive shaft. Refer to “Rear Drive
Shaft Assembly Removal and Installation in Section
3A (Page 3A-6)”.

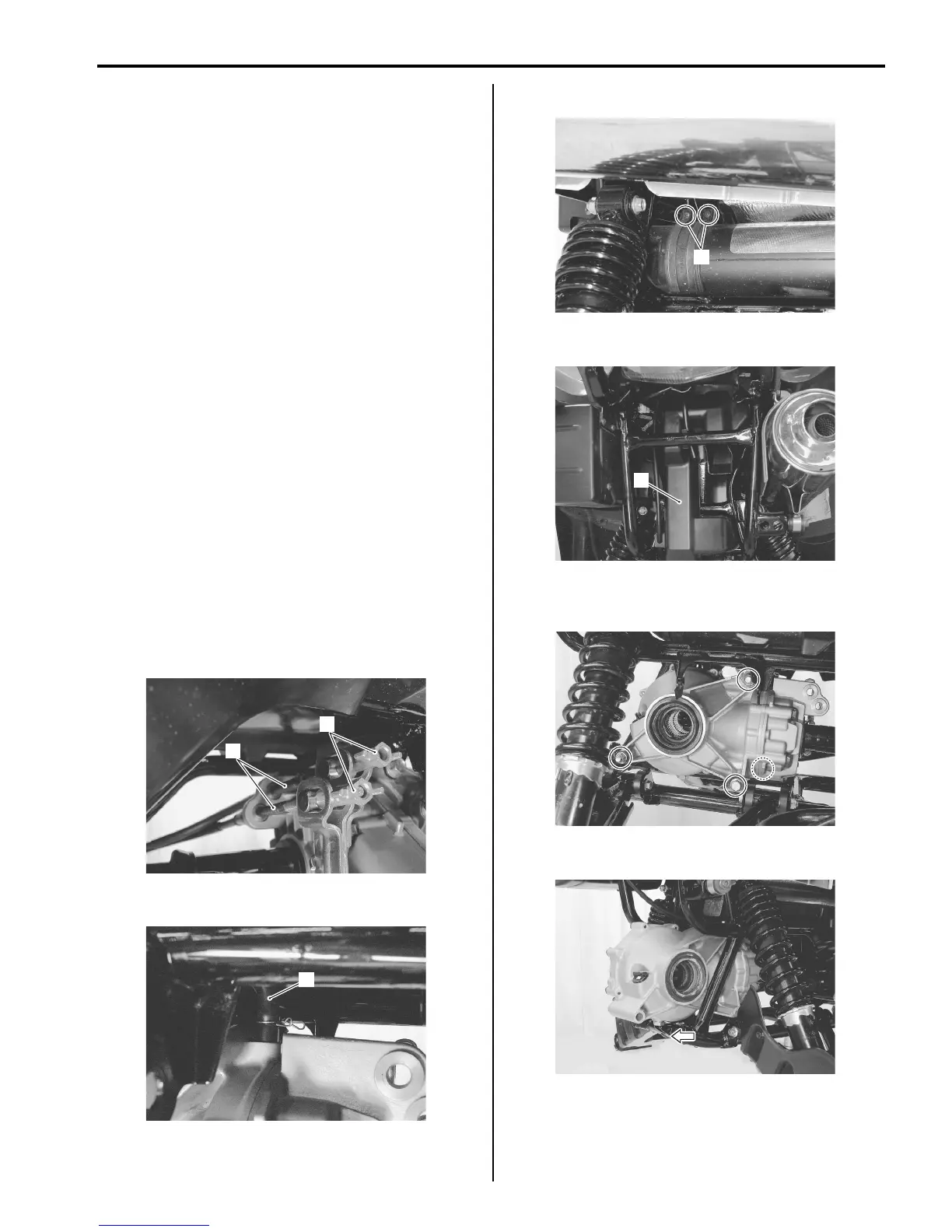

7) Remove the rear brake adjust nuts (1) and brake
cables (2).
8) Disconnect the breather hose (3).
9) Loosen the outlet pipe connecting screws (4).
10) Remove the V-belt outlet cooling duct (5).
11) Remove the final gear assembly mounting bolts and
nuts.
12) Remove the rear final gear assembly for backward.
2
1
I831G1320083-02
3
I831G1320084-03
4
I831G1320085-02
5
I831G1320086-03
I831G1320087-02
I831G1320088-01
