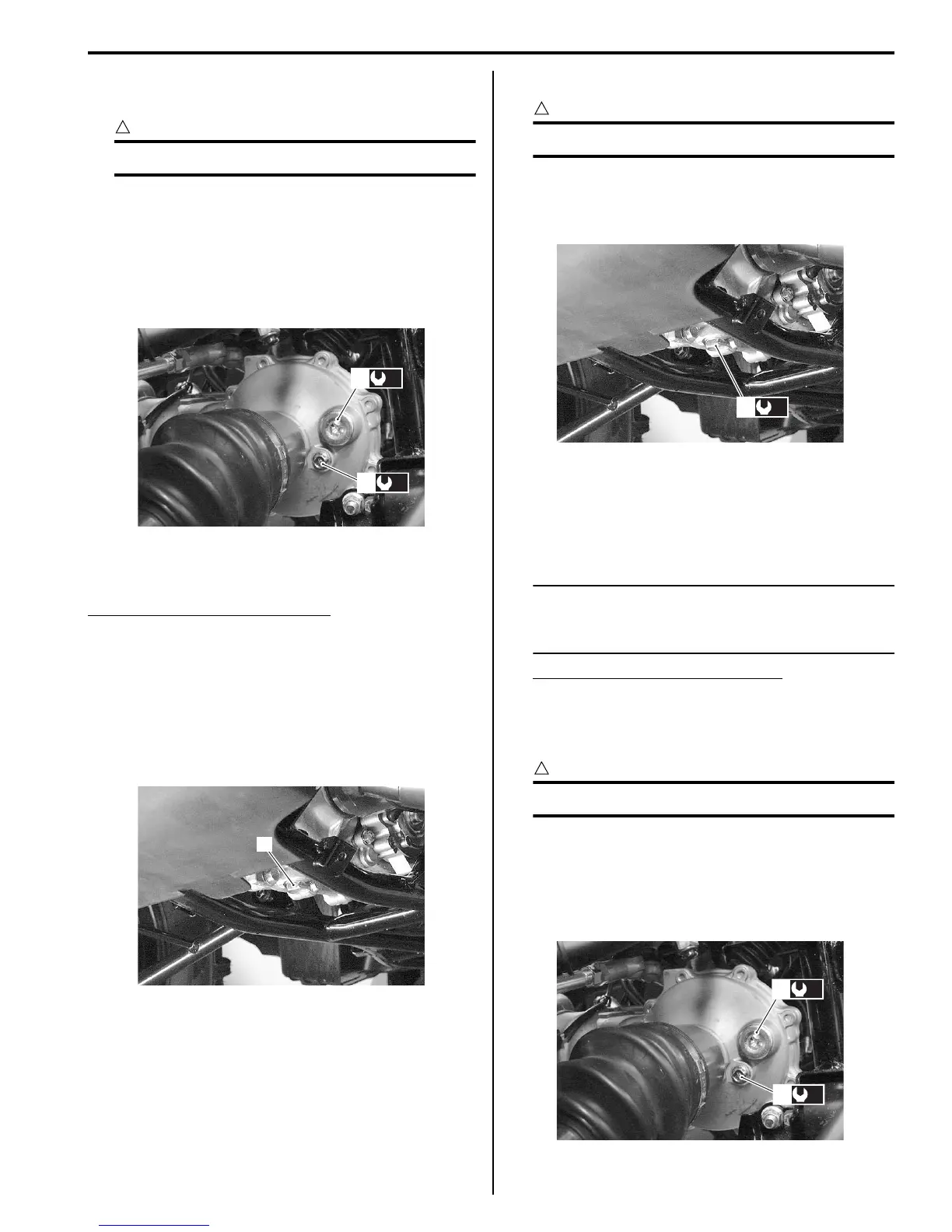

Maintenance and Lubrication: 0B-13
3) Tighten the oil level plug (1) and oil filler plug (2) to
the specified torque.
CAUTION
!
Replace the gasket washers with new ones.
Tightening torque
Front differential gear oil level plug (a): 8.5 N·m (
0.85 kgf-m, 6.0 lbf-ft)
Tightening torque
Front differential gear oil filler plug (b): 35 N·m (
3.5 kgf-m, 25.5 lbf-ft)
Front Differential Gear Oil Replacement
B931G20206010
Replace front differential gear oil
Every 2 years
1) Place the vehicle on level ground.
2) Remove the front under cover. Refer to “Under
Cover Removal and Installation in Section 9D
(Page 9D-12)”.
3) Drain the front differential gear oil by removing the oil
drain plug (1), oil filler plug and oil level plug.
4) Tighten the oil drain plug (1) to the specified torque.
CAUTION
!
Replace the gasket washers with a new one.
Tightening torque
Front differential gear oil drain plug (a): 32 N·m (
3.2 kgf-m, 23.0 lbf-ft)
5) Pour fresh oil through the oil filler hole until it
overflows from the oil level hole. When performing
an oil change, the front differential will hold about
500 ml (0.53 US qt, 0.44 Imp qt) of oil. Use hypoid
gear oil SAE #90, API grade GL-5.
NOTE
Use hypoid gear oil SAE #80, API grade GL-5,
if the vehicle is ridden where the ambient
temperature is below 0 °C (32 °F).
Front differential gear oil capacity
500 ml (0.53 US qt, 0.44 lmp qt)
6) Tighten the oil level plug (2) and oil filler plug (3) to
the specified torque.
CAUTION
!
Replace the gasket washers with new ones.
Tightening torque
Front differential gear oil level plug (b): 8 N·m (
0.8 kgf-m, 5.7 lbf-ft)
Front differential gear oil filler plug (c): 35 N·m (
3.5 kgf-m, 25.5 lbf-ft)
(b)
2
(a)
1
I831G1020037-01
1
I831G1020038-01
(a)
1
I831G1020081-01
(c)
3
(b)
2
I831G1020039-03
