Steering / Handlebar: 6B-2

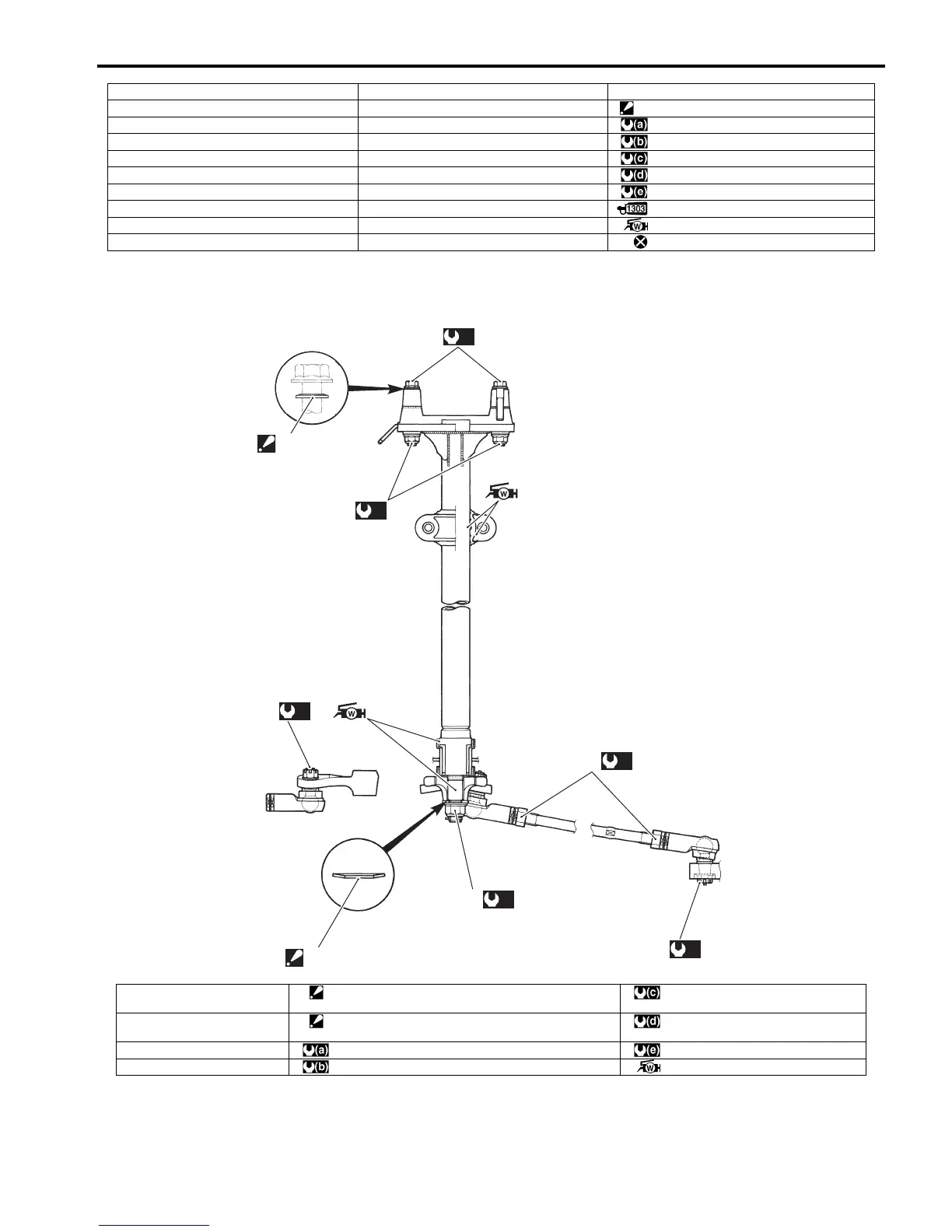

Steering / Handlebars Assembly Construction
B831G26206002
1. Handlebars 11. O-ring 21. Handle grip
2. Handlebar upper clamp 12. Washer “A”: Apply grip bond.
3. Handlebar clamp bolt 13. Steering shaft lower nut : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft)
4. Steering shaft 14. Cotter pin : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
5. Handlebar holder nut 15. Throttle cable : 162 N⋅m (16.2 kgf-m, 117.0 lb-ft)
6. Steering shaft holder 16. Parking brake cable : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
7. Steering shaft holder dust seal 17. Tie-rod end : 29 N⋅m (2.9 kgf-m, 21.0 lb-ft)
8. Steering shaft holder bolt 18. Tie-rod : Apply thread lock to the thread part.
9. Steering shaft bushing 19. Throttle case assembly : Apply water resistance grease.
10. Dust seal 20. Handlebar left switch assembly : Do not reuse.
(a)
(b)
1
(c)
2
5
6
(d)
3
(e)
4
(c)
2
I831G1620002-06
1. Handlebar holder nut 5. Washer
: The conical side of washer faces outside.
:29 N⋅m (2.9 kgf-m, 21.0 lb-ft)
2. Tie-rod end nut 6. Washer
: The conical side of washer faces outside.
:162 N⋅m (16.2 kgf-m, 117.0 lb-ft)
3. Steering lower nut : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft) : 45 N⋅m (4.5 kgf-m, 32.5 lb-ft)
4. Tie-rod nut : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft) : Apply water resistance grease.
