Brake Control System and Diagnosis: 4A-8
Rear Brake Cable Removal and Installation
B831G24106012

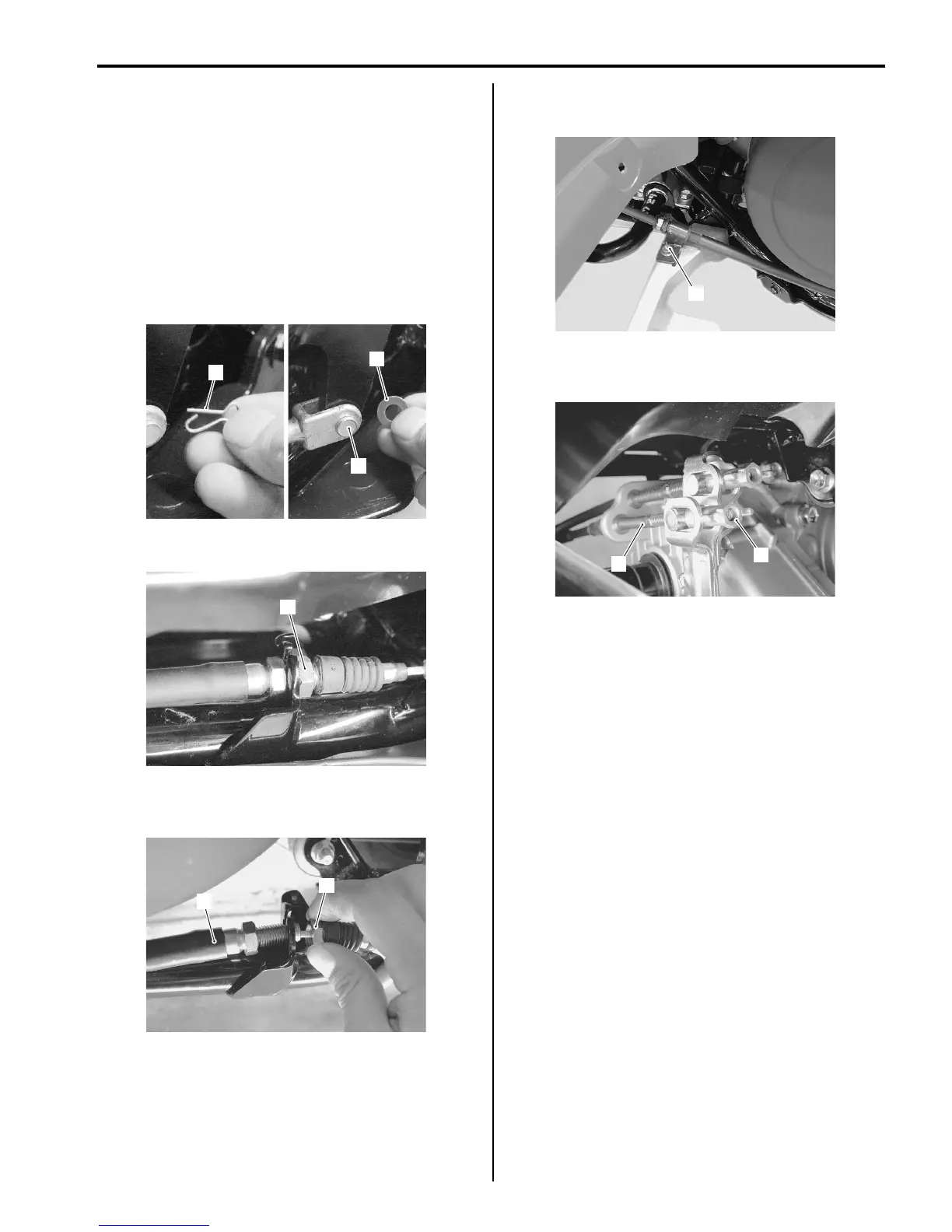

Removal
1) Remove the right inner fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
2) Remove the right mud guard. Refer to “Rear Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-9)”.
3) Remove the cotter pin (1), washer (2) and rear brake
cable pin (3).
4) Loosen the rear brake cable holder nut (4).
5) Remove the rear brake holder nut (4) and brake
cable (5).
6) Remove the rear brake cable bolt (7) from the right
footrest.
7) Remove the rear brake cable adjuster nut (7) and
cable (8).
Installation
1) Install the rear brake cable as shown in the rear
brake cable routing diagram. Refer to “Rear Blake
Cable Routing Diagram (Page 4A-2)”.
2) After installed rear brake cable, adjust the adjuster
nut. Refer to “Rear Brake Pedal / Rear Brake
(Parking Brake) Lever Inspection and Adjustment in
Section 0B (Page 0B-19)”.
3) Install the removed parts.
1
2
3
I831G1410016-02
4
I831G1410017-01
4
5
I831G1410033-04
6
I831G1410018-02
8
7
I831G1410037-03
