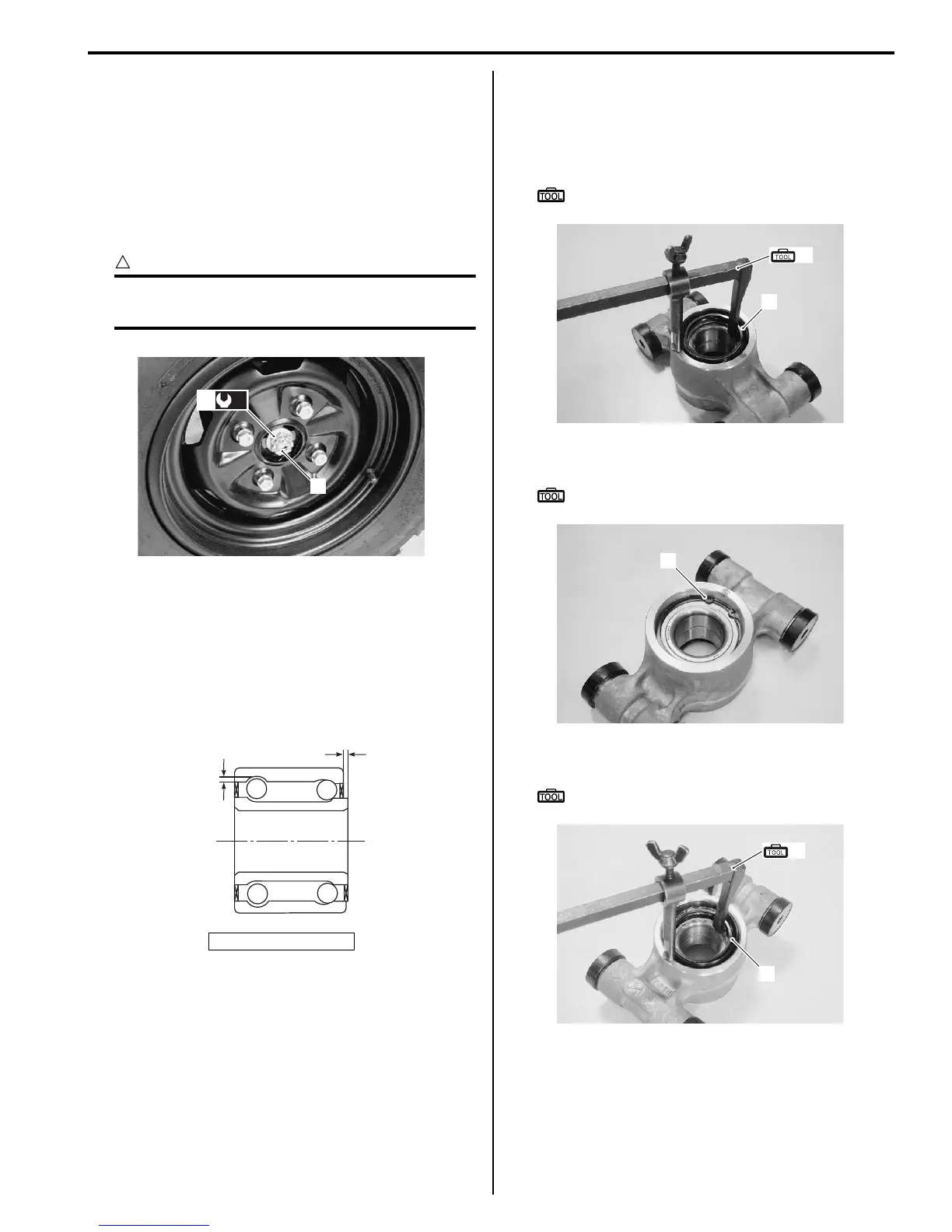

Rear Suspension: 2C-6
• Install the rear wheel assembly. Refer to “Front / Rear
Wheel Removal and Installation in Section 2D
(Page 2D-2)”.
• Tighten the hub nut (5) to the specified torque.
Tightening torque
Rear wheel hub nut (b): 121 N·m (12.1 kgf-m, 87.5
lbf-ft)
• Install the cotter pin (6).
CAUTION
!
The removed cotter pin (6) must be replaced
with a new one.
Rear Hub Bearing Inspection
B931G22306008
Inspect the inner race play of the rear hub bearing by
hand while it is in the rear knuckle.
Rotate the inner race by hand to inspect for abnormal
noise and smooth rotation. If there is anything unusual,
replace the rear hub bearing with a new one.
Rear Hub Bearing Removal and Installation
B931G22306009
Removal
1) Remove the outer dust seal (1) with the special tool.
Special tool
(A): 09913–50121 (Oil seal remover)
2) Remove the snap ring (2) with the special tool.
Special tool
: 09900–06108 (Snap ring pliers)
3) Remove the inner dust seal (3) with the special tool.
Special tool
(A): 09913–50121 (Oil seal remover)
“a”: Play
6
(b)
5
I831G1230014-01
“a”
“a”
I831G1220024-02
1
(A)
I831G1230016-01
2
I831G1230017-01
3
(A)
I831G1230018-01
